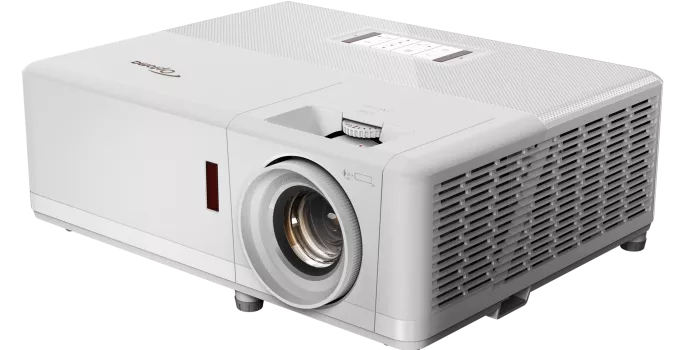

The Optoma ZW502 is a 3D-DLP projector offering 5000 ANSI lumens, a contrast of 300000:1 and a resolution of WXGA 1280 x 800. The laser technology ensures a specified light source lifespan of up to 20000 hours, covering an estimated 13.7 years based on a 4-hour daily runtime. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction. Precise setup distances can be determined in the Distance Calculator. Regarding projection size, the value of 5000 ANSI lumens allows for an image width of up to 718 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 479 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D. An additional 360° projection capability allows the device to be oriented at almost any angle. Thanks to MHL support, screen content from mobile devices can be transmitted via cable, including charging power for the device. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Equipped with a microphone jack and built-in speakers (15W), audio signals during presentations can be played back directly without an external audio system. This model dates back to 2019 and is no longer part of Optoma's current product range.
Display Type
1 x 0,65" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5000
Screen
2000 Lux (200 cm Screen width)
Contrast
300000:1
300000:1
Black Level
0,0167 min. Lumen
0,007 min. Lumen
Lens shift
Vert.: +64,4% --50%
Lens shift
14.4%
18cm
+
Projector 1 cm over screen top edge.
Resolution
WXGA 1280 x 800
1.024.000 Pixel UHD (4K2K) 3840 x 2160 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
1 x HDMI 1.4 in
1 x HDMI 2.0 mit MHL in
D-sub 15pin in und out
Cinch Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
Mikrofon in
12V Trigger out
Ceiling Mounting
Yes, is possible.
Power
277W / 210W in Eco Mode
Size WxHxD
336,8 x 121,9 x 266,7 mm (13,3"x4,8"x10,5") 10,81 L/dm³
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot High Dynamic Range (HDR) 360° installable 24/7 continuous operation capable Lan network compatible. Crestron®-Software compatible.
Real Full HD 3D
