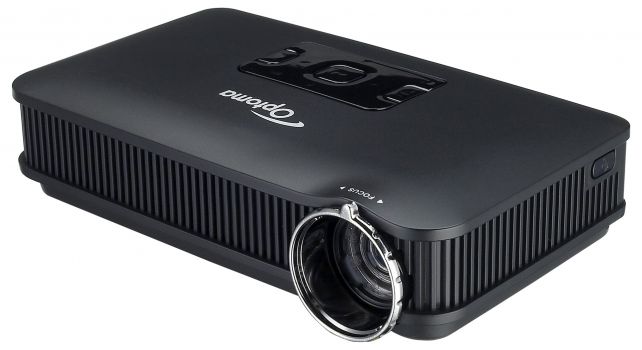

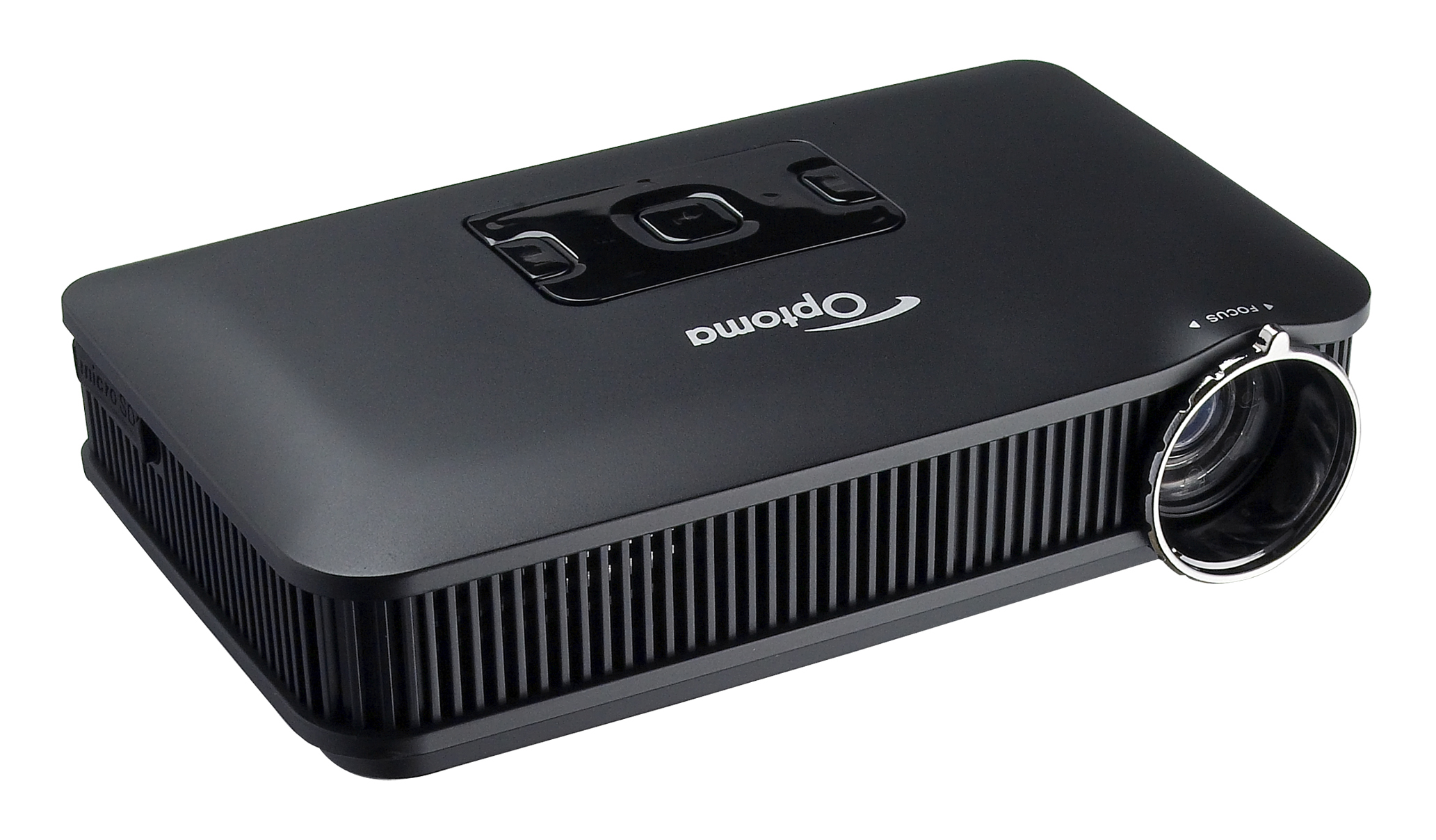

The hardware properties of the Pico PK301+ manufactured by Optoma include 100 ANSI lumens, a WVGA 854 x 480 resolution and a contrast value of 3000:1. Thanks to LED technology, the projector is rated for a lifespan of up to 20000 hours, which translates to 13.7 years with 4 hours of daily use. To reduce dependence on stationary power sources, the model is equipped with a built-in battery for autonomous operation. Regarding projection size, the value of 100 ANSI lumens allows for an image width of up to 102 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 68 cm. As an additional feature, an integrated media player enables the direct playback of files without an external source device. Since entering the market in 2012, production has been discontinued; the manufacturer no longer actively offers the model. As an archive device, the projector remains highly relevant in our database.
Display Type
1 x 0,3" DLP Chip WVGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
100
Screen
44 Lux (200 cm Screen width)
Contrast
3000:1 full on/off
3000:1 full on/off
Black Level
0,0333 min. Lumen
0,015 min. Lumen
Offset
-
Resolution
WVGA 854 x 480
409.920 Pixel
Video Modes
PAL, SECAM, NTSC, Media player formats: ppt, pptx avi, mov, mp4, 3gp Jpeg, bmp aac, mp3, pcm, adpcm, wma, ogg
Application
Game-Portabel | Battery projector | Very portable, small-screen projections. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
20000 h.
Operating Costs
0,00 € LED
The projection is too dark. The screen width should be reduced.
Lux:
44 Lux
Contrast:
3000:1
Candela pro m²:
14 cd/m²
Foot-Lamberts:
4 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
-
Audio
0,5W
Connections
HDMI in
D-sub 15 pin in
Mini Jack Audio in und out
Ceiling Mounting
-
Power
-
Size WxHxD
120,1 x 29,7 x 69,8 mm (4,7"x1,1"x2,7") 0,24 L/dm³
Integrated Mediaplayer
Optoma Website
Product Sheet english
