Based on DLP technology, the Optoma ZU506T projects images in a Standard-Portabel environment, with technical specs listing 5000 ANSI lumens, a contrast of 1800:1 and a HDTV 1920 x 1080 resolution. The laser technology ensures a specified light source lifespan of up to 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction. The amount of leeway the lens provides can be checked in the Projector Calculator. Looking at practical performance, up to 718 cm can be illuminated with 5000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 479 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. The projector was released in 2019 and is officially no longer distributed by Optoma.
Display Type
1 x 0,67" DMD Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5000
Screen
2222 Lux (200 cm Screen width)
Contrast
1800:1 full on/off
1800:1 full on/off
Black Level
2,7778 min. Lumen
1,236 min. Lumen
Lens shift
Vert.: +57% --49%
Lens shift
8%
9cm
+
Projector 1 cm under screen top edge
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).

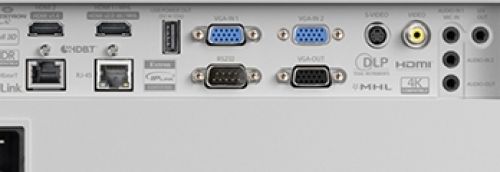

2 x HDMI in
D-sub 15pin 2x in und out
Cinch Video in
S-Video in
Mini Jack Audio in und out
Mic in
12V Trigger out
USB in
RS232C Din 9 pin in
RJ45 in
HDBaseT
Ceiling Mounting
Yes, is possible.
Power
353W / 321W in Eco Mode
Size WxHxD
373,4 x 116,8 x 302,3 mm (14,7"x4,6"x11,9") 13,07 L/dm³
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot 360° installable BrilliantColor™ PJLink™ Lan network compatible. Crestron®-Software compatible. -B Black -W White
Real Full HD 3D
