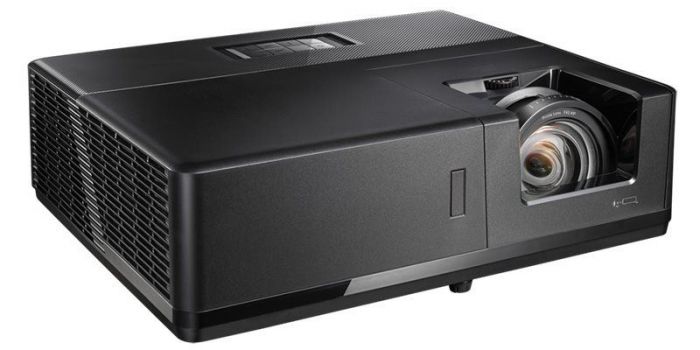

The Optoma ZH606TST-W is a 3D-BrilliantColor-DLP projector offering 6000 ANSI lumens, a contrast of 300000:1 and a resolution of HDTV 1920 x 1080. The laser technology ensures a specified light source lifespan of up to 20000 hours, covering an estimated 13.7 years based on a 4-hour daily runtime. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. Accurate distances are provided by the Lens Shift Calculator. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 158 cm. A look at the light output reveals: The 6000 ANSI lumens are sufficient to illuminate an image width of up to 787 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 525 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. Since entering the market in 2020, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65" DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
6000
Screen
2667 Lux (200 cm Screen width)
Contrast
300000:1
300000:1
Black Level
0,0200 min. Lumen
0,009 min. Lumen
Lens shift
Vert.: +77% --56%
Lens shift
21%
24cm
+
Projector 7 cm over screen top edge.
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K+2K) 4096 x 2160 compressed
Calculated brightness quality The screen width may also be larger. Perfect
158 cm (no Zoom)
Lux:
2667 Lux
Contrast:
300000:1
Candela pro m²:
850 cd/m²
Foot-Lamberts:
248 fL
87 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,5 f=11,6mm
Throw Ratio
0,79:1
Audio
2 x10W
Connections
1 x HDMI 1.4a 3D Support
1 x HDMI 1.4a 3D Support + MHL
D-Sub 15 pin 2x in und out
1 x Composite video
1 x Mic 3.5mm
1 x Audio 3.5mm in und out
1 x HDBaseT
1 x S-Video
1 x RS232
1 x 12V Trigger
1 x RJ45
Full HD 1080P compatible
