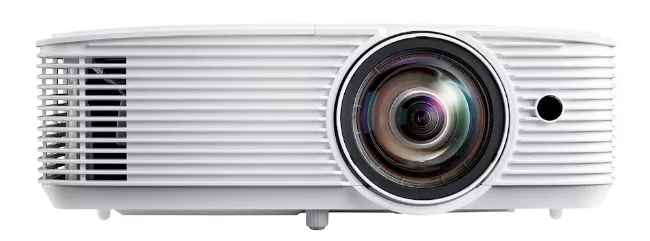

The equipment of the Optoma GT500XR projector includes 4000 ANSI lumens, a contrast of 25000:1 with a XGA 1024 x 768 display. In operating mode, the installed projector lamp offers a lifespan of 6000 hours. A daily usage of 2 hours makes an operational lifespan of 8.2 years possible. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 123 cm. A look at the light output reveals: The 4000 ANSI lumens are sufficient to illuminate an image width of up to 551 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 367 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. Regarding noise emissions, the model proves to be exceptionally quiet during operation, producing just 28 decibels.
Display Type
1 x DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
4000
Screen
1333 Lux (200 cm Screen width)
Contrast
25000:1
25000:1
Black Level
0,1600 min. Lumen
0,053 min. Lumen
Offset
65% 23 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel HDTV 1920 x 1080 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p, PC compatibility FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac 2D compatibility NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) 3D compatibility Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 3D Full 3D
Disc Recognition
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | 4K UHD Blu-ray
3D Compatibility
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom |
Application
Short Distance | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
203W Lampe
Light Life
6000 h. / 15000 h. in Eco+ Mode
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
123 cm (no Zoom)
Lux:
1333 Lux
Contrast:
25000:1
Candela pro m²:
425 cd/m²
Foot-Lamberts:
124 fL
98 cm
•
Focus
Manual
Zoom
No Zoom
Objective
f=7,15mm
Throw Ratio
0,617:1
Audio
1 x 10W
Connections
HDMI in
D-sub 15pin in und out
S-Video
Mini Jack Audio in und out
USB-A in
RS232C Din 9 pin in
Real Full HD 3D
