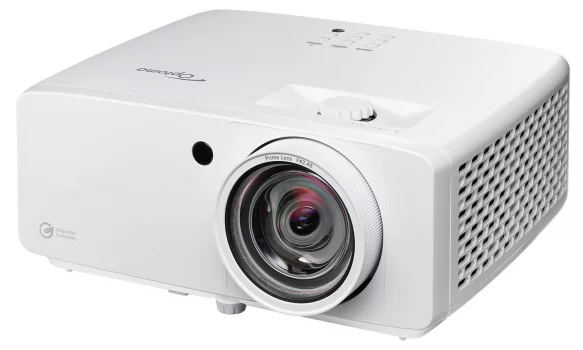

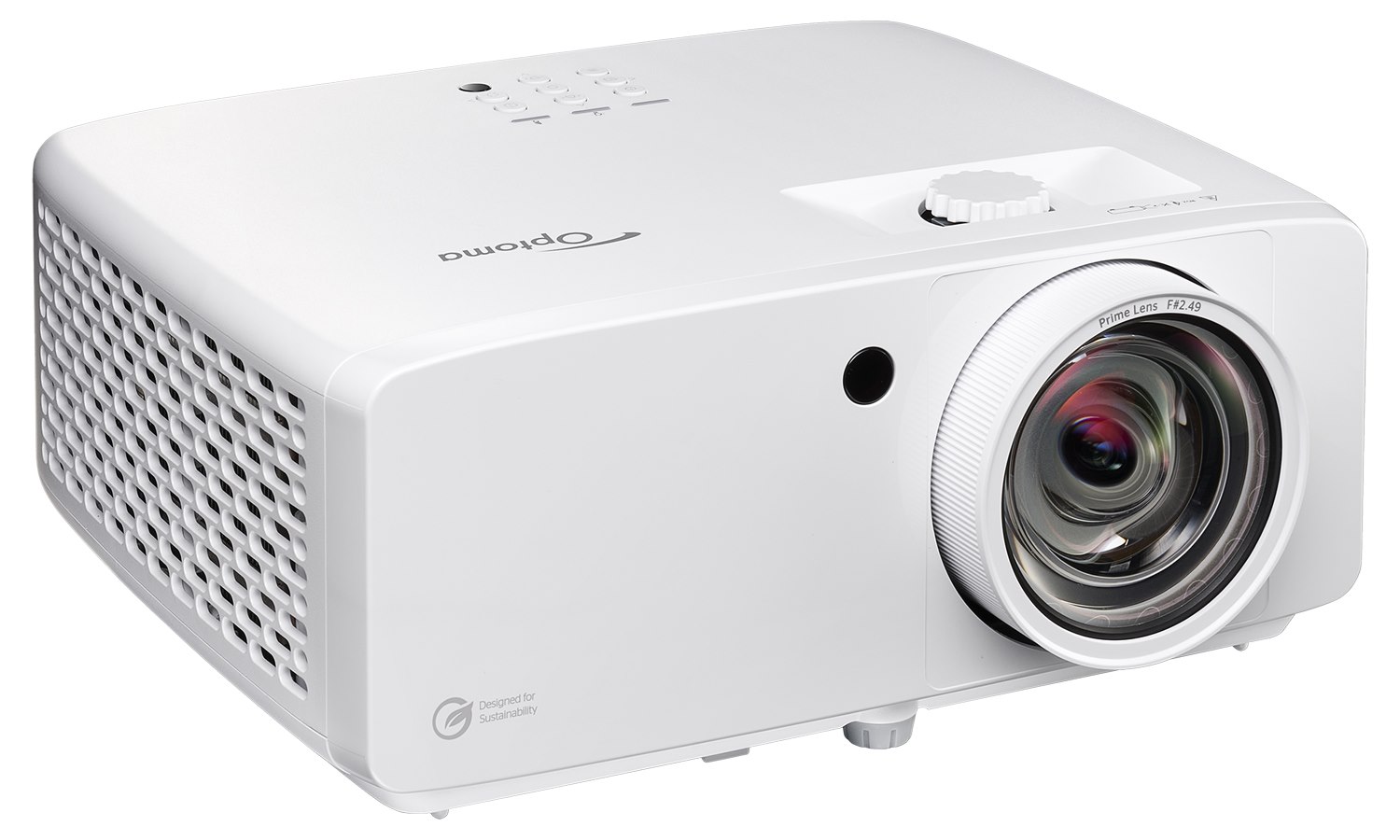

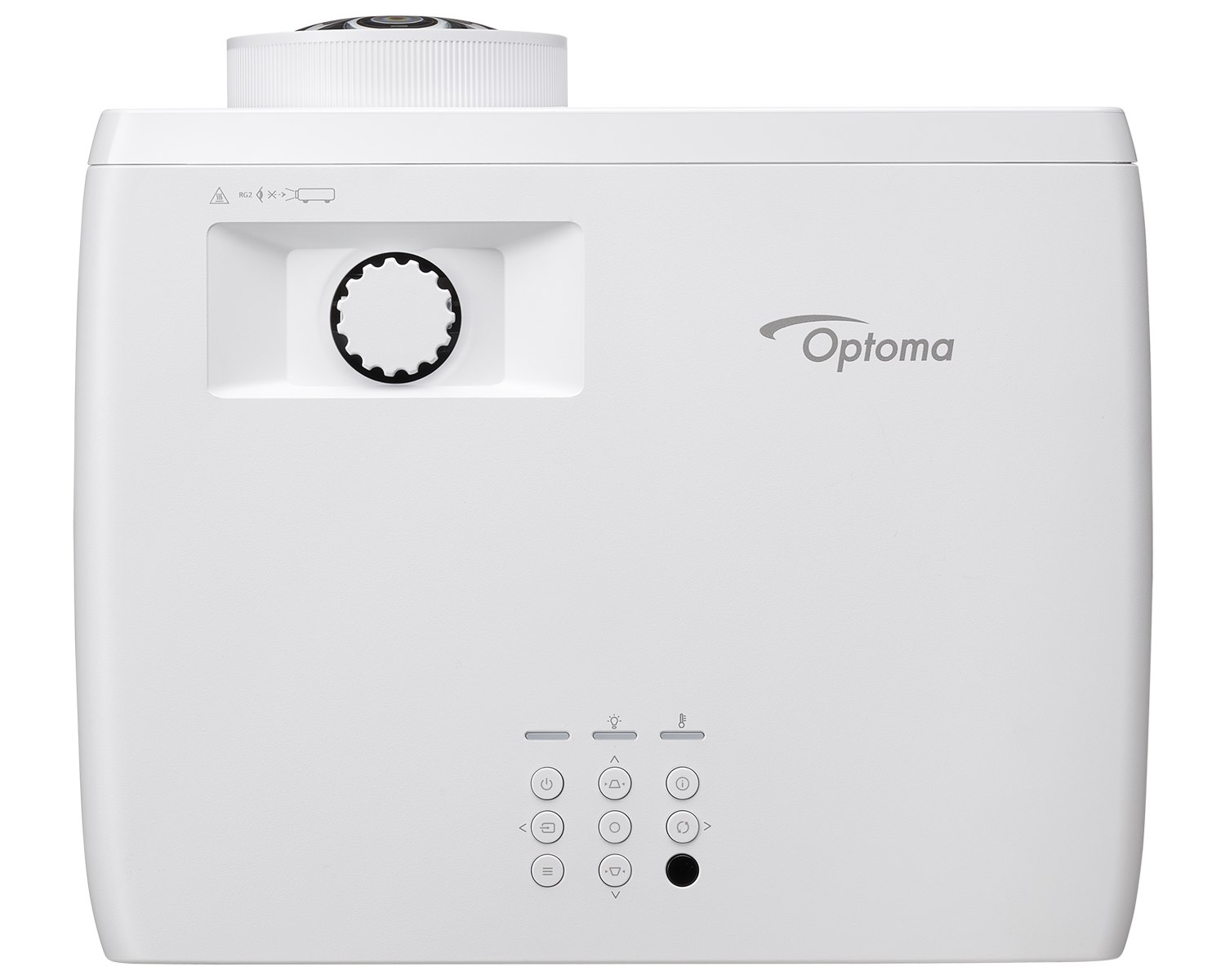

As a projector for the Standard-Portabel sector, the Optoma ZH521ST is equipped with 5300 ANSI lumens, a HDTV 1920 x 1080 resolution and a contrast of 300000:1. The laser technology ensures a specified light source lifespan of up to 30000 hours, which translates to 20.5 years with 4 hours of daily use. Should a perpendicular setup to the screen not be possible, the integrated keystone correction (horizontal and vertical) helps to realign the image into a perfect rectangle. Looking at practical performance, up to 675 cm can be illuminated with 5300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 450 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Thanks to support for optional Miracast and Airplay, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen.
Display Type
1 x DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5300
Screen
2356 Lux (200 cm Screen width)
Contrast
300000:1
300000:1
Black Level
0,0177 min. Lumen
0,008 min. Lumen
Offset
53% 3 cm over screen top edge →
SCREEN
+Projector
Resolution
HDTV 1920 x 1080
2.073.600 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p, PC compatibility VGA,SVGA,XGA,720p,WXGA,SXGA,SXGA+,UXGA,1080p,WUXGA 2D compatibility NTSC,PAL,SECAM,SDTV,HDTV,UHD 3D compatibility Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz
3D Compatibility
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom |
Application
Standard-Portabel | Gaming | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
Laser
Light Life
30000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
158 cm (no Zoom)
Lux:
2356 Lux
Contrast:
300000:1
Candela pro m²:
750 cd/m²
Foot-Lamberts:
219 fL
60 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,49 f=11,6mm
Throw Ratio
0,79:1
Audio
1 x 15W
Connections
2x HDMI 2.0 in
D-sub 15pin in
3D Sync Out
Mini Jack Audio in und out
2x USB-A (1.5A) in
RS232C Din 9 pin in
RJ45 in
12V Trigger
Real Full HD 3D Full HD 1080P compatible Eco Mode Automatic and manual vertical keystone correction Kensington Slot 360° installable 24/7 continuous operation capable Password protection Optional Wi-Fi network compatible. Lan network compatible. Short-throw projector Optoma Smart Control App Golf Sim Picture Mode (GSPro Mode) Auto Screen Fit Auto Obstacle Avoidance Auto 4P Keystone Optoma Management Suite (OMS?) OTA Firmware Updates Game Mode Input Latency: 32 ms @ WXGA
Real Full HD 3D
