Brief Introduction
Beta 2.5 |

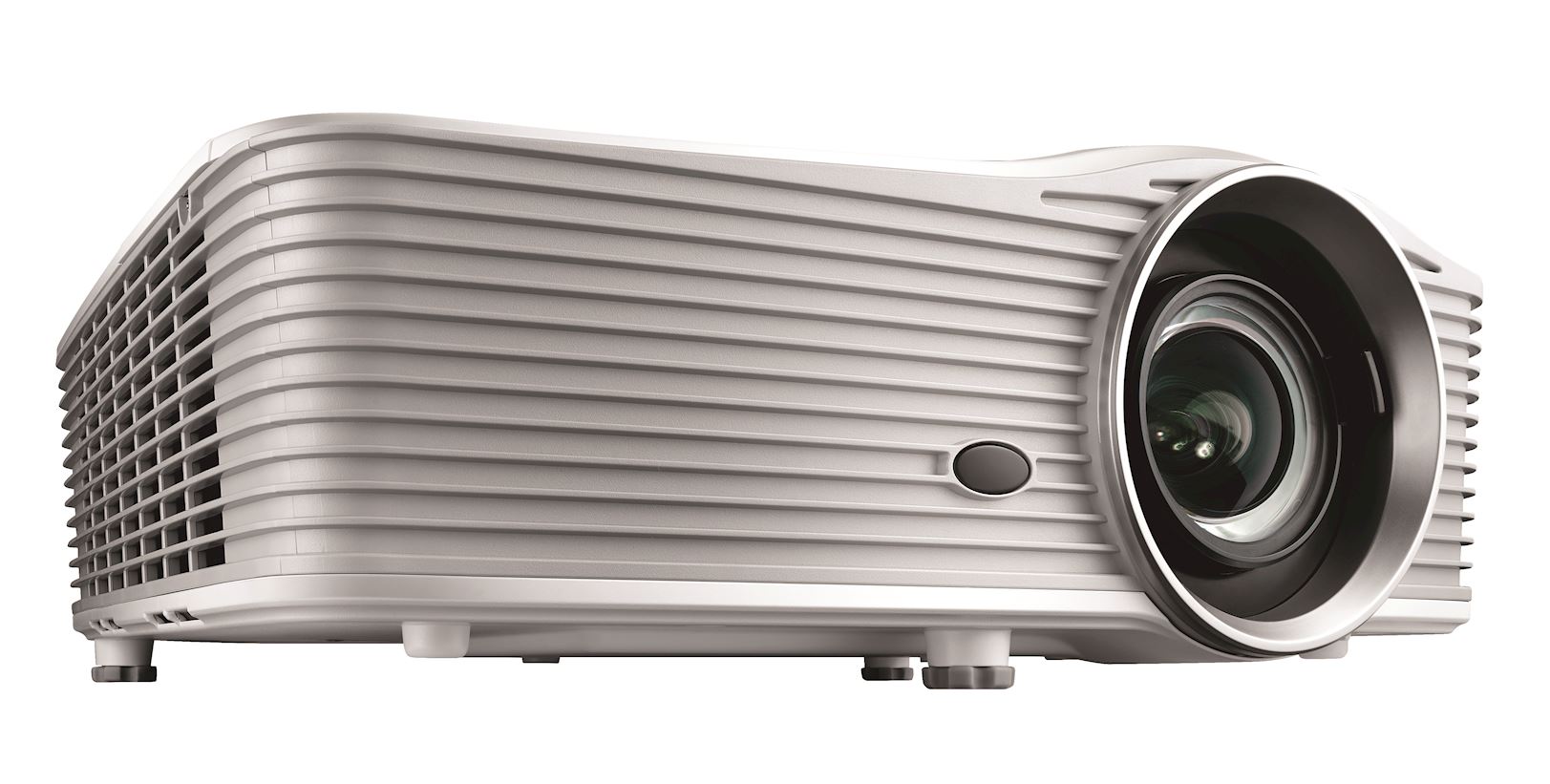

The WU515ST 3D DLP has 5500 Ansi lumens, a contrast of 10000:1 and a WUXGA 1920 x 1200 resolution. The projector also offers a lens shift function that makes image adjustment childs play. The model offers a microphone jack plug and 10W speakers, so no additional audio devices are required for presentations or training courses. 753 cm picture width, the projector will be able to illuminate well. Rooms with residual light can be created by the projector with a smaller image width, we would recommend a maximum of 502 cm here. A smartphone with MHL connection can be connected directly to the MHL/HDMI port and transmit a 1080p / 60 Hz image mirroring (screen mirroring) while the smartphone is being charged at the same time. The model is also Full HD 1080P and 3D compatible. This model is no longer offered by Optoma.
|
| Display Type |
1 x 0,67" Chip DLP
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5500 |
Screen |
2444 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,5500 min. Lumen |
0,244 min. Lumen |
| Lens shift |
Vert.: +70% --50% Hori.: +/-10%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
365W Lamp
Article Nr.: SP.72109GC01
|
|
| Light Life |
3000 h. 5000 h. in Eco Mode |
| Operating Costs |
-
|
|
158 cm (no Zoom)
|
 |
|
Lux: |
2444 Lux |
|
Room light max.: |
489 Lux |
|
Candela pro m²: |
778 cd/m² |
|
Foot-Lamberts: |
227 fL |
|
 |
| 79 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom 1,8 |
| Objective |
- |
| Throw Ratio |
0,79:1 |
| Audio |
2 x 10W |
| Connections |
2 x HDMI mit MHL in
D-sub 15pin in out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 mit HDBaseT in
Mikrofon in
3D Sync
Display Port
12V Reigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
365 / 292W in Eco Mode |
| Size WxHxD |
424 x 160 x 344 mm (16,7"x6,3"x13,5") 23,34 L/dm³
|
| Operating Noise |
28 dB in Eco Mode |
Key: 91 cm
Shift: 79 cm |
Key: 91 cm
Shift: 20 cm |
| Key: 91 cm
Shift: 20 cm |
| |
|
|
| Weight |
6,10 kg / 13,23 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15,3-91,14 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
227 fL
/ max. 753 cm screen width |
| Candela m² |
778 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
Password protection
PJLink™
Optional Wi-Fi network compatible.
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
Geometric correction - 4 corners
DICOM simulation
|
|
über HDMI MHL |
In Comparison
The Optoma WU515ST compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
68 |
Weight: |
|
71 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
98 |
Power cons.: |
|
96 |
| Picture Total Points: | 56 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3889 (From: 7662) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2023-09-20
