Brief Introduction
Beta 2.5 |

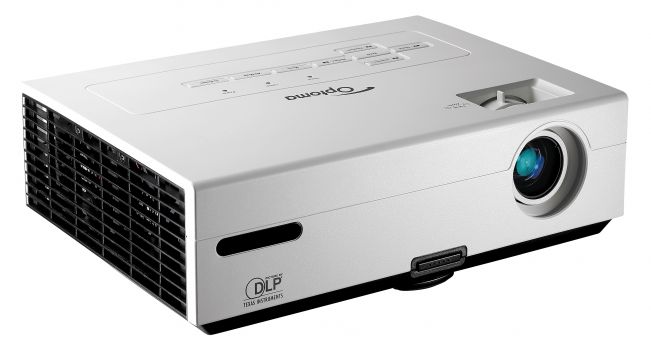

With the EX530, manufacturer Optoma offers a standard portable DLP projector with XGA 1024 x 768 resolution and a contrast of 2500:1. 2600 Ansi lumens ensure that an image width of 444 cm is also possible. However, if there is room light, the picture should be a maximum of 296 cm wide. Furthermore, the projector can play 1080P without any problems. With only 30 decibels of operating noise, the model is very quiet compared to others. The projector was launched in 2008 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,55" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2600 |
Screen |
867 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
1,0400 min. Lumen |
0,347 min. Lumen |
| Offset |
61,5% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA+ 1400 x 1050 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
-
Article Nr.: BL-FP180C / DE.5811100256.S
|
|
| Light Life |
3000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
386 - 432 cm
|
 |
|
Lux: |
867 Lux |
|
Room light max.: |
173 Lux |
|
Candela pro m²: |
278 cd/m² |
|
Foot-Lamberts: |
81 fL |
|
 |
| 92 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,52-2,73 f=21,8-24 mm |
| Throw Ratio |
1,93-2,16:1 show |
| Audio |
1W Mono |
| Connections |
D-sub 15pin in
S-Video in
Cinch Video in
Cinch Stereo in
RS232C Din 9pin in
USB Maus |
| Ceiling Mounting |
- |
| Power |
230W / |
| Size WxHxD |
280 x 80 x 205 mm (11"x3,1"x8,1") 4,59 L/dm³
|
| Operating Noise |
30dB |
|
| Weight |
2,50 kg / 5,51 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,30-91,4 kHz
V-sync: 43-87 Hz
|
| Foot-Lamberts |
81 fL
/ max. 444 cm screen width |
| Candela m² |
278 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
User logo
Eco Mode
Kensington Slot
sRGB
Digital image shift
Password protection
Remote control with laser pointer und mouse control
Overscan adjustable
|
|
- |
In Comparison
The Optoma EX530 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
31 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
49 |
| Black level: |
|
96 |
Power cons.: |
|
98 |
| Picture Total Points: | 43 |
Projector Total Points: | 78 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
1709 (From: 7662) |
|
|
|
|
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2023-08-04
|
