Brief Introduction
Beta 2.5 |

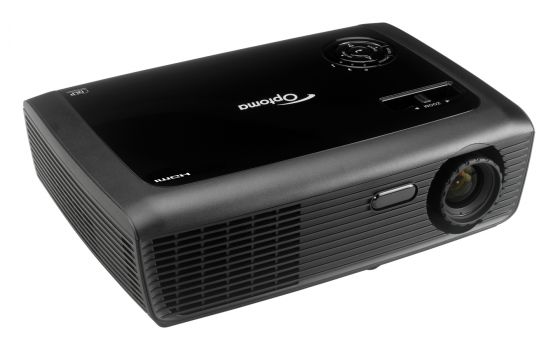

A brief introduction to the Optoma H180X. The standard portable DLP projector has a WXGA 1280 x 800 resolution and a contrast of 18000:1. The lamp in the projector is specified with a lamp life of 6500 hours, which is over 8.9 years if enjoyed for two hours a day. Due to the brightness of 3000 Ansi lumens, a picture width of 556 cm is possible. In room light, the picture should be max. 371 cm wide. The projector can also play 1080P and 3D without any problems. The operating noise of just 28 decibels makes the projection quiet. The model was built by Optoma in 2013 and is no longer current.
|
| Display Type |
1 x 0,65" DC3 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1200 Lux (200 cm Screen width) |
| Contrast |
18000:1 full on/off |
18000:1 full on/off
|
| Black Level |
0,1667 min. Lumen |
0,067 min. Lumen |
| Offset |
62,5% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
-

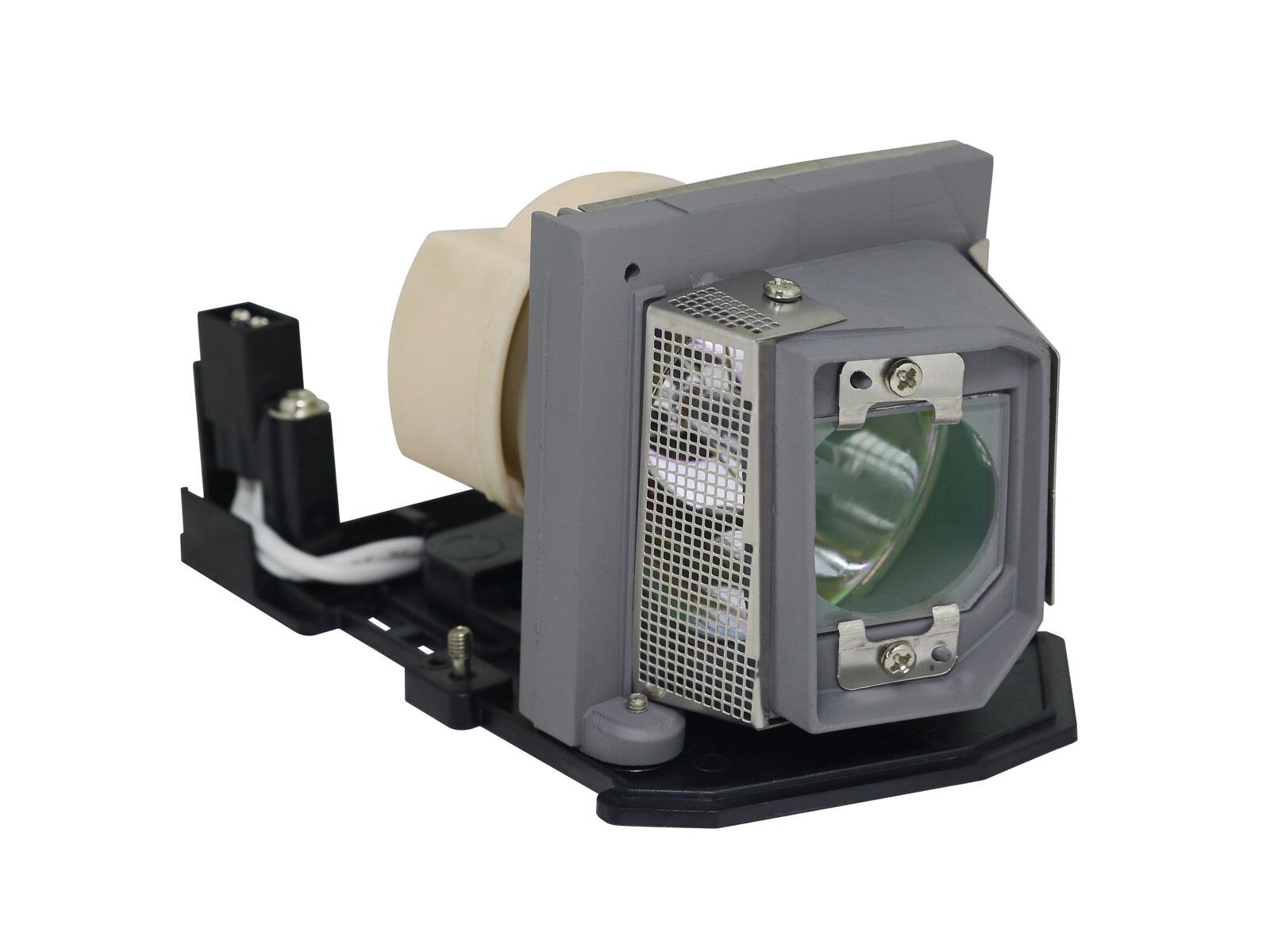

Article Nr.: SP.8VF01GC01 / BL-FP190B
|
|
| Light Life |
6500 h. |
| Operating Costs |
-
|
|
310 - 340 cm
|
 |
|
Lux: |
1200 Lux |
|
Room light max.: |
240 Lux |
|
Candela pro m²: |
380 cd/m² |
|
Foot-Lamberts: |
111 fL |
|
 |
| 78 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,5-2,67 f=21,8-23,98 mm |
| Throw Ratio |
1,55-1,7:1 show |
| Audio |
1 x 2W |
| Connections |
HDMI 1.4 in
D-sub 15 pin in
S-Video in
Cinch Video in
Mini Jack Audio in und out
RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
233 / 207W in Eco Mode |
| Size WxHxD |
286 x 84 x 192 mm (11,3"x3,3"x7,6") 4,61 L/dm³
|
| Operating Noise |
28dB |
|
| Weight |
2,20 kg / 4,85 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
80% |
| Frequenz |
H-sync: 153,9-91,1 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
111 fL
/ max. 556 cm screen width |
| Candela m² |
380 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Password protection
BrilliantColor™
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma H180X compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
54 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 45 |
Projector Total Points: | 81 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
3067 (From: 7662) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-08-04
