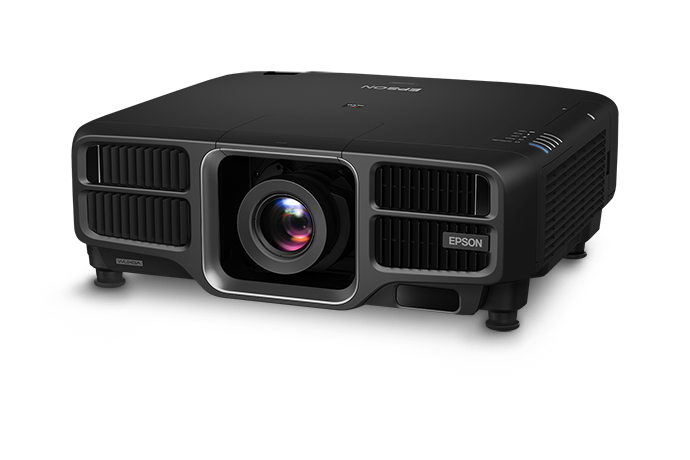

Known as the Pro L1505UHNL, this Laser-LCD projector by Epson USA features basic specs of 12000 ANSI lumens, a contrast of 2500000:1 at a WUXGA 1920 x 1200 resolution. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible. Should a perpendicular setup to the screen not be possible, the integrated keystone correction (horizontal and vertical) helps to realign the image into a perfect rectangle. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Projection Calculator. A look at the light output reveals: The 12000 ANSI lumens are sufficient to illuminate an image width of up to 1113 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 742 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K, and also offers the technical capability for 360° projection. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. Since entering the market in 2019, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x 1,03" LCD TFT Panel mit c2 Fine WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
12000
Screen
5333 Lux (200 cm Screen width)
Contrast
2500000:1
2500000:1
Black Level
0,0048 min. Lumen
0,002 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel HD4K 4096 x 2160 compressed
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
5333 Lux
Contrast:
2500000:1
Candela pro m²:
1696 cd/m²
Foot-Lamberts:
495 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
HDMI mit HDCP 2.2 in
DVI-D in
D-sub 15pin in und out
5 x BNC RGBHV in
Mini Jack Audio in und out
SDI 3G in
RS232C Din 9 pin in
RJ45 in
RJ45 mit HDBaseT in
Full HD 1080P compatible
