Epson USA Pro Cinema LS9000


V11HC13120

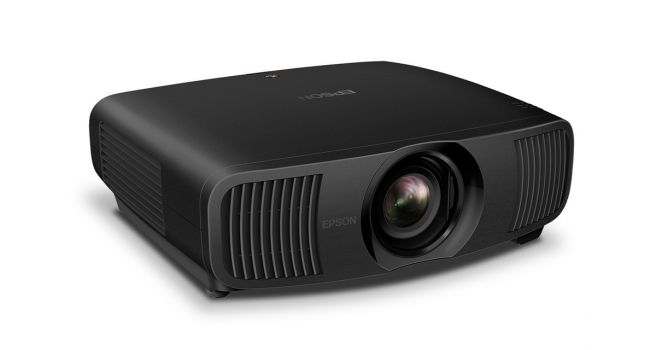

Image Epson USA Pro Cinema LS9000
Customer review
Offer Ads
Discover the projector on Amazon. Now!
Model Overview Based on LCD technology, the Epson USA Pro Cinema LS9000 projects images in a Stationary environment, with technical specs listing 2200 ANSI lumens, a contrast of 1800:1 and a UHD (4K2K) 3840 x 2160 resolution.
Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment; exact values can be calculated using the Lens Shift Calculator.
A look at the light output reveals: The 2200 ANSI lumens are sufficient to illuminate an image width of up to 477 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 318 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
A look at the data sheet confirms a very subtle fan noise for the projector at just 30 decibels.
Display Type       3 x 0,74" LCD TFT Panel
      HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
2200
Screen
978 Lux (200 cm Screen width)
Contrast 1800:1 (Native) 1800:1 (Native)
Black Level 1,2222 min. Lumen 0,544 min. Lumen
Lens shift Vert.: +/-96,3% Hori.: +/-24%
 Lens shift
96.3%  108cm
96.3%  108cm
24%  48cm
24%  48cm
+ Projector
Resolution UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source Laser
Article Nr.: ELPAF62 / V13H134AB0
Order Accessories
60,17 €
Light Life -
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
270 - 568 cm
Lux: 978 Lux
Contrast: 1800:1
Candela pro m²: 312 cd/m²
Foot-Lamberts: 91 fL
108 cm



Screen width:cm
          Room:
Focus Powered
Zoom Powered x2,1
Objective F=2,0-3,0 f=22,5-46,7 mm
Throw Ratio 1,35-2,84:1 show
Audio Nein

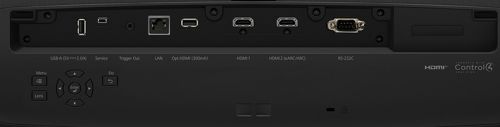

Connections 2x HDMI 2.1 (1xeARC) in
USB-A in
USB-B Mini in (Service)
RS232C Din 9 pin in
RJ45 in
12V Trigger out
Ceiling Mounting Yes, is possible.
Power 302 / 198W in Eco Mode
Size WxHxD 520 x 193 x 447 mm (20,5"x7,6"x17,6") 44,86 L/dm³
Operating Noise 30 / 22 dB in Eco Mode
Key: 156 cm
Shift: 108 cm
Key: 156 cm
Shift: 48 cm
Key: 156 cm
Shift: 48 cm
Key: 156 cm
Shift: 108 cm

Weight 12,70 kg / 26,46 lbs.
Keystone Vert.: +/-30°
Hori.: +/-30°
Illumination -
Frequenz H-sync: 384-480 kHz
Foot-Lamberts 91 fL / max. 477 cm screen width
Candela m² 312 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
High Dynamic Range (HDR)
Lan network compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Epson USA Pro Cinema LS9000 compared to others current "Stationary" projectors.
Ansi-Lumen:
20 Weight:
93
Contrast:
1 dB:
74
Black level:
91 Power cons.:
90
Picture Total Points:37 Projector Total Points:86
Popularity Top 100
15 popularity points 26 popularity points 12 popularity points 9 popularity points 14 popularity points 12 popularity points
Points:
12
Ranking: 166 (From: 254)
Optional accessories
air filter OriginalELPAF62 / V13H134AB060,17 €
remote control Original221434558,61 €
ceiling bracket white Halterung45W83,60 €
Status 2025 Current model // Last update of the data: 2026-06-09
Created:
Data
Epson USA Website
Product Sheet english
Product Sheet english HC
Quick Start Guide
User Manual english (3.96 MB)
