Brief Introduction
Beta 2.5 |
The stationary Christie DS+405 BrilliantColor DLP projector has 4100 Ansi lumens, a contrast of 7500:1 and an SXGA+ 1400 x 1050 resolution. The integrated lens shift gives freedom when positioning the projector. The projector can illuminate images up to 558 cm wide thanks to the 4100 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 372 cm. The projector can also play 1080P without any problems. The projector was launched in 2007 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,95" LVDS DC3 DLP Chip
SXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4100 |
Screen |
1367 Lux (200 cm Screen width) |
| Contrast |
7500:1 full on/off |
7500:1 full on/off
|
| Black Level |
0,5467 min. Lumen |
0,182 min. Lumen |
| Lens shift |
Vert.: +/-55% Hori.: +/-45%
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
300W UHP Lamp
|
|
| Light Life |
1700 h. 6000 h. in Eco Mode |
| Operating Costs |
-
|
|
340 - 500 cm
|
 |
|
Lux: |
1367 Lux |
|
Room light max.: |
273 Lux |
|
Candela pro m²: |
435 cd/m² |
|
Foot-Lamberts: |
127 fL |
|
 |
| 83 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,25 |
| Objective |
F=2,1-6,5 f=34,1-42,7 mm |
| Throw Ratio |
1,7-2,5:1 show |
| Audio |
Nein |
| Connections |
DVI-D mit HDCP in
5 x BNC RGBHV in
YUV in
Cinch Video in
RJ45 in
RS232C Din 9pin in
USB in
12V Trigger |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1050W |
| Size WxHxD |
510 x 223 x 379 mm (20,1"x8,8"x14,9") 43,1 L/dm³
|
| Operating Noise |
32 / 30 dB in Eco Mode |
Key: 196 cm
Shift: 83 cm |
Key: 91 cm
Shift: 90 cm |
| Key: 91 cm
Shift: 90 cm |
| |
|
|
| Weight |
12,60 kg / 27,78 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-150 kHz
V-sync: 48-190 Hz
Range max.: 205 MHz |
| Foot-Lamberts |
127 fL
/ max. 558 cm screen width |
| Candela m² |
435 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Gamma correction
Digital image shift
BrilliantColor™

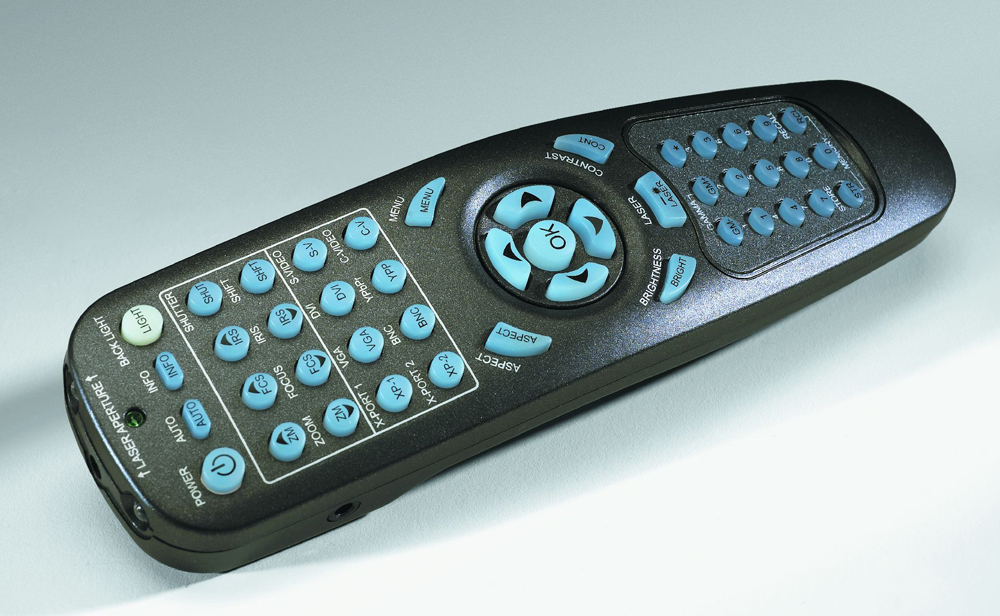

Remote control with laser pointer und mouse control
Lan network compatible.
Faroudja DCDi with pull down
BrilliantColor™ technology
|
|
- |
In Comparison
The Christie DS+405 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
40 |
Weight: |
|
97 |
| Contrast: |
|
1 |
dB: |
|
96 |
| Black level: |
|
98 |
Power cons.: |
|
86 |
| Picture Total Points: | 46 |
Projector Total Points: | 93 |
|
| Popularity Top 100 |
|
| Points: |
|
23 |
| Ranking: |
1104 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 4.0-7.0:1 | 3.98-6.83:1 | 796-1366 m |
+/-60% |
+/-39% |
Powered |
| 2.5-4.0:1 | 2.49-3.99:1 | 498-798 m |
+/-60% |
+/-39% |
Powered |
| 1.7-2.5:1 | 1.68-2.36:1 | 336-472 m |
+/-60% |
+/-39% |
Powered |
| 1.3-1.7:1 | 1.33-1.74:1 | 266-348 m |
+/-60% |
+/-39% |
Powered |
| 1.2:1 | 1.27:1 | 254 m |
+/-55% |
+/-39% |
No Zoom |
| 0.8:1 | 0.8:1 | 160 m |
+/-6% |
+/-3.5% |
No Zoom |
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2025-03-03
|
