Brief Introduction
Beta 2.5 |

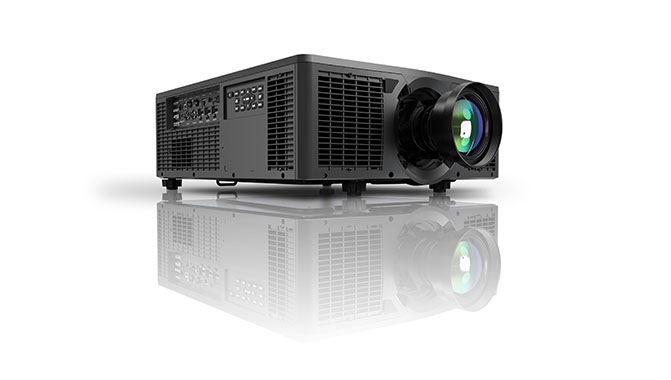

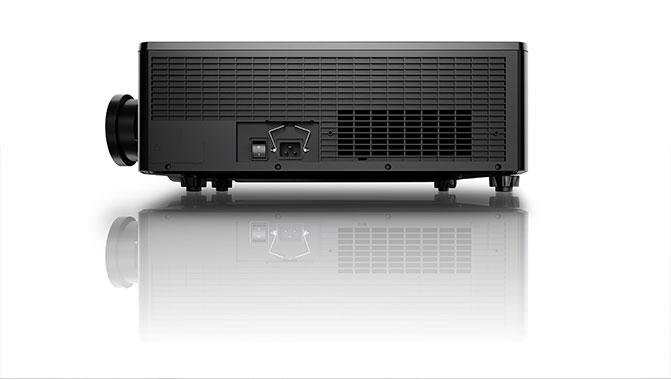

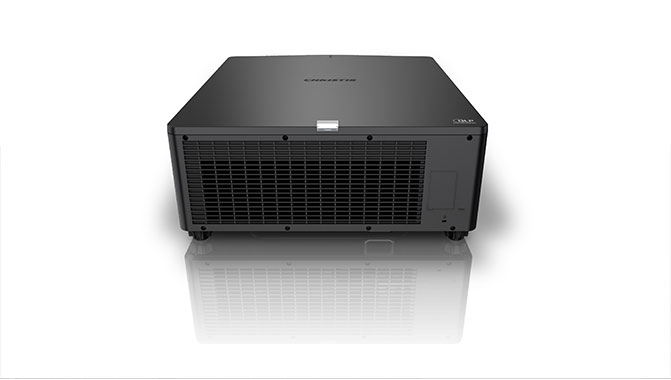

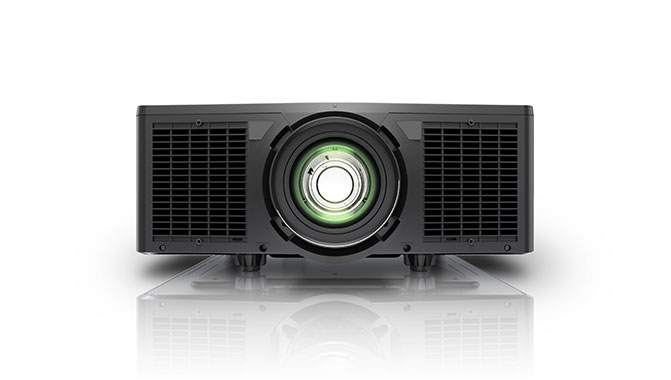

The Christie 4k1600-JS large-scale 3D laser DLP projector has 14,000 ANSI lumens, a contrast ratio of 25,000:1 and a UHD (4K2K) 3840 x 2160 resolution. Thanks to laser technology, the projector has a light lifespan of up to 20,000 hours, which is the equivalent of over 13.7 years at 4 hours a day. 14,000 ANSI lumens ensure that an image width of 1202 cm is also possible. The projector can handle rooms with low light with a smaller image width; we would recommend a maximum of 801 cm. Playing 1080P and 4K as well as 3D is no problem for the projector either, and thus all currently available Blu-ray formats can be recognised by the projector.
|
| Display Type |
1 x 0,8" HEP DMD Chip
UHD 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
14000 |
Screen |
6222 Lux (200 cm Screen width) |
| Contrast |
25000:1 full on/off |
25000:1 full on/off
|
| Black Level |
0,5600 min. Lumen |
0,249 min. Lumen |
| Offset |
-
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser
|
|
| Light Life |
20000 h. bis 50% Helligkeit |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
6222 Lux |
|
Room light max.: |
1244 Lux |
|
Candela pro m²: |
1980 cd/m² |
|
Foot-Lamberts: |
578 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
2x HDMI (1x Out) 2.0b
Display Port 1.2a
USB Type A
HDBaseT RJ45
3G-SDI (BNC)
3GSDI (BNC)
HDBaseT (RJ45)
RJ45 Ethernet Control over wired network connection)
RS232
Remote in: 3.5mm stereo female (provides serial communications and power)
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
Normal: 1020W, Eco1: 840W, Eco2: 580W |
| Size WxHxD |
600 x 193 x 520 mm (23,6"x7,6"x20,5") 60,22 L/dm³
|
| Operating Noise |
45 / 43 dB in Eco Mode |
|
| Weight |
29,40 kg / 63,93 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-135 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
578 fL
/ max. 1202 cm screen width |
| Candela m² |
1980 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Warping
24/7 continuous operation capable
PJLink™
Optional Wi-Fi network compatible.
Lan network compatible.
Crestron®-Software compatible.
Christie Twist™ Premium and Twist Pro
Christie Mystique™ automated camera-based alignment
AMX
21:9 aspect ratio support and customize EDID
Fade in & fade out control for shutter function
High Frame Rate 1080P at 240 Hz
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Christie 4k1600-JS compared to others current "Event" projectors. |
| Ansi-Lumen: |
|
9 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
63 |
| Black level: |
|
98 |
Power cons.: |
|
100 |
| Picture Total Points: | 36 |
Projector Total Points: | 84 |
|
| Popularity Top 100 |
|
| Points: |
|
19 |
| Ranking: |
96 (From: 153) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2024 Current model // Last update of the data: 2025-09-09
Created: 2025-01-08 12:52:04
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (1.99 MB)

|
Christie Website
