Brief Introduction
Beta 2.5 |

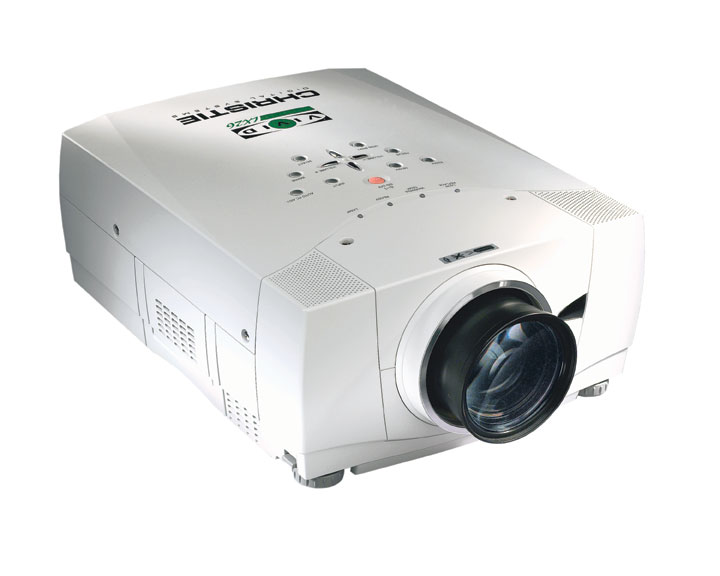

The Christie Vivid LX41 LCD projector has 4100 Ansi lumens, a contrast of 800:1 and an XGA 1024 x 768 resolution. With the lens shift function, the projector can be positioned very freely. An image width of up to 558 cm is possible as the projector has 4100 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 372 cm. The projector was launched in 2002 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 1,3" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
4100 |
Screen |
1367 Lux (200 cm Screen width) |
| Contrast |
800:1 full on/off |
800:1 full on/off
|
| Black Level |
5,1250 min. Lumen |
1,715 min. Lumen |
| Lens shift |
Vert.: +50% -0% motorisch
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
NTSC, PAL, SECAM Pal 60 NTSC 4,43 DTV 480p, 576p HDTV 1080i, 720p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

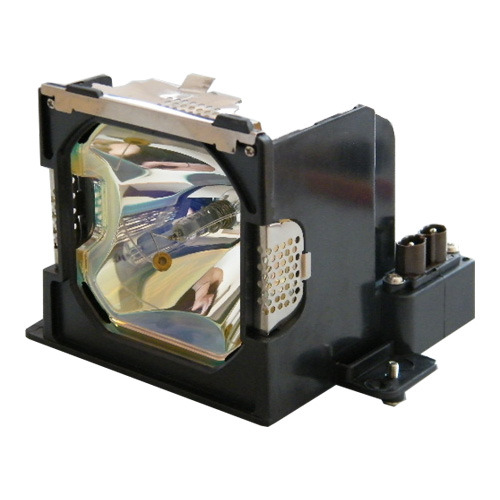

275W NSH Lamp
Article Nr.: 03-000667-01P
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
1367 Lux |
|
Room light max.: |
273 Lux |
|
Candela pro m²: |
435 cd/m² |
|
Foot-Lamberts: |
127 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
2 x 2W |
| Connections |
1 x DVI-D
RS232C D-sub8-pin
5 x BNC RGBHV
YUV in
S-Video in
1 x Cinch Stereo in
USB Typ B
Mini Jack in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
380 / 310W in Eco Mode |
| Size WxHxD |
320 x 167 x 430 mm (12,6"x6,6"x16,9") 22,98 L/dm³
|
| Operating Noise |
39dB |
|
| Weight |
8,40 kg / 18,52 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-10°
|
| Illumination |
90% |
| Frequenz |
Range max.: 160 MHz |
| Foot-Lamberts |
127 fL
/ max. 558 cm screen width |
| Candela m² |
435 cd/m² |
| Features |
 Lens shift Funktion motorisch
Freeze
Eco Mode
Kensington Slot
Gamma correction
Remote control with laser pointer und mouse control
3D Digital Noise Reduction
Digital zoom and pan (Mini. x1/4, Max. x49)
Presentation timer Picture and audio mute
RJ45 over RS232C module optional
|
|
- |
In Comparison
The Christie Vivid LX41 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
40 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
94 |
| Black level: |
|
85 |
Power cons.: |
|
96 |
| Picture Total Points: | 42 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
23 |
| Ranking: |
1106 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 4.3-6.0:1 | 4.13-5.79:1 | 826-1158 m |
50% |
|
Powered |
| 2.4-4.3:1 | 2.31-4.18:1 | 462-836 m |
50% |
|
Powered |
| 1.8-2.4:1 | 1.76-2.3:1 | 352-460 m |
50% |
|
Powered |
| 1.3-1.8:1 | 1.27-1.78:1 | 254-356 m |
50% |
|
Powered |
| 0.8:1 | 0.84:1 | 168 m |
0.0% Fix |
|
No Zoom |
|
| Status |
2002 Discontinued (EOL) // Last update of the data: 2023-08-04
|
