Brief Introduction
Beta 2.5 |

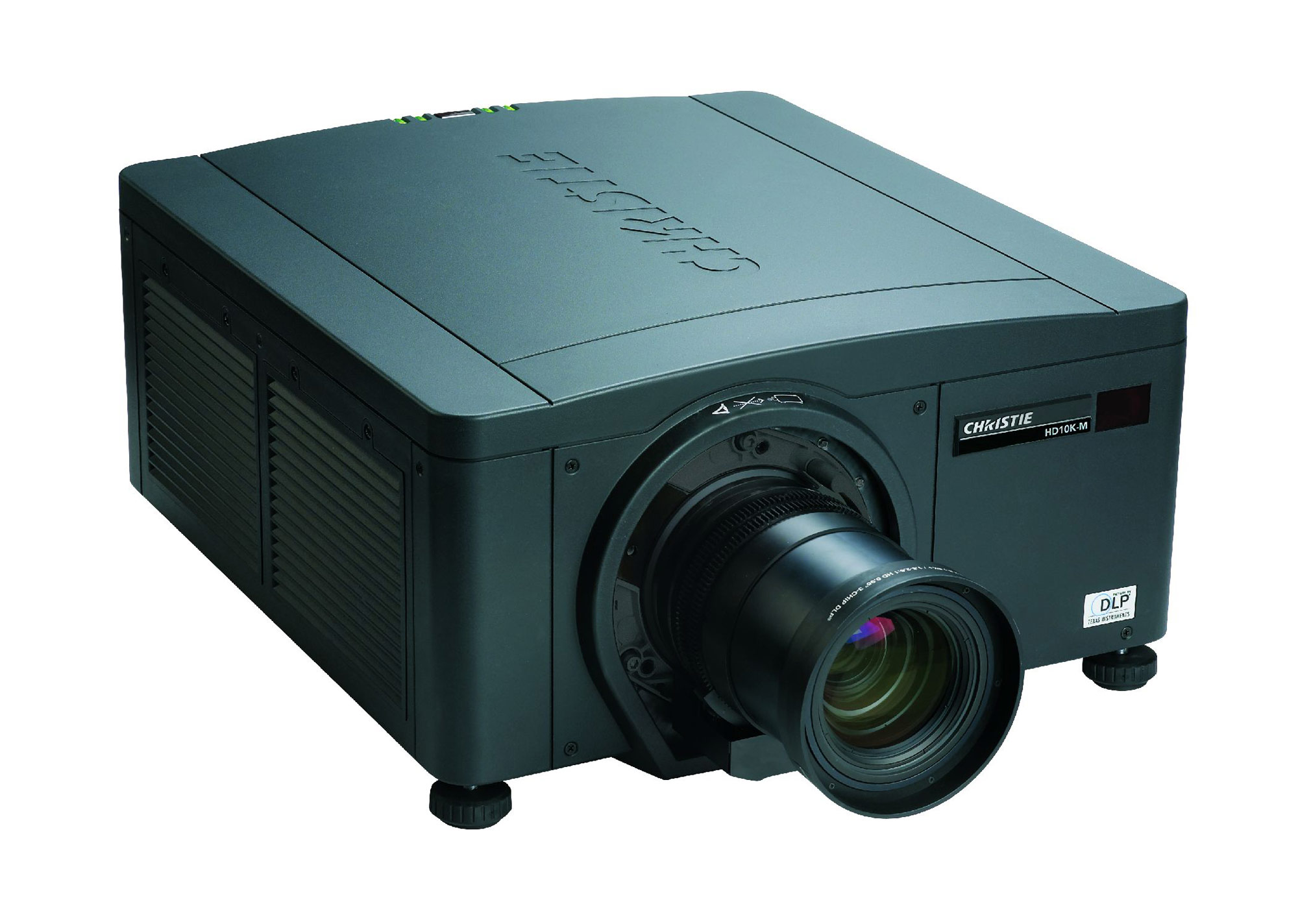

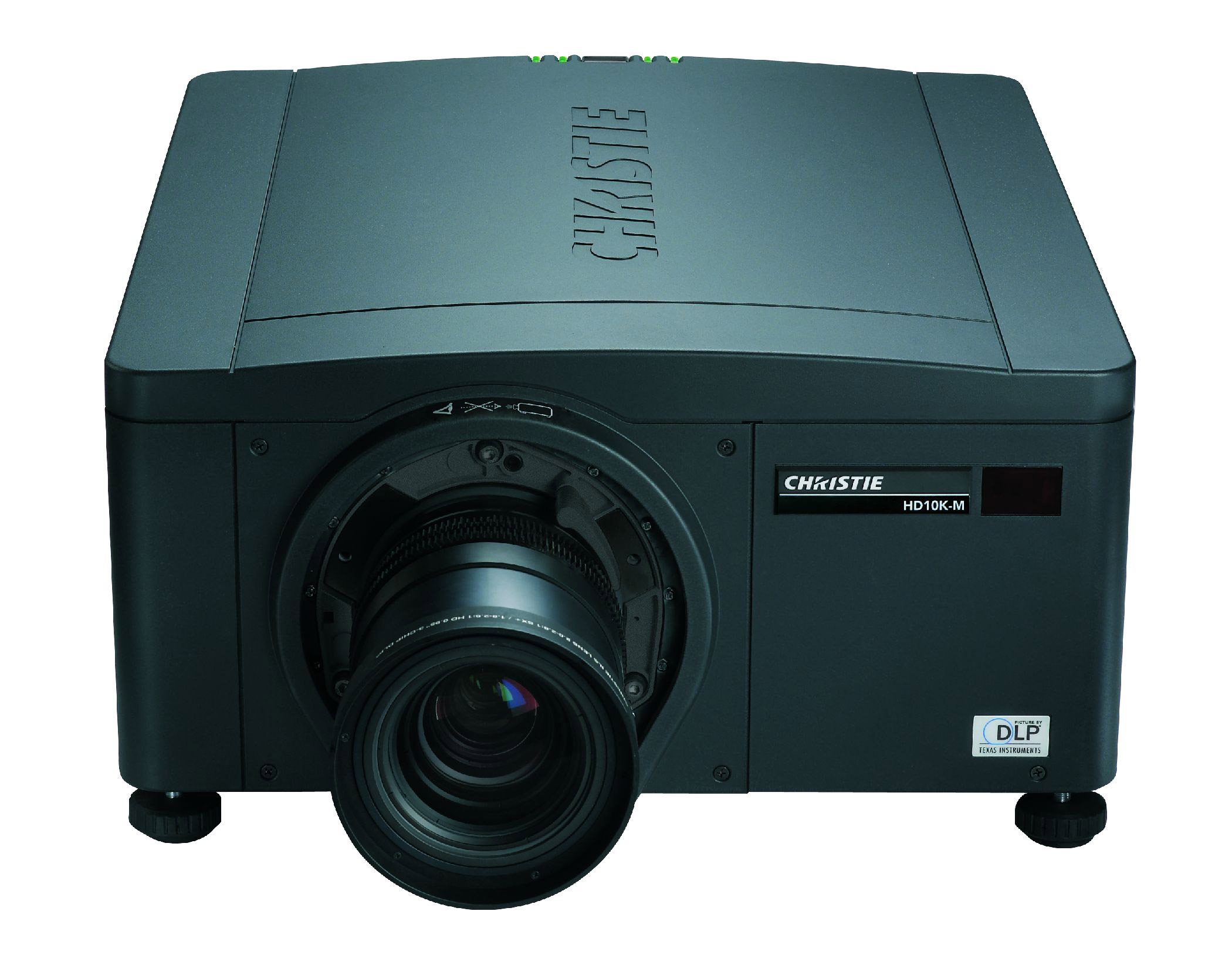

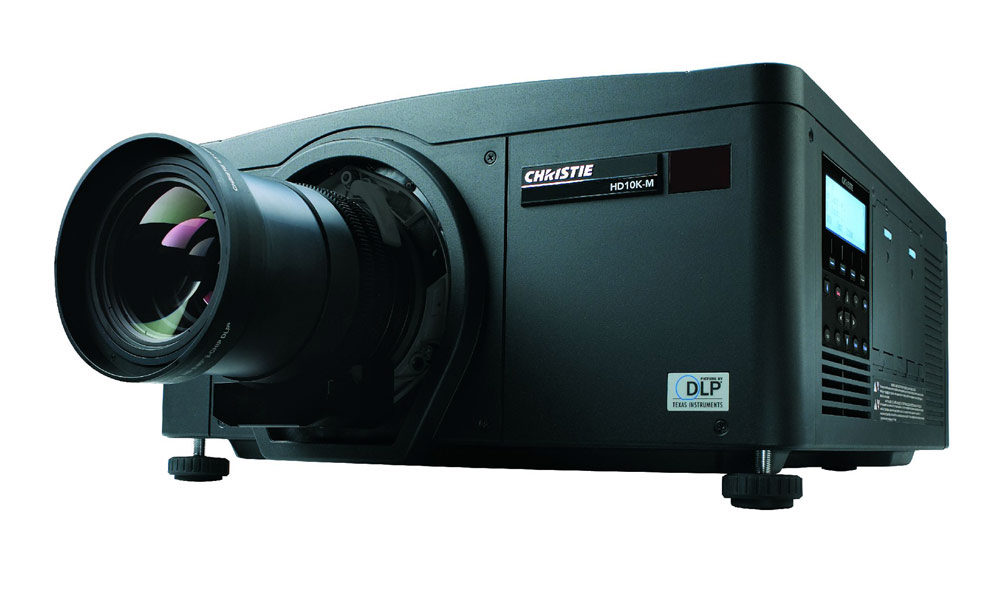

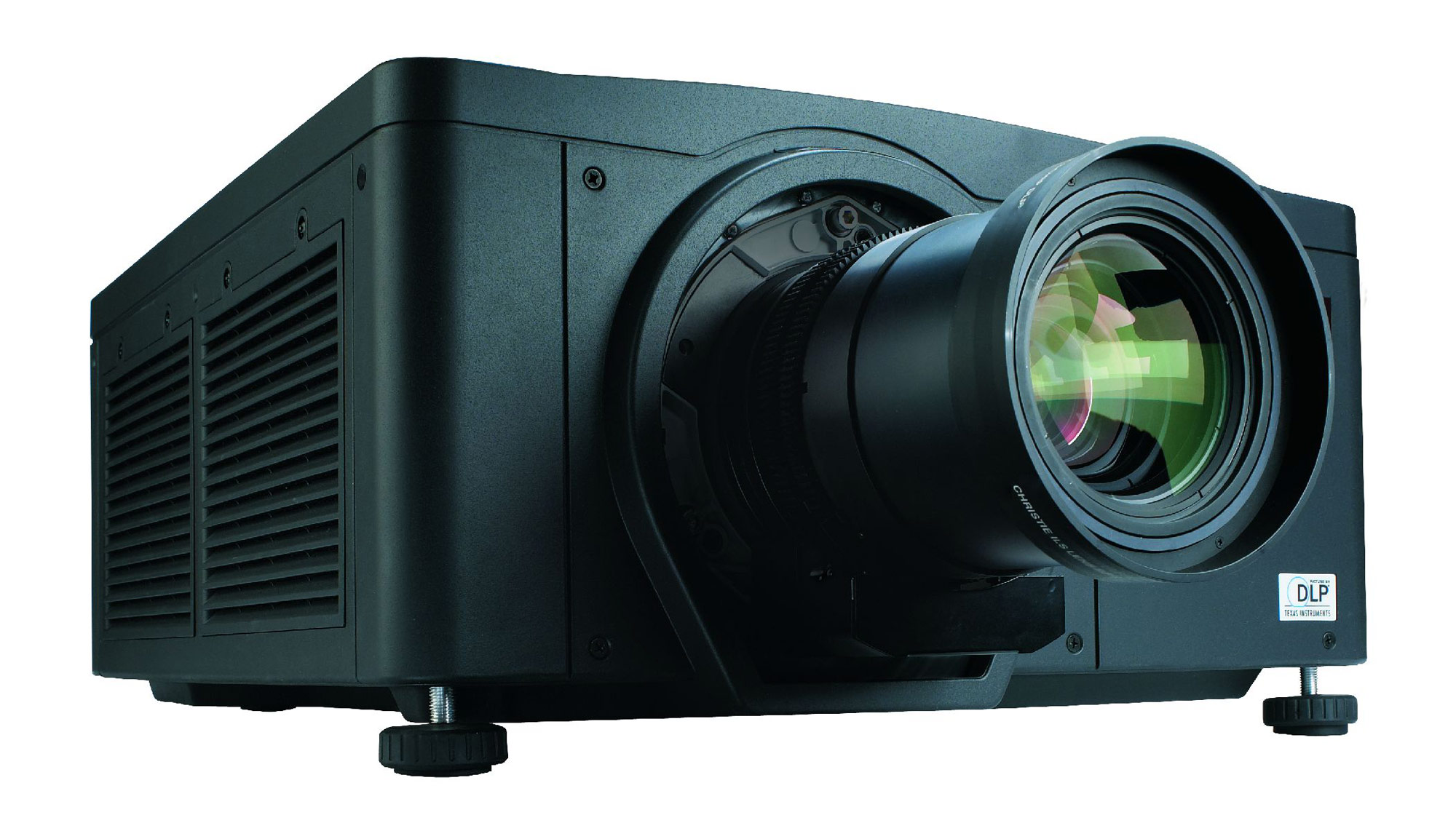

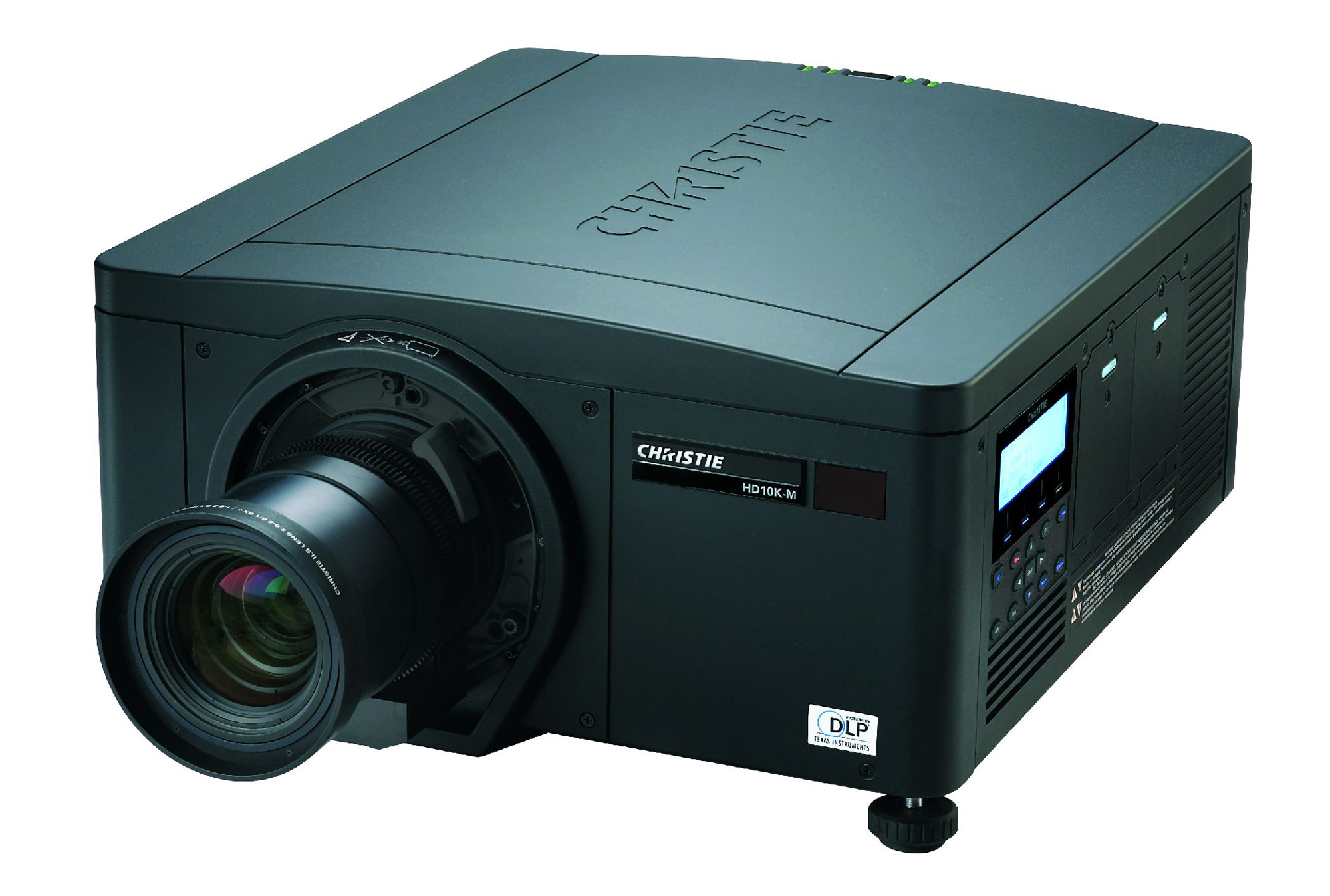

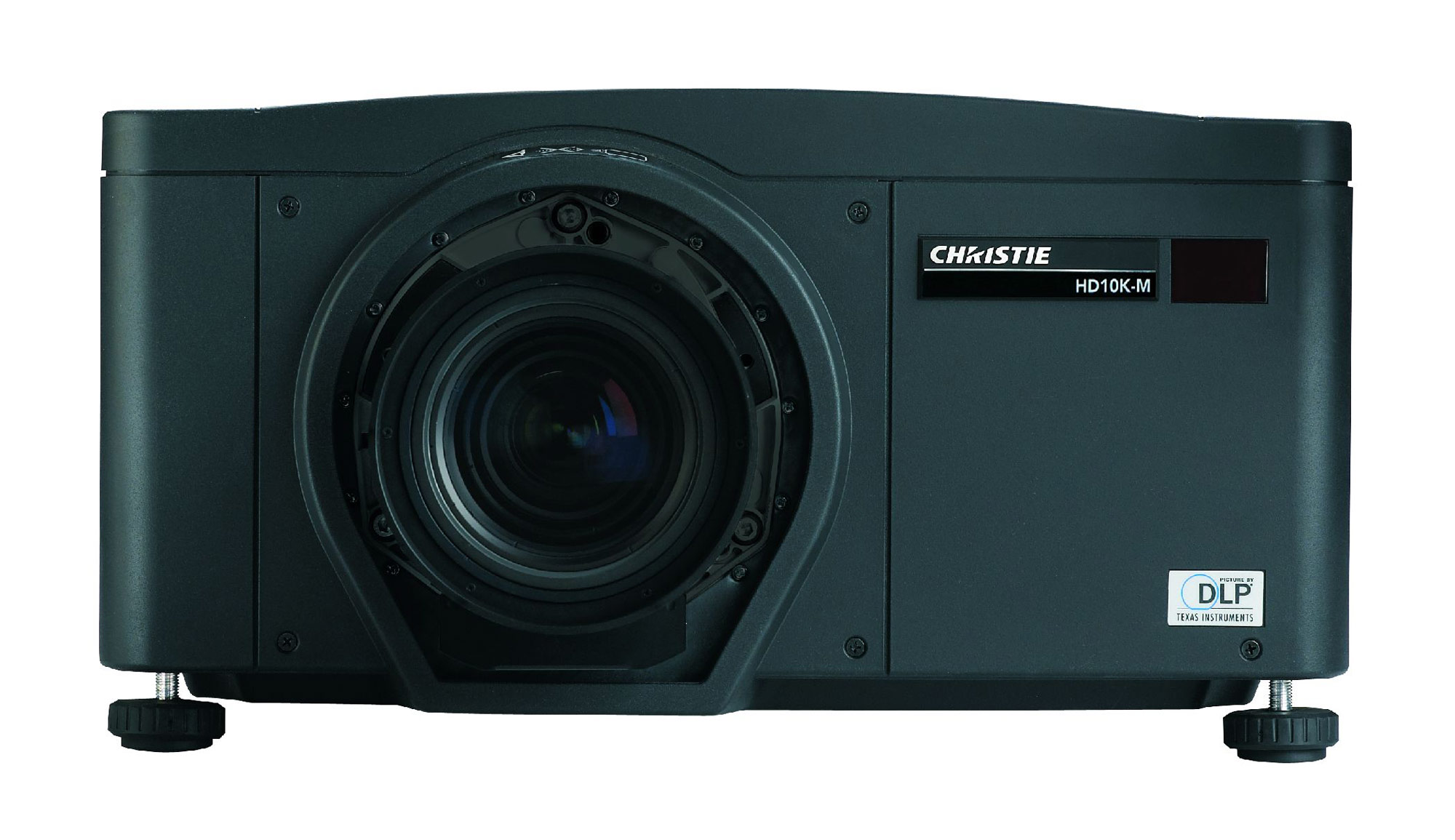

A brief introduction to the DS+10K-M: The Christie DLP projector offers 9300 Ansi lumens, a contrast of 10000:1 and an SXGA+ 1400 x 1050 resolution. Including a lens shift function, which provides freedom during installation. An image width of up to 840 cm is possible, if the image width is smaller (we recommend max. 560 cm), rooms with residual light are also no problem. If the image is still too small, the integrated edge blending software can help to project a large image with additional projectors. Playing 1080P is also no problem for the projector. This model is no longer offered by Christie.
|
| Display Type |
3 x 0,95" DLP Chip
SXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
9300 / 4650 im singel Lamp Mode |
Screen |
3100 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,9300 min. Lumen |
0,31 min. Lumen |
| Lens shift |
Vert.: +/-50% Hori.: +/-25% motorisch
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
QXGA 2048 x 1536 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
2 x 350W P-VIP Lamp
Article Nr.: 003-100857-01
|
|
| Light Life |
1500 h. 2000 h. in Eco Mode |
| Operating Costs |
|
|
|
 |
|
Lux: |
3100 Lux |
|
Room light max.: |
620 Lux |
|
Candela pro m²: |
987 cd/m² |
|
Foot-Lamberts: |
288 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |

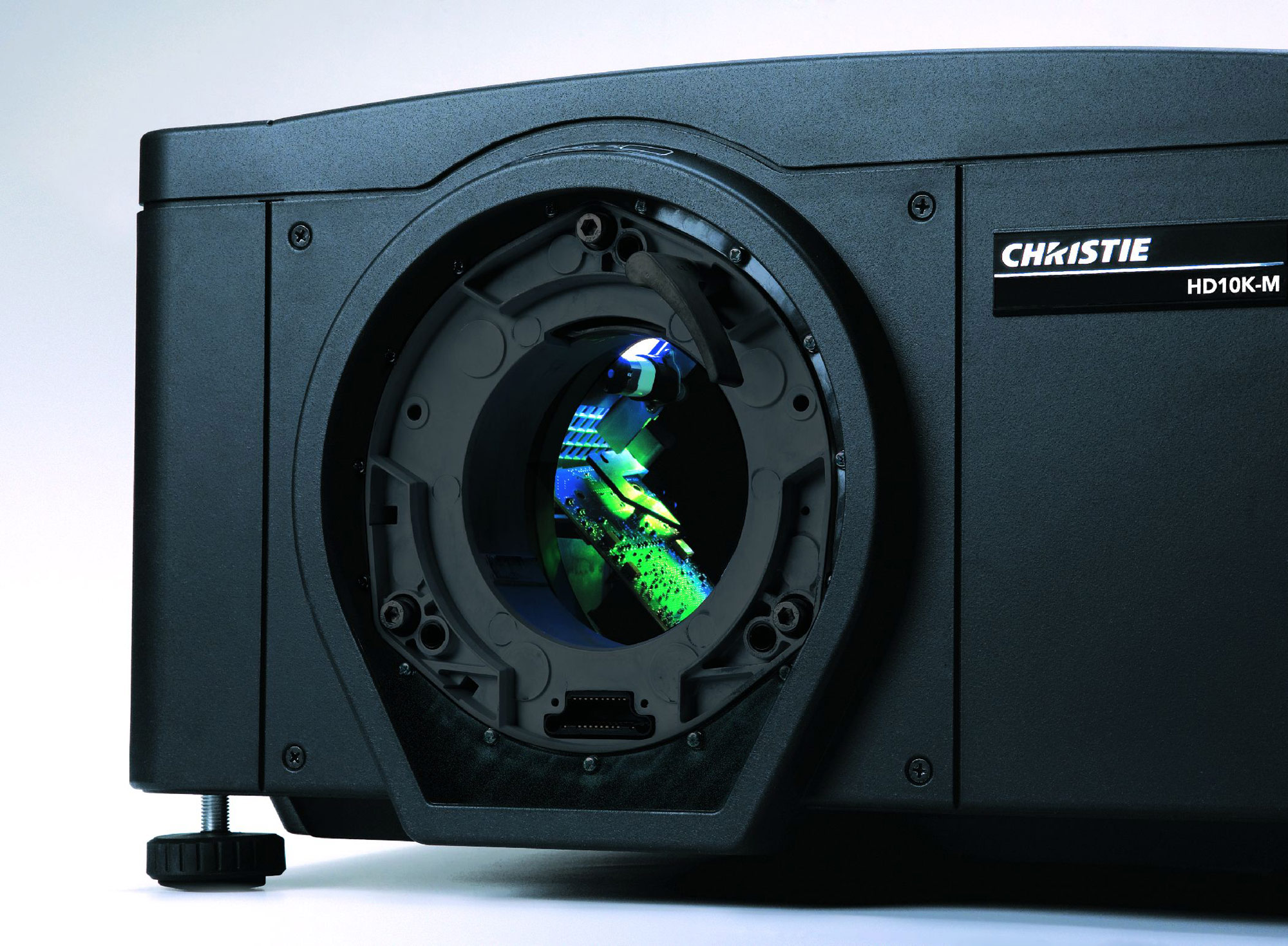

| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |

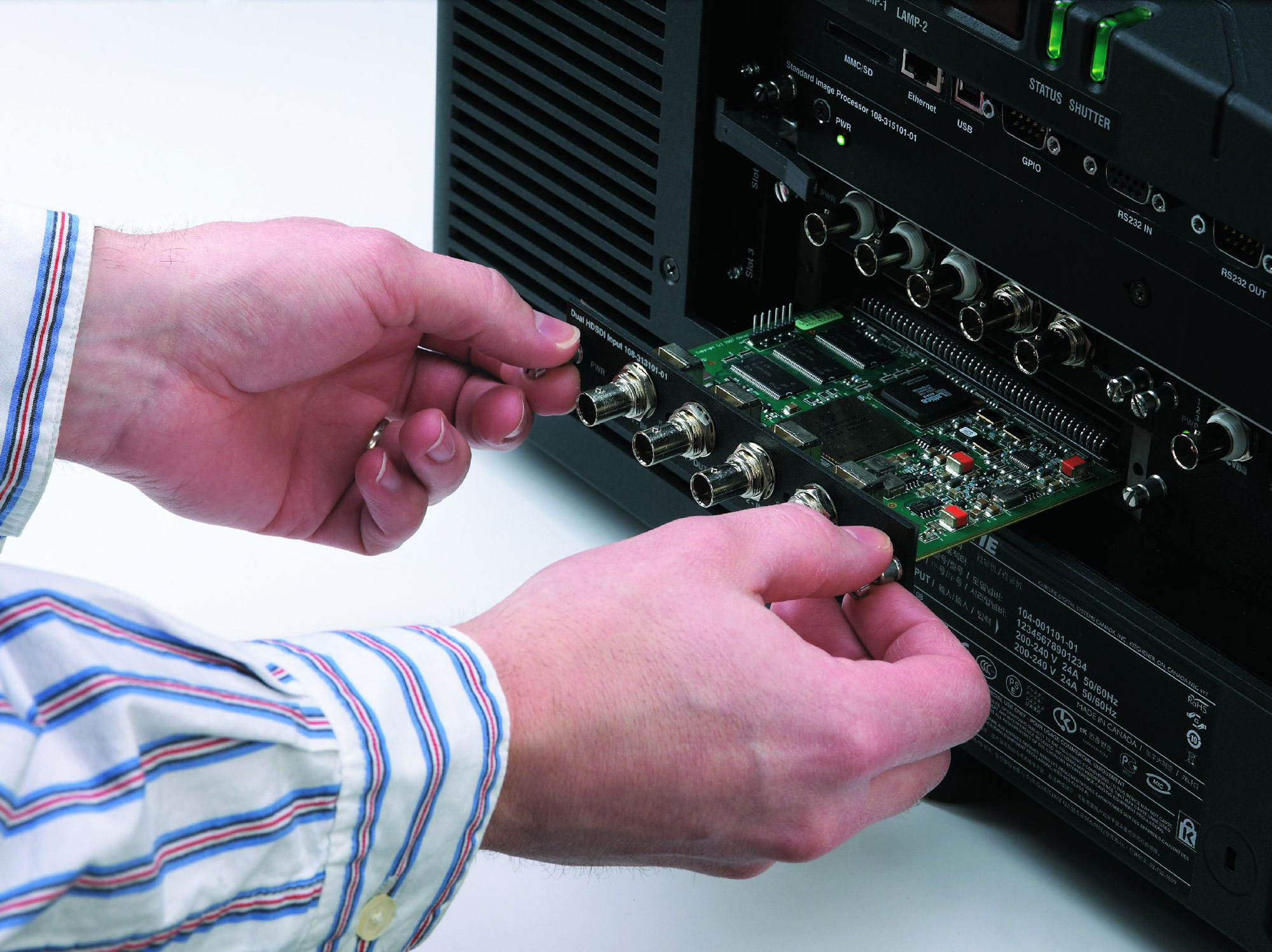

| Connections |
5 x BNC RGBHV in
DVI-I in
RS232C RS422C
weitere Anschlüsse Optional |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1320W |
| Size WxHxD |
500 x 259 x 561 mm (19,7"x10,2"x22,1") 72,65 L/dm³
|
| Operating Noise |
- |
Shift: 75 cm
|
Shift: 50 cm
|
|
Shift: 50 cm
|
| |
|
|
| Weight |
25,00 kg / 55,12 lbs. |
| Keystone |
- |
| Illumination |
90% |
| Frequenz |
H-sync: 15-120 kHz
V-sync: 23,97-150 Hz
Range max.: 165 MHz |
| Foot-Lamberts |
288 fL
/ max. 840 cm screen width |
| Candela m² |
987 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion motorisch
Freeze
Eco Mode
Kensington Slot
Gamma correction
Dynamic iris
Digital image shift
Warping
Edge Blending
Picture-in-Picture
Password protection
Remote control with laser pointer
Lan network compatible.
Crestron®-Software compatible.
|
|
- |
In Comparison
The Christie DS+10K-M compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
93 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
97 |
Power cons.: |
|
82 |
| Picture Total Points: | 64 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
42 |
| Ranking: |
279 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 4.5-7.5:1 | 4.5-7.5:1 | 900-1500 m |
+/-50% |
+/-25% |
Powered |
| 2.8-4.5:1 | 2.8-4.5:1 | 560-900 m |
+/-50% |
+/-25% |
Powered |
| 2.0-2.8:1 | 2-2.8:1 | 400-560 m |
+/-50% |
+/-25% |
Powered |
| 1.5-2.0:1 | 1.5-2:1 | 300-400 m |
+/-50% |
+/-25% |
Powered |
| 7.5-11.2:1 | 7.5-11.2:1 | 1500-2240 m |
+/-50% |
+/-25% |
Powered |
| 1.25-1:6:1 | 1.25-1.6:1 | 250-320 m |
+/-50% |
+/-25% |
Powered |
| 0.73:1 | 0.73:1 | 146 m |
+/-20% |
+/-10% |
No Zoom |
| 1.2:1 | 1.25:1 | 250 m |
+/-50% |
+/-25% |
No Zoom |
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2025-03-03
|
