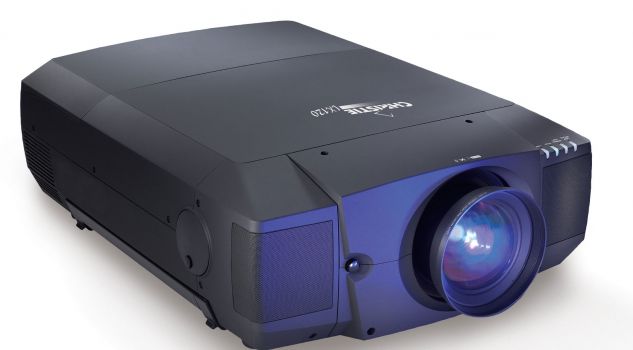

As a projector for the Event sector, the Christie LX120 is equipped with 12000 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 1300:1. The runtime of the lamp in this model is estimated at 1000 hours before a replacement is necessary. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Distance Calculator is available to calculate the exact dimensions. Regarding projection size, the value of 12000 ANSI lumens allows for an image width of up to 954 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 636 cm. For media input, video signals up to 1080P are supported. Since entering the market in 2006, production has been discontinued; the manufacturer no longer actively offers the model. However, it remains frequently searched within our database.
Display Type
3 x 1,8" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
4000 Lux
Contrast:
1300:1
Candela pro m²:
1275 cd/m²
Foot-Lamberts:
372 fL
60 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
3W Stereo
Connections
1 x DVI
1 x Audio RCA x 2
Computer 2 / Video
5 x BNC / YUV
1 x Audio RCA x 2
1 x BNC Video/YC
1 x S-Video
1 x Audioaus. Eingang RCA x 2
1 x USB
Control Port x 2
RS232C
Ceiling Mounting
Yes, is possible.
Power
1500W / 20W standby
Size WxHxD
581 x 251,5 x 783 mm (22,9"x9,9"x30,8") 114,19 L/dm³
Operating Noise
51dB
Shift: 60 cm
Shift: 20 cm
Shift: 20 cm
Shift: 60 cm
Weight
36,50 kg / 80,47 lbs.
Keystone
Vert. +40°-20°
Illumination
90%
Frequenz
H-sync: 15-120 kHz V-sync: 50-120 Hz Range max.: 230 MHz
Full HD 1080P compatible Lens shift Funktion Freeze Kensington Slot Gamma correction Remote control with laser pointer und mouse control Digital Zoom optionally available adapts to all mains voltages. 10-Bit digital Gamma-correction
Full HD 1080P compatible
