Brief Introduction
Beta 2.5 |
The HD8K DLP projector from Christie has 8000 Ansi-Lumen, a contrast of 1600 - 2000:1 and a HDTV 1920 x 1080 resolution. The built-in lens shift function provides freedom when setting up. Thanks to the brightness of 8000 Ansi lumens, a picture width of 909 cm is possible. The projector can also handle slightly brighter rooms with a smaller image width (we recommend max. 606 cm). If the image width is not sufficient, the projector offers integrated edge blending software, which allows several projectors to project a large image together. It was launched in 2006 and is no longer offered by the manufacturer Christie. Unfortunately, we can no longer offer replacement lamps for this model, neither originals nor replicas.
|
| Display Type |
3 x 0,95" DC3 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
8000 |
Screen |
3556 Lux (200 cm Screen width) |
| Contrast |
1600 - 2000:1 full on/off |
1600 - 2000:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
2,226 min. Lumen |
| Lens shift |
Vert.: +/-59,5% Hori.: +/-21%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
QXGA 2048 x 1536 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |

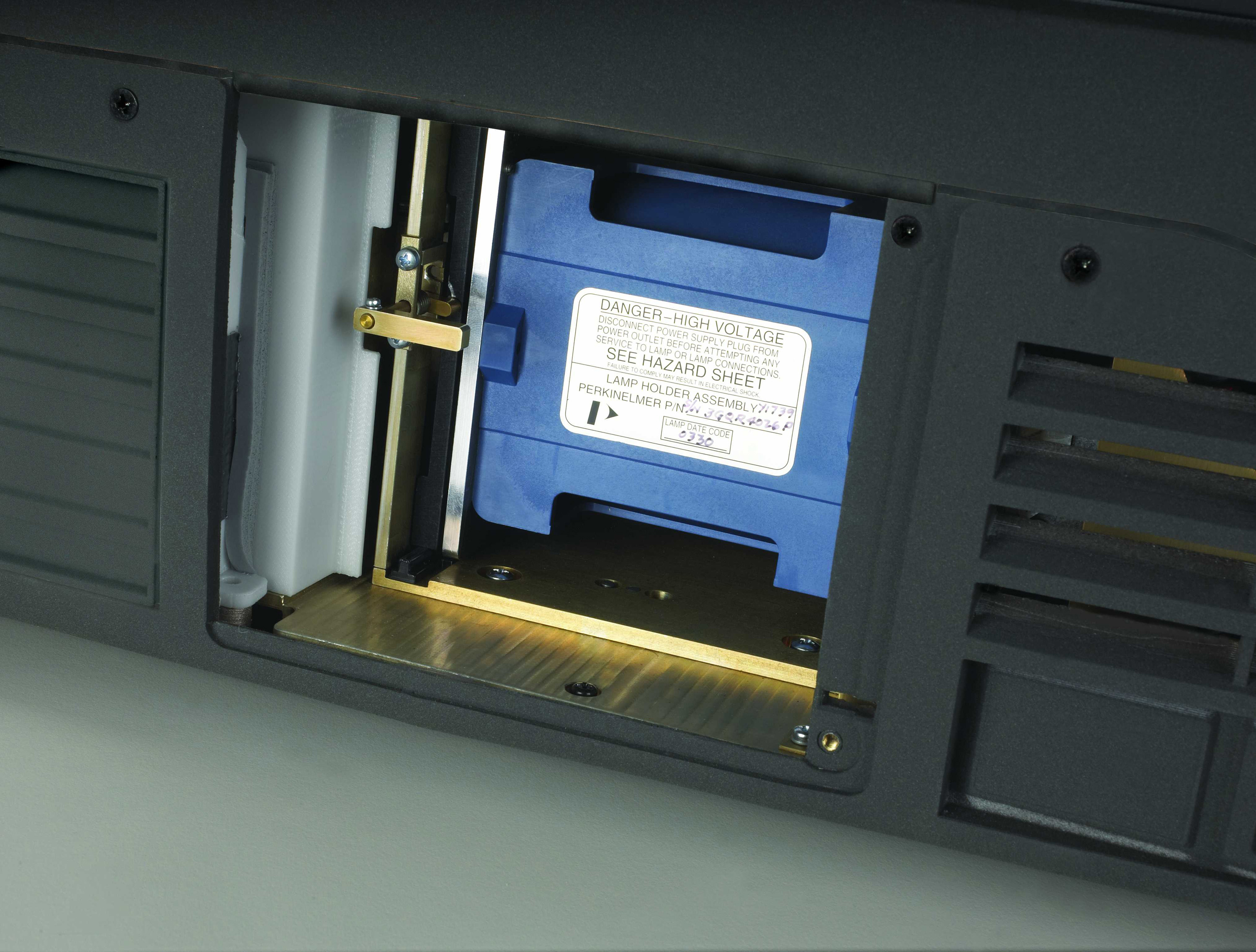

1200W Xenon Lamp
Article Nr.: 003-120116-01 / 03-000834-01P
|
|
| Light Life |
1500 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
3556 Lux |
|
Room light max.: |
711 Lux |
|
Candela pro m²: |
1131 cd/m² |
|
Foot-Lamberts: |
330 fL |
|
 |
| 67 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |

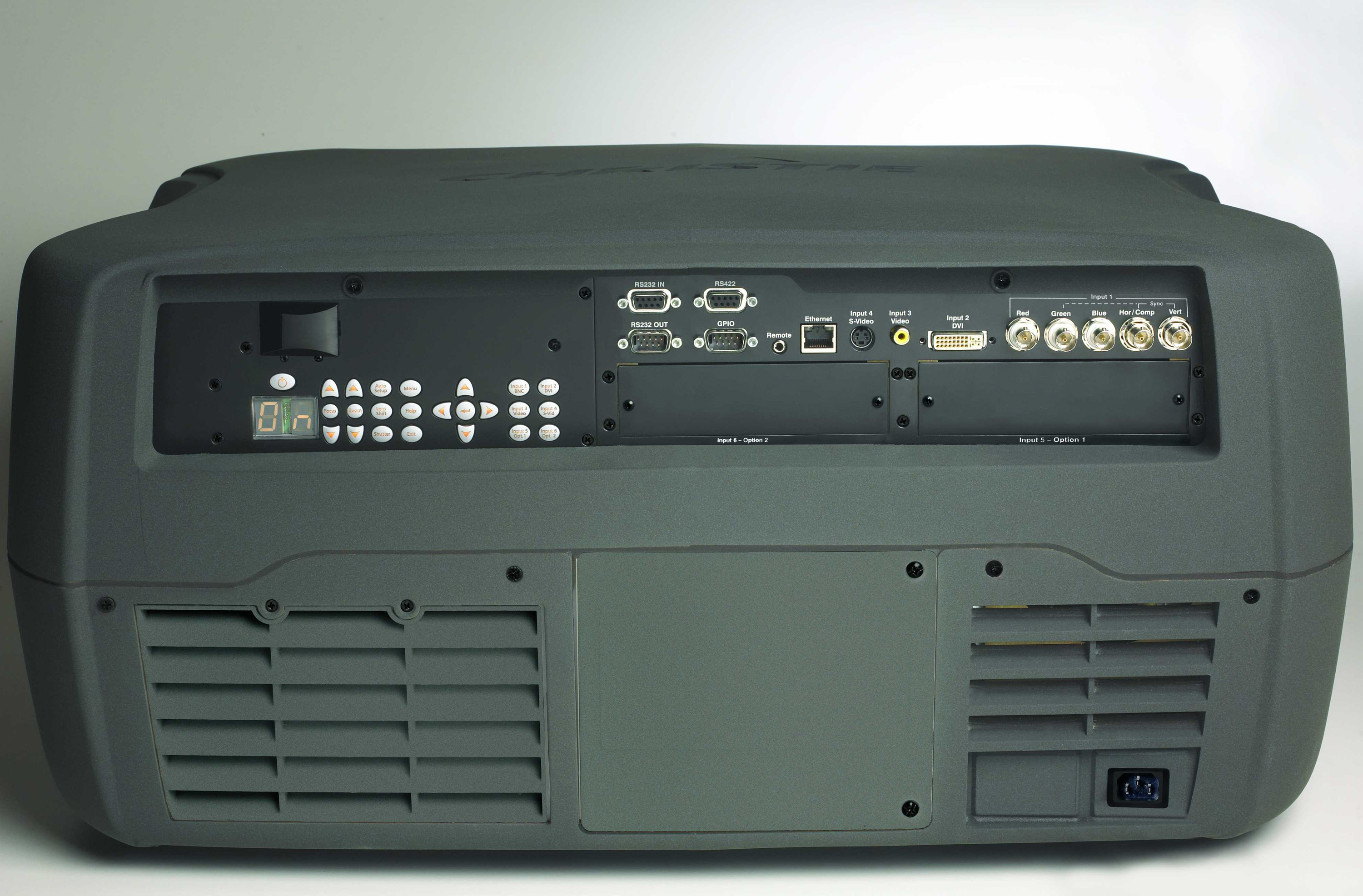

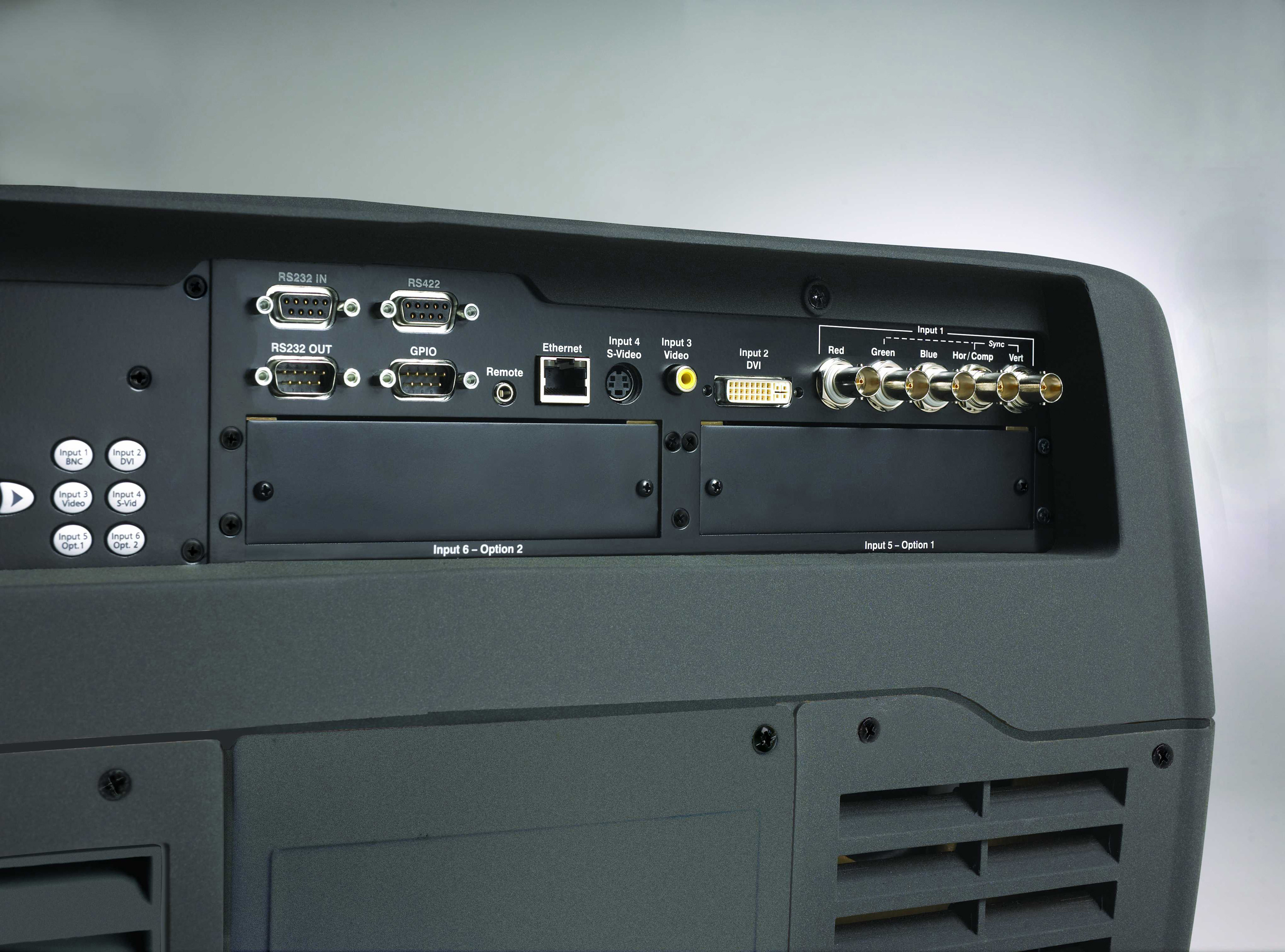

| Connections |
DVI-I mit HDCP in
5 x BNC RGBHV in
S-Video in
Cinch Video in
RS232C
RS422
RJ45
Weitere Anschlüsse optional.
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
2000W |
| Size WxHxD |
660 x 313 x 566 mm (26"x12,3"x22,3") 116,92 L/dm³
|
| Operating Noise |
- |
Shift: 66 cm
|
Shift: 42 cm
|
|
Shift: 42 cm
|
| |
|
|
| Weight |
36,30 kg / 80,03 lbs. |
| Keystone |
- |
| Illumination |
90% |
| Frequenz |
H-sync: 15-120 kHz
V-sync: 23,97-150 Hz
|
| Foot-Lamberts |
330 fL
/ max. 909 cm screen width |
| Candela m² |
1131 cd/m² |
| Features |
 Lens shift Funktion
Freeze
Gamma correction
Edge Blending
Picture-in-Picture
Password protection
Remote control with laser pointer
Control via web browser
Lan network compatible.
Optional image warping
|
|
- |
In Comparison
The Christie HD8K compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
6 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
92 |
Power cons.: |
|
79 |
| Picture Total Points: | 33 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
24 |
| Ranking: |
433 (From: 576) |
|
|
|
|
|
|

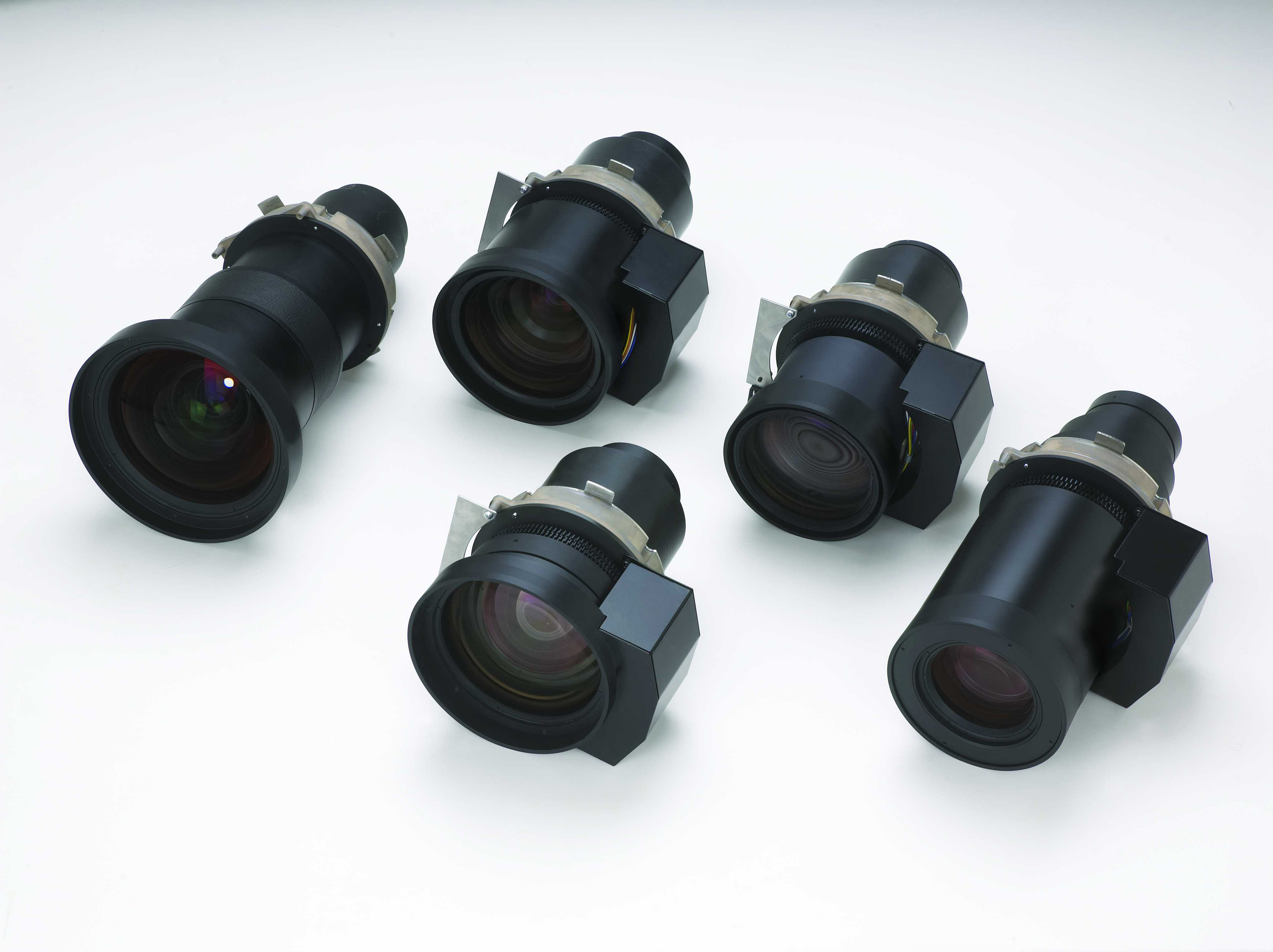

Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 4.1-6.9:1 | 4.22-7.02:1 | 844-1404 m |
+/-59.5% |
+/-21% |
Powered |
| 2.6-4.1:1 | 2.6-4.23:1 | 520-846 m |
+/-59.5% |
+/-21% |
Powered |
| 1.8-2.6:1 | 1.85-2.55:1 | 370-510 m |
+/-59.5% |
+/-21% |
Powered |
| 1.4-1.8:1 | 1.41-1.9:1 | 282-380 m |
+/-59.5% |
+/-21% |
Powered |
| 0.73:1 | 0.73:1 | 146 m |
+/-23.5% |
+/-9.5% |
No Zoom |
| 1.2:1 | 1.15:1 | 230 m |
+/-59.5% |
+/-21% |
No Zoom |
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2025-03-03
|
