Brief Introduction
Beta 2.5 |
The DHD775 E DLP has 6400 Ansi-Lumen, a contrast of 5000:1 and a HDTV 1920 x 1080 resolution. The built-in lens shift function provides freedom when setting up. 6400 Ansi lumens ensure that a picture width of 813 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 542 cm. If the image width is not sufficient, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Furthermore, it is Full HD 1080P compatible and even has the option of projecting HD 1080P Blu-rays onto the ceiling using 360° projection. This model is no longer offered by Christie.
|
| Display Type |
1 x 0,65" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
6400 / 2500 im Eco Mode |
Screen |
2844 Lux (200 cm Screen width) |
| Contrast |
5000:1 full on/off |
5000:1 full on/off
|
| Black Level |
1,2800 min. Lumen |
0,569 min. Lumen |
| Lens shift |
Vert.: +67% -20% Hori.: +/-10%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |

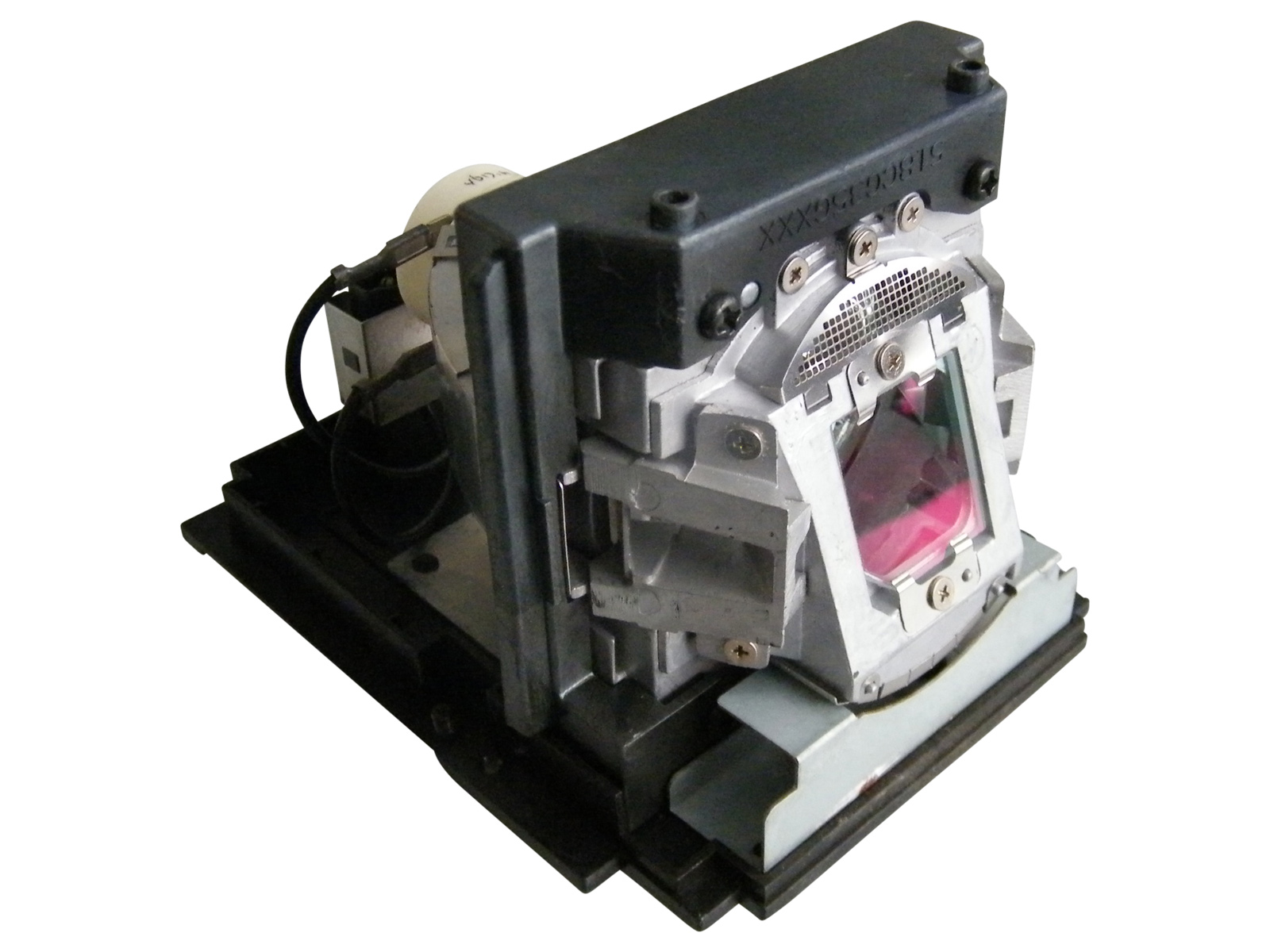

2 x 350W P-VIP Lamp
Article Nr.: 003-004450-01
|
|
| Light Life |
1500 h. 2000 h. in Eco Mode |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
2844 Lux |
|
Room light max.: |
569 Lux |
|
Candela pro m²: |
905 cd/m² |
|
Foot-Lamberts: |
264 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
2 x HDMI in
D-sub 15 pin in und out
5 x BNC RGBHV in
YUV in
Cinch Video in
Display Port in
USB Typ A,B
RJ45 in
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
920 / 755W in Eco Mode |
| Size WxHxD |
456 x 215 x 532 mm (18"x8,5"x20,9") 52,16 L/dm³
|
| Operating Noise |
- |
Shift: 75 cm
|
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
19,50 kg / 42,99 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-85 Hz
Range max.: 162 MHz |
| Foot-Lamberts |
264 fL
/ max. 813 cm screen width |
| Candela m² |
905 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
Dynamic iris
Warping
360° installable
24/7 continuous operation capable
Edge Blending
Lan network compatible.
6 Segment (RGBCYW) colour wheel.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Christie DHD775 E compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
63 |
Weight: |
|
93 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
96 |
Power cons.: |
|
88 |
| Picture Total Points: | 53 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
27 |
| Ranking: |
873 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2012-10-18 15:10:50
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (12.49 MB)
|
Christie Website
