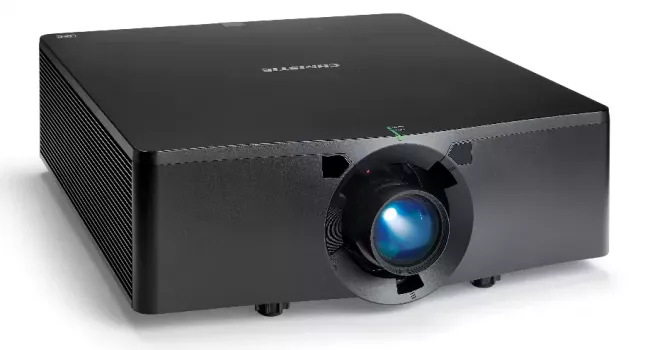

Behind the name 4K22-HS is a 3D-Laser-DLP projector by Christie, whose main features include 19000 ANSI lumens, a contrast of 4000000:1 and a UHD (4K2K) 3840 x 2160 resolution. The laser technology ensures a specified light source lifespan of up to 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Distance Calculator. A look at the light output reveals: The 19000 ANSI lumens are sufficient to illuminate an image width of up to 1400 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 933 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs.
Display Type
1 x 0,95" DMD DLP Chip UHD 16/9 Ti Digital Light Processing Chip
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) | | 2D-zu-3D Video Converter
Application
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser-Phosphor
Light Life
20000 h. bis 50% Helligkeit
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
8444 Lux
Contrast:
4000000:1
Candela pro m²:
2690 cd/m²
Foot-Lamberts:
785 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
HDMI 2.0b x 2 (HDCP 1.4/2.2)
3D sync in und out (BNC)
12G-SDI (BNC)
DisplayPort
USB (Type A)
HDBaseT (RJ45)
RS232C Din 9 pin in
RJ45 in
12V Trigger
Loop out available for daisy chaining
Real Full HD 3D
