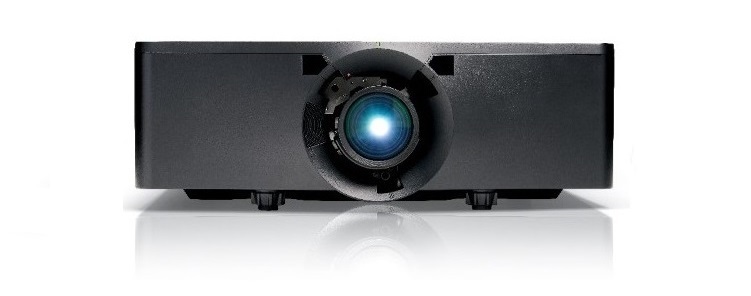

A brief introduction to the Christie D12WU-HS. The large format DLP laser projector has a WUXGA 1920 x 1200 resolution and a contrast of 1200:1 full on/off. The manufacturer Christie specifies a service life of 20000 hours, which is over 13.7 years if enjoyed for four hours a day. The integrated lens shift gives freedom when positioning the projector. An image width of up to 1090 cm is possible as the projector has 11500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 727 cm. Video signals 1080P and 3D are also no problem for the projector, which can even project Blu-rays onto the ceiling thanks to 360° projection. The model was built by Christie in 2016 and is no longer current.
|
| Display Type |
1 x 0,96" DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
11500 / Center: 12000 lumens / ISO : 12900 lumens |
Screen |
5111 Lux (200 cm Screen width) |
| Contrast |
1200:1 Full On/Off |
1200:1 Full On/Off
|
| Black Level |
9,5833 min. Lumen |
4,267 min. Lumen |
| Lens shift |
Vert.: +/-60% Hori.: +/-25%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
5111 Lux |
|
Room light max.: |
1022 Lux |
|
Candela pro m²: |
1627 cd/m² |
|
Foot-Lamberts: |
475 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
2 x HDMI 1.4 in
DVI-S in
D-sub 15pin in und out
5 x BNC RGBHV in
BNC Video in
S-Video in
USB Tyo B in
RS232C Din 9 pin in
3D Sync In und out
RJ45 mit HDBaseT in
1 x 3GSDI x 1 (BNC)
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1250 / 1020W Eco Mode |
| Size WxHxD |
677 x 203 x 596 mm (26,7"x8"x23,5") 81,91 L/dm³
|
| Operating Noise |
39 / 37 dB in Eco Mode |
Shift: 68 cm
|
Shift: 50 cm
|
|
Shift: 50 cm
|
| |
|
|
| Weight |
42,50 kg / 93,7 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-85 Hz
Range max.: 162 MHz |
| Foot-Lamberts |
475 fL
/ max. 1090 cm screen width |
| Candela m² |
1627 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
360° installable
Optional Wi-Fi network compatible.
Lan network compatible.
4 segment (RGBY)
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Christie D12WU-HS compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
9 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
76 |
| Black level: |
|
84 |
Power cons.: |
|
88 |
| Picture Total Points: | 31 |
Projector Total Points: | 83 |
|
| Popularity Top 100 |
|
| Points: |
|
25 |
| Ranking: |
397 (From: 576) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2025-03-03
