Brief Introduction
Beta 2.5 |

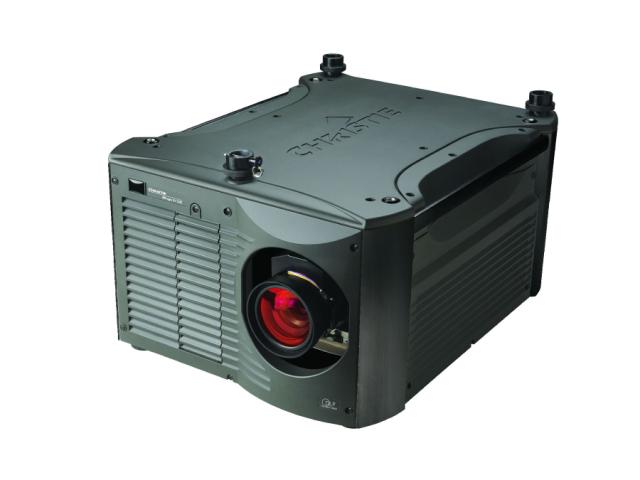

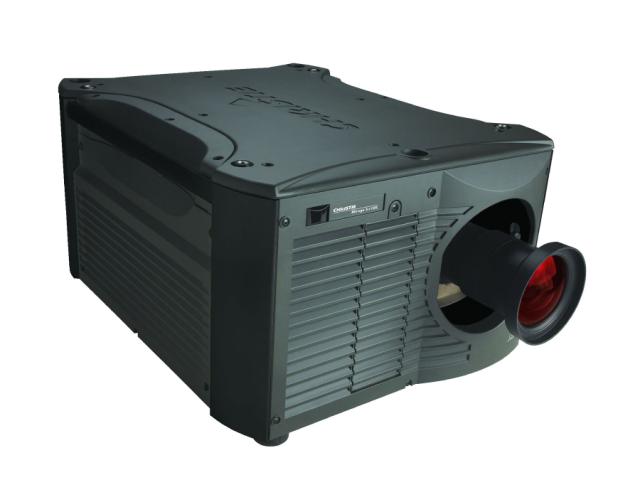

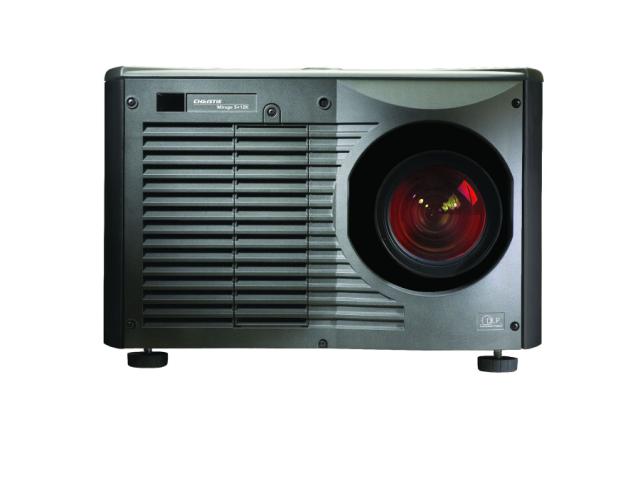

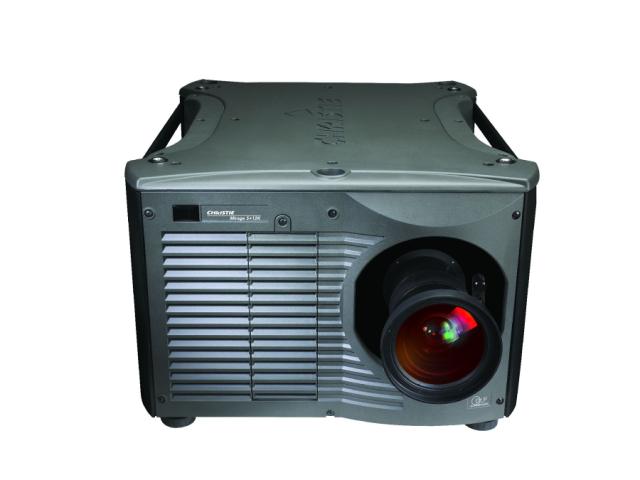

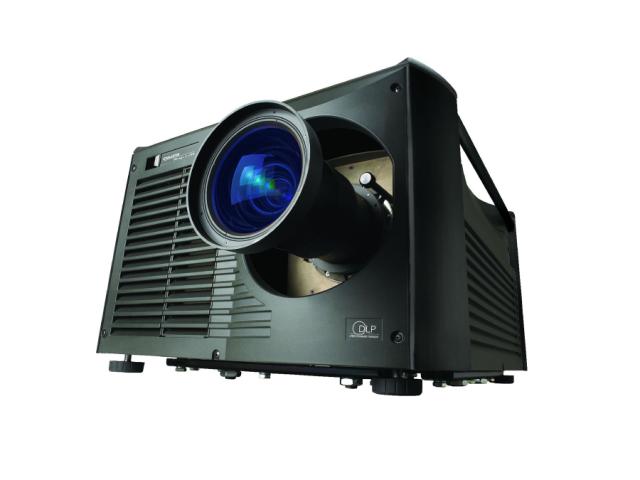

With the Mirage S+12K, manufacturer Christie offers a large-format DLP projector with SXGA+ 1400 x 1050 resolution and a contrast of 2000:1. With the lens shift function, the projector can be positioned very freely. 954 cm image width, the projector will be able to illuminate well. Rooms with residual light can be created by the projector with a smaller image width, we recommend a maximum of 636 cm. If the image is still too small, the integrated edge blending software can help to project a larger image with additional projectors. Even 1080P video signals are no problem for the projector. It was launched in 2008 and is no longer offered by the manufacturer Christie. It should also be noted that there are unfortunately no longer any replacement lamps available for the projector, neither originals nor replicas.
|
| Display Type |
3 x 0,95" DC3 DLP Chip
SXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
12000 |
Screen |
4000 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
6,0000 min. Lumen |
2,003 min. Lumen |
| Lens shift |
Vert.: +55% -50% Hori.: +21% -27,5% motorisch
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
QXGA 2048 x 1536 compressed |
| Video Modes |
PAL, SECAM, NTSC, EDTV HDTV 720p, 1080i, 1080p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
2000W Xenon Lamp
Article Nr.: 03-900519-01P / 003-120135-01
|
|
| Light Life |
750 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
4000 Lux |
|
Room light max.: |
800 Lux |
|
Candela pro m²: |
1275 cd/m² |
|
Foot-Lamberts: |
372 fL |
|
 |
| 83 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
nein |

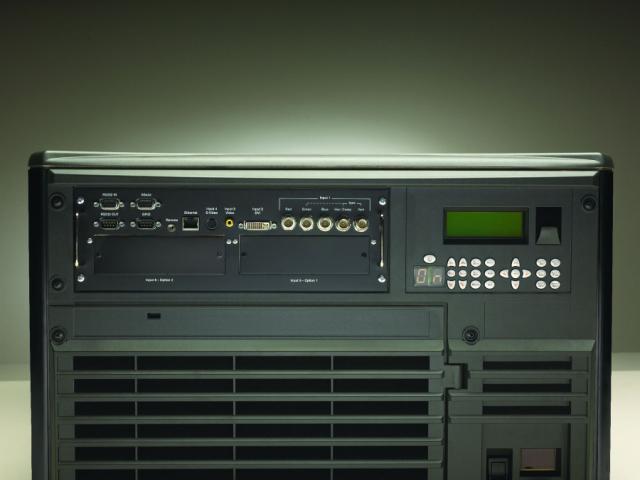

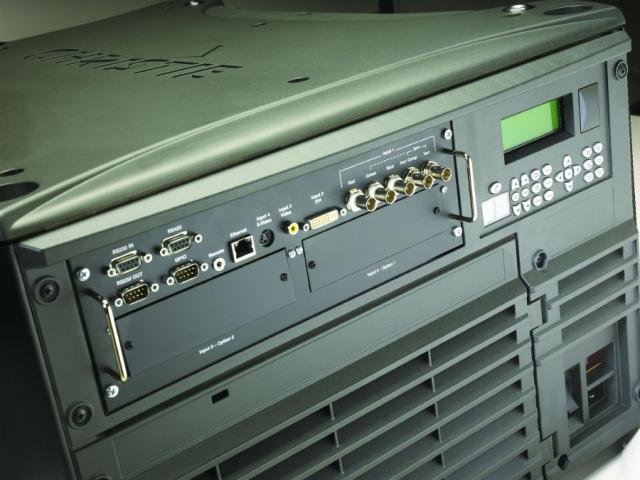

| Connections |
5 x BNC RGBHV in
DVi-I in
Cinch Video in
S-Video in
RJ45
RS232C RS422C
weitere Anschlüsse Optional
 |

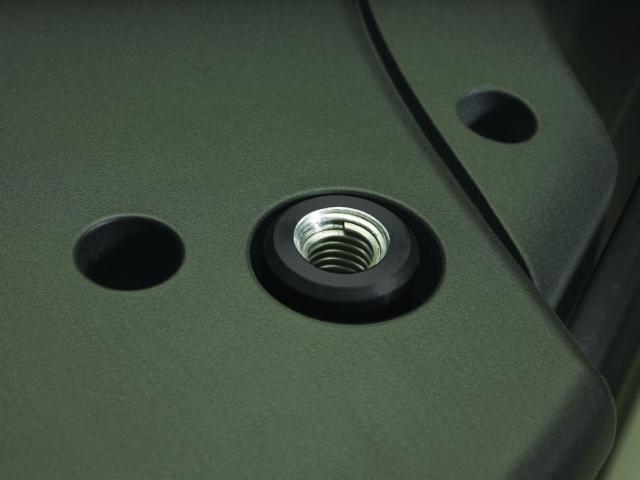

| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
660 x 313 x 566 mm (26"x12,3"x22,3") 116,92 L/dm³
|
| Operating Noise |
46dB |
Shift: 83 cm
|
Shift: 54 cm
|
|
Shift: 42 cm
|
| |
|
|
| Weight |
64,00 kg / 141,1 lbs. |
| Keystone |
- |
| Illumination |
90% |
| Frequenz |
H-sync: 15-120 kHz
V-sync: 23,97-150 Hz
Range max.: 220 MHz |
| Foot-Lamberts |
372 fL
/ max. 954 cm screen width |
| Candela m² |
1275 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion motorisch
Freeze
Gamma correction
Dynamic iris
Edge Blending
Picture-in-Picture
Password protection
Remote control with laser pointer
Control via web browser
Lan network compatible.
|
|
- |
In Comparison
The Christie Mirage S+12K compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
9 |
Weight: |
|
76 |
| Contrast: |
|
1 |
dB: |
|
58 |
| Black level: |
|
90 |
Power cons.: |
|
0 |
| Picture Total Points: | 33 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
20 |
| Ranking: |
494 (From: 576) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 4.5-7.3:1 | 4.48-7.3:1 | 896-1460 m |
56-50% |
22-26% |
Powered |
| 2.5-4.5:1 | 2.58-4.64:1 | 516-928 m |
56-50% |
23-26% |
Powered |
| 1.8-2.5:1 | 1.67-2.53:1 | 334-506 m |
55.5-50% |
27.5-21% |
Powered |
| 1.45-1.8:1 | 1.46-1.82:1 | 292-364 m |
55.5-50% |
25-23% |
Powered |
| 0.73:1 | 0.8-0.8:1 | 160-160 m |
19.5-18.5% |
10.5-11.5% |
Powered |
| 1.25:1 | 1.34:1 | 268 m |
59.5-46.5% |
33-18.5% |
No Zoom |
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2025-03-03
|
