Brief Introduction
Beta 2.5 |

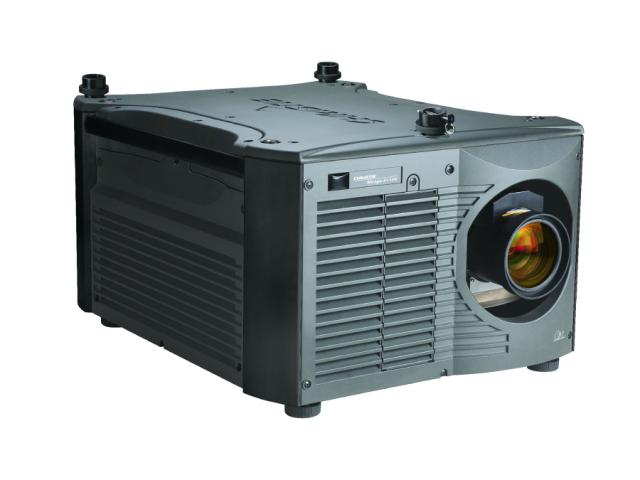

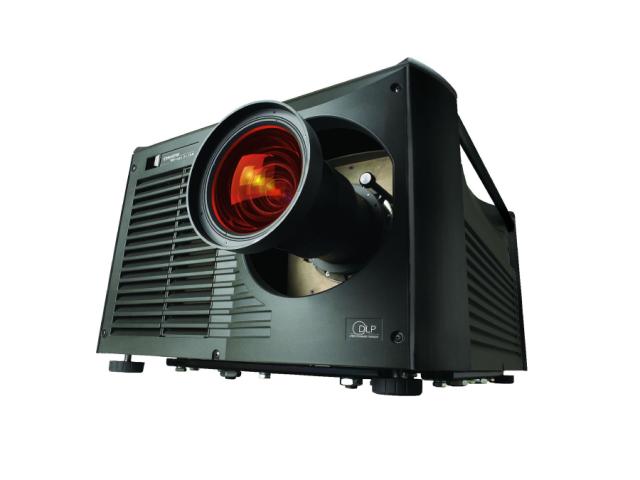

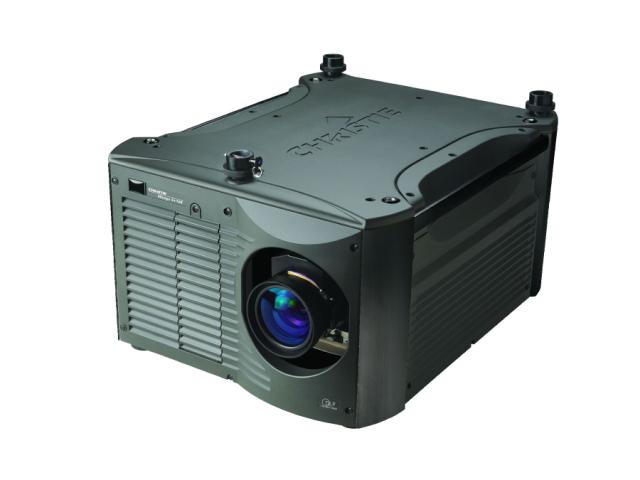

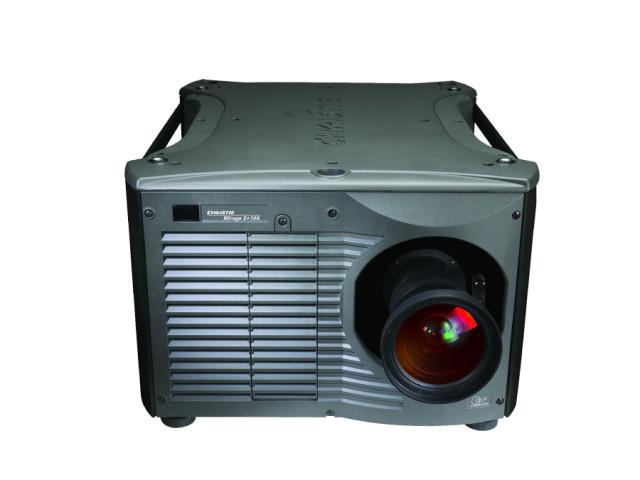

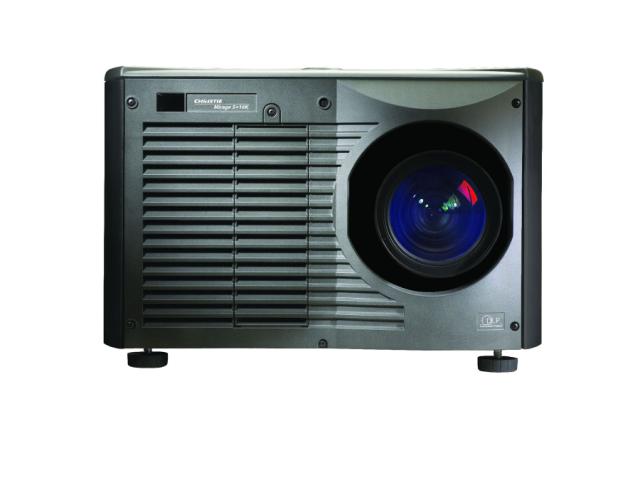

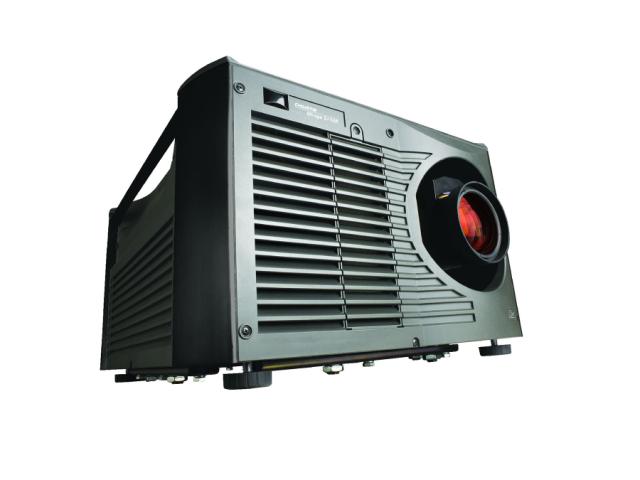

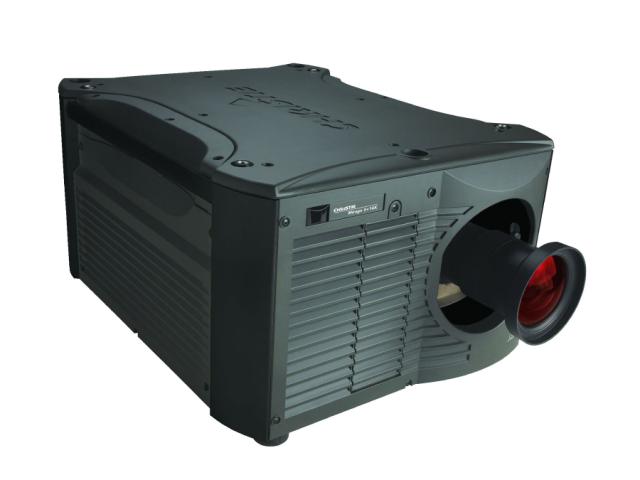

The large-screen Mirage S+16K 3D DLP has 16000 Ansi lumens, a contrast of 2000:1 and an SXGA+ 1400 x 1050 resolution. The built-in lens shift function provides freedom in projection adjustment. An image width of up to 1102 cm is possible, if the image width is smaller (we recommend max. 735 cm), rooms with residual light are also no problem. If the image is still too small, the integrated edge blending software can help to project a large image with additional projectors. The projector can also play 1080P without any problems. It was launched in 2008 and is no longer offered by the manufacturer Christie. It should also be noted that there are unfortunately no longer any replacement lamps available for the projector, neither originals nor replicas.
|
| Display Type |
3 x 0,95" DC3 DLP Chip
SXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
16000 |
Screen |
5333 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
8,0000 min. Lumen |
2,671 min. Lumen |
| Lens shift |
Vert.: +55% -50% Hori.: +21% -27,5% motorisch
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
QXGA 2048 x 1536 compressed |
| Video Modes |
PAL, SECAM, NTSC, EDTV HDTV 720p, 1080i, 1080p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
2400W Xenon Lamp
Article Nr.: 03-000883-01P
|
|
| Light Life |
750 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
5333 Lux |
|
Room light max.: |
1067 Lux |
|
Candela pro m²: |
1696 cd/m² |
|
Foot-Lamberts: |
495 fL |
|
 |
| 83 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
nein |

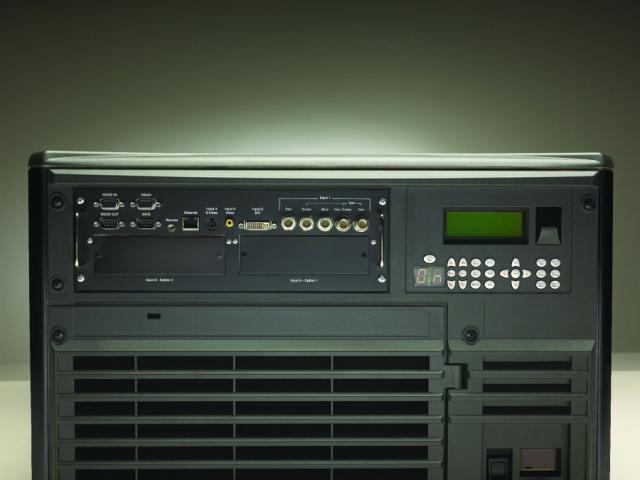

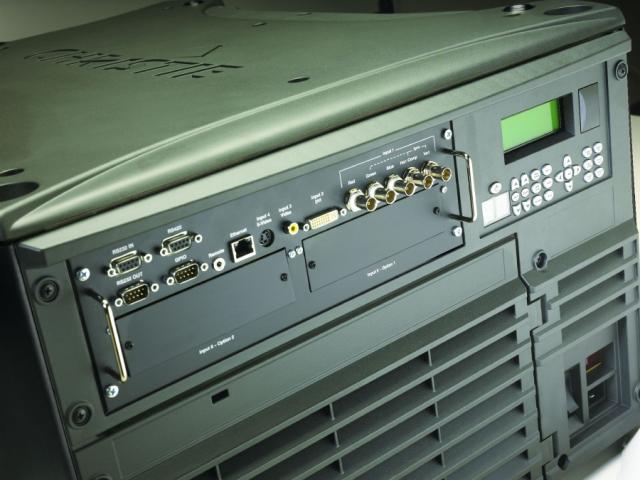

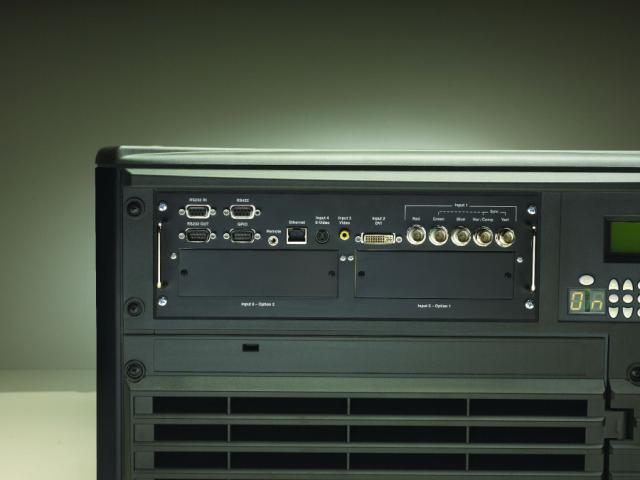

| Connections |
5 x BNC RGBHV in
DVi-I in
Cinch Video in
S-Video in
RJ45
RS232C RS422C
weitere Anschlüsse Optional
 |

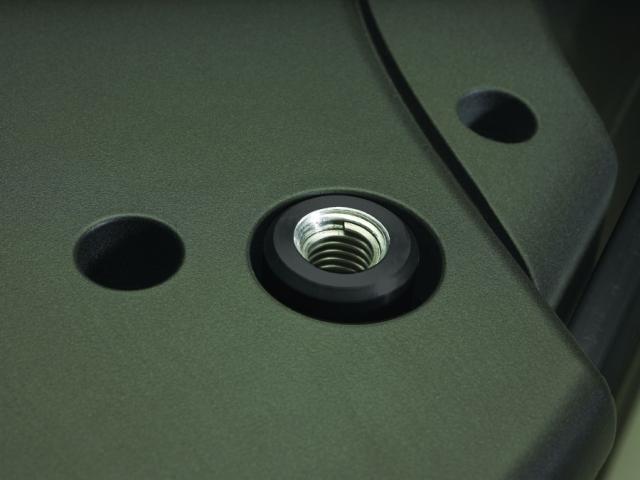

| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
815 x 384 x 631 mm (32,1"x15,1"x24,8") 197,48 L/dm³
|
| Operating Noise |
46dB |
Shift: 83 cm
|
Shift: 54 cm
|
|
Shift: 42 cm
|
| |
|
|
| Weight |
64,00 kg / 141,1 lbs. |
| Keystone |
- |
| Illumination |
90% |
| Frequenz |
H-sync: 15-120 kHz
V-sync: 23,97-150 Hz
Range max.: 220 MHz |
| Foot-Lamberts |
495 fL
/ max. 1102 cm screen width |
| Candela m² |
1696 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion motorisch
Freeze
Gamma correction
Dynamic iris
Edge Blending
Picture-in-Picture
Password protection
Remote control with laser pointer
Control via web browser
Lan network compatible.
|
|
- |
In Comparison
The Christie Mirage S+16K compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
12 |
Weight: |
|
76 |
| Contrast: |
|
1 |
dB: |
|
58 |
| Black level: |
|
87 |
Power cons.: |
|
0 |
| Picture Total Points: | 33 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
24 |
| Ranking: |
428 (From: 576) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 4.5-7.3:1 | 4.48-7.3:1 | 896-1460 m |
56-50% |
22-26% |
Powered |
| 2.5-4.5:1 | 2.58-4.64:1 | 516-928 m |
56-50% |
23-26% |
Powered |
| 1.8-2.5:1 | 1.67-2.53:1 | 334-506 m |
55.5-50% |
27.5-21% |
Powered |
| 1.45-1.8:1 | 1.46-1.82:1 | 292-364 m |
55.5-50% |
25-23% |
Powered |
| 0.73:1 | 0.8-0.8:1 | 160-160 m |
19.5-18.5% |
10.5-11.5% |
Powered |
| 1.25:1 | 1.34:1 | 268 m |
59.5-46.5% |
33-18.5% |
No Zoom |
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2025-03-03
|
