Christie DWU1075-GS


140-041106-XX | 171-010102-XX |

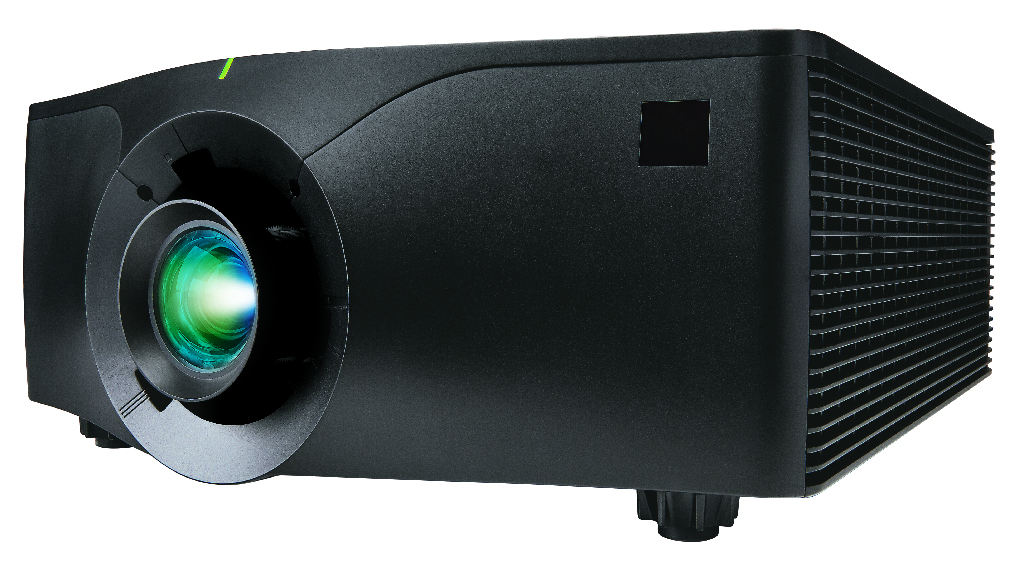

Image Christie DWU1075-GS
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview According to Christie, the DWU1075-GS model provides 9500 ANSI lumens, a contrast ratio of 300000:1 alongside a WUXGA 1920 x 1200 resolution. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day.
An integrated lens shift provides significant leeway for placement. The lens can be adjusted to precisely align the image even with off-center installations. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Projector Calculator is available to calculate the exact dimensions.
Looking at practical performance, up to 990 cm can be illuminated with 9500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 660 cm.
Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
The projector was released in 2017 and is officially no longer distributed by Christie. However, it remains frequently searched within our database.
Display Type       1 x 0,67" DMD DLP Chip
      WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
9500
Screen
4222 Lux (200 cm Screen width)
Contrast 300000:1 full on/off 300000:1 full on/off
Black Level 0,0317 min. Lumen 0,014 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-15%
 Lens shift
50%  56cm
50%  56cm
15%  30cm
15%  30cm
+ Projector
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom |
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source Laser
Order Accessories
Light Life 20000 h.
Operating Costs 0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux: 4222 Lux
Contrast: 300000:1
Candela pro m²: 1343 cd/m²
Foot-Lamberts: 392 fL
56 cm

Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio Nein

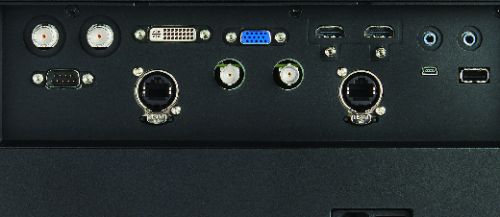

Connections 2 x HDMI 1.4 in
DVI-D in
D-sub 15pin in
Mini Jack Audio in und out
USB Typ A.B in
RS232C Din 9 pin in
HDBase​T in
RJ45 in
3GSDI in und out
HD15
Ceiling Mounting Yes, is possible.
Power 1070W
Size WxHxD 480 x 190 x 555 mm (18,9"x7,5"x21,9") 50,62 L/dm³
Operating Noise 35 / 32 dB in Eco Mode

Shift: 56 cm

Shift: 30 cm

Shift: 30 cm

Shift: 56 cm

Weight 24,90 kg / 54,9 lbs.
Keystone -
Illumination -
Frequenz H-sync: 15-91 kHz
V-sync: 24-85 Hz
Range max.: 162 MHz
Foot-Lamberts 392 fL / max. 990 cm screen width
Candela m² 1343 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Optional Wi-Fi network compatible.
Lan network compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Christie DWU1075-GS compared to others not current "Stationary" projectors.
Ansi-Lumen:
95 Weight:
90
Contrast:
6 dB:
95
Black level:
100 Power cons.:
85
Picture Total Points:67 Projector Total Points:90
Popularity Top 100
32 popularity points 12 popularity points 11 popularity points 2 popularity points 14 popularity points 6 popularity points
Points:
6
Ranking: 243 (From: 2536)
Optional accessories
ceiling bracket blackHalterung4583,60 €
ceiling bracket whiteHalterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
140-107109-XX 2.9-5.5:1 580-1100 m +/-50% +/-15% Powered
140-102104-xx 1.52-2.92:1 304-584 m +/-50% +/-15% Powered
140-131106-XX 1.22-1.52:1 244-304 m +/-50% +/-15% Powered
140-101103-xx 0.95-1.22:1 190-244 m +/-50% +/-15% Powered
140-119102-01 0.75-0.95:1 150-190 m Powered
140-143109-XX 0.65-0.75:1 130-150 m Powered
140-133108-XX 0.36:1 72 m No Zoom
Status 2017 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Christie Website
Product Sheet english
Product Sheet english
Product Sheet english HC
User Manual english (11.2 MB)

Projektor Christie DWU1075-GS Projektor Christie DWU1075-GS Projektor Christie DWU1075-GS Projektor Christie DWU1075-GS Projektor Christie DWU1075-GS Projektor Christie DWU1075-GS Projektor Christie DWU1075-GS
