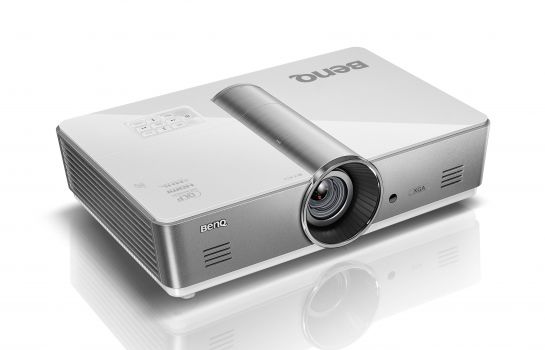

With the SX920, Benq offers a 3D-DLP projector that features 5000 ANSI lumens, a contrast of 5000:1 and a resolution of XGA 1024 x 768. According to Benq, the included lamp lasts up to 2000 hours. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The Lens Shift Calculator helps find the optimal installation dimensions. A look at the light output reveals: The 5000 ANSI lumens are sufficient to illuminate an image width of up to 616 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 411 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2015, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5000
Screen
1667 Lux (200 cm Screen width)
Contrast
5000:1 full on/off
5000:1 full on/off
Black Level
1,0000 min. Lumen
0,334 min. Lumen
Lens shift
Vert.: +80% --65% Hori.: +/-2,5%
Lens shift
15%
23cm
2.5%
5cm
2.5%
5cm
+
Projector 23 cm over screen top edge.
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
2 x HDMI 1.4 mit MHL in
DVI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
Ceiling Mounting
Yes, is possible.
Power
490W
Size WxHxD
411,4 x 118,4 x 267,5 mm (16,2"x4,7"x10,5") 12,95 L/dm³
Real Full HD 3D
