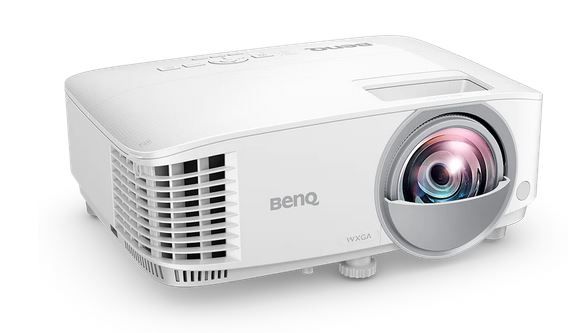

Known as the MW826STH, this DLP projector by Benq features basic specs of 3500 ANSI lumens, a contrast of 20000:1 at a WXGA 1280 x 800 resolution. According to Benq, the included lamp lasts up to 6000 hours – mathematically sufficient for 8.2 years based on two hours of use per day. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 98 cm. Looking at practical performance, up to 601 cm can be illuminated with 3500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 401 cm. For media input, video signals up to 1080P are supported. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Display Type
1 x 0,65" DMD DLP WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3500
Screen
1400 Lux (200 cm Screen width)
Contrast
20000:1
20000:1
Black Level
0,1750 min. Lumen
0,07 min. Lumen
Offset
52,5% 3 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel HDTV 1920 x 1080 compressed
Calculated brightness quality The screen width may also be larger. Perfect
98 cm (no Zoom)
Lux:
1400 Lux
Contrast:
20000:1
Candela pro m²:
445 cd/m²
Foot-Lamberts:
130 fL
66 cm
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
0,49:1
Audio
1 x 10W
Connections
2x HDMI
2x Computer In-1 (D-sub 15pin, Female)
1x Monitor out (D-sub 15pin,Female)
1x Composite Video in
1x S-Video in
2x Audio in (klinke 3,5mm)
1x Audio out (klinke 3,5mm)
1x USB TypeA (power only 5V/1.5A)
1x USB (Type mini B)(Download & page/down)
1x RS232 In
1x LAN Port(RJ45)
Full HD 1080P compatible
