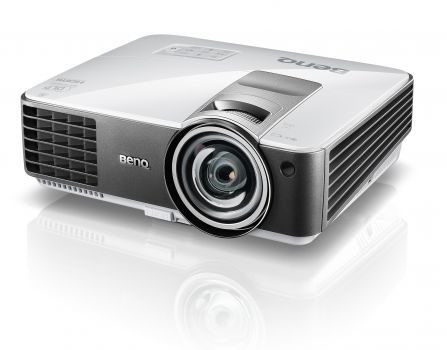

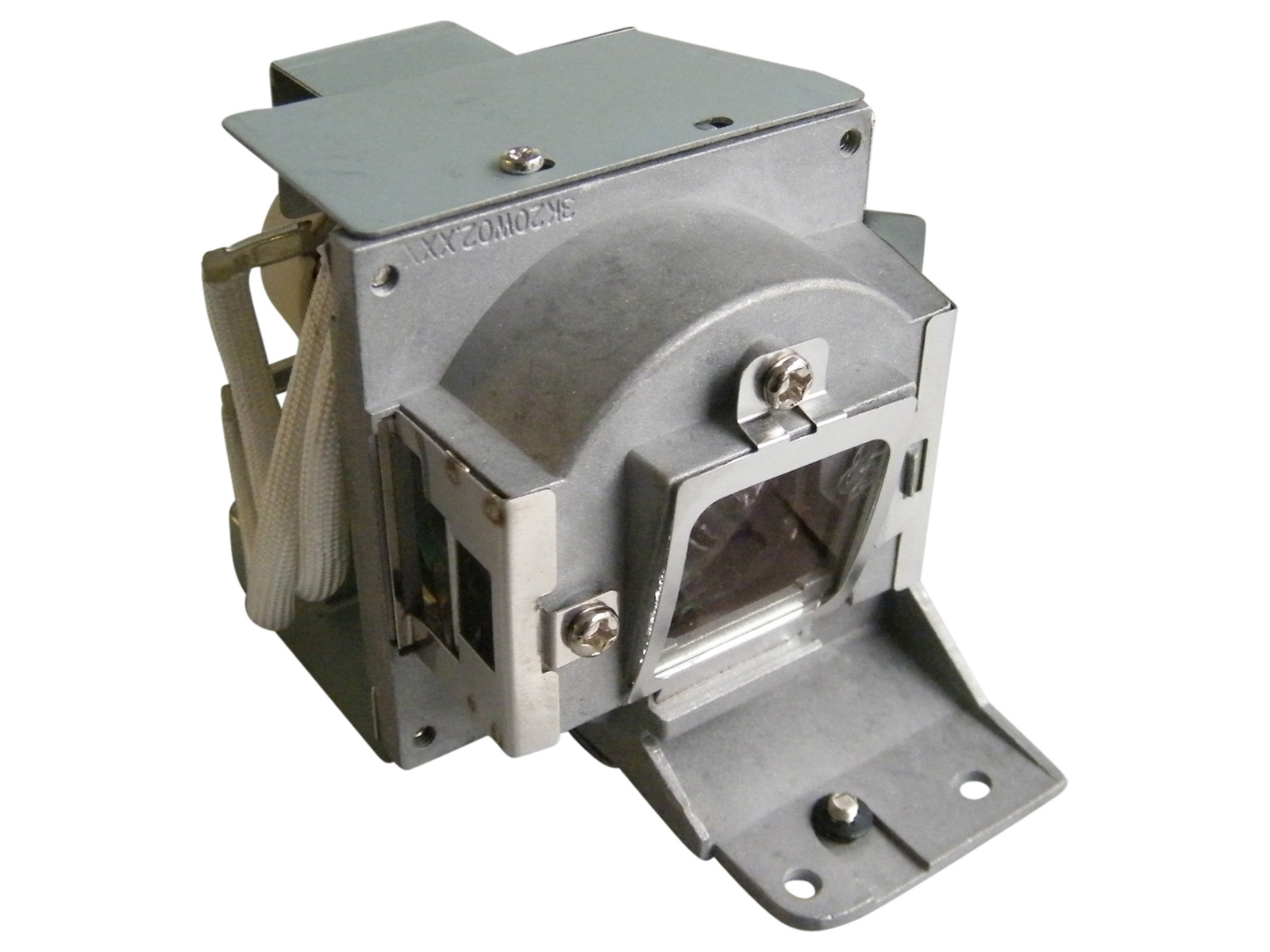

The hardware properties of the MW820ST manufactured by Benq include 3000 ANSI lumens, a WXGA 1280 x 800 resolution and a contrast value of 13000:1. The manufacturer rates the durability of the included lamp at 4000 hours – mathematically sufficient for 5.5 years based on two hours of use per day. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 98 cm. Looking at practical performance, up to 556 cm can be illuminated with 3000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 371 cm. For media input, video signals up to 1080P as well as 3D are supported. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. Since entering the market in 2013, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,55" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3000
Screen
1200 Lux (200 cm Screen width)
Contrast
13000:1 full on/off
13000:1 full on/off
Black Level
0,2308 min. Lumen
0,092 min. Lumen
Offset
55% 6 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel UXGA 1600 x 1200 compressed
Calculated brightness quality The screen width may also be larger. Perfect
98 cm (no Zoom)
Lux:
1200 Lux
Contrast:
13000:1
Candela pro m²:
380 cd/m²
Foot-Lamberts:
111 fL
69 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,6 f=6,9mm
Throw Ratio
0,49:1
Audio
1 x 10W
Connections
HDMI 1.3 in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RJ45 in
RS232C Din 9 pin in
USB Typ B
Mikrofon in
Real Full HD 3D Full HD 1080P compatible Freeze Blackboard Modus Eco Mode Automatic and manual vertical keystone correction Kensington Slot sRGB Password protection BrilliantColor™ PJLink™ Lan network compatible. Short-throw projector Crestron®-Software compatible. Digital zoom 6-segment colour wheel (RYWCBG)
Real Full HD 3D
