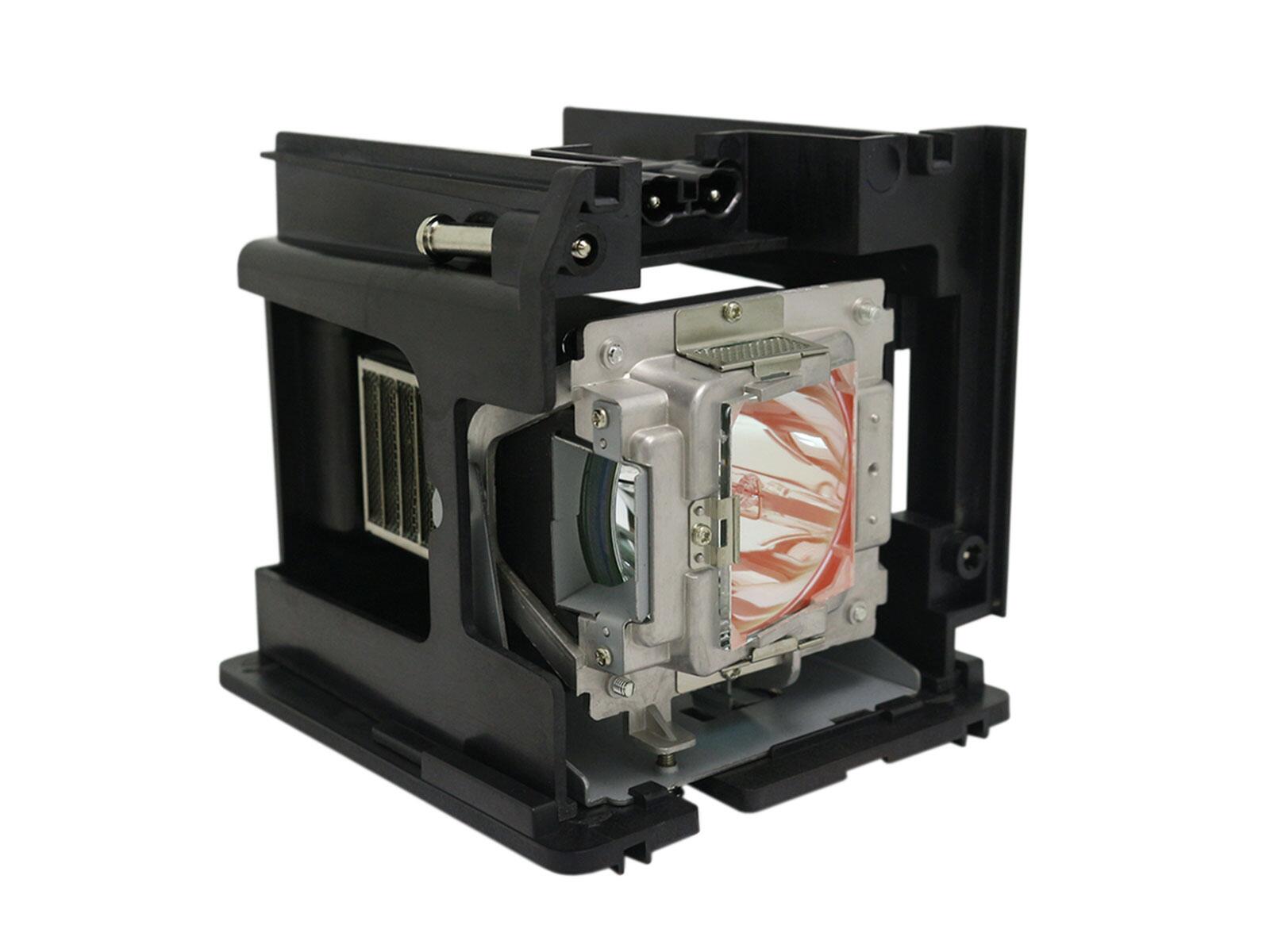

As a projector, the Benq PU9220 combines DLP technology with a resolution of WUXGA 1920 x 1200, and is additionally specified with 5000 ANSI lumens and a contrast of 4000:1. In operating mode, the installed projector lamp offers a lifespan of 1500 hours. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Projection Calculator is available to calculate the exact dimensions. Regarding projection size, the value of 5000 ANSI lumens allows for an image width of up to 718 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 479 cm. Regarding signal processing, the model is compatible with incoming 1080P content. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2015, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5000
Screen
2222 Lux (200 cm Screen width)
Contrast
4000:1 full on/off
4000:1 full on/off
Black Level
1,2500 min. Lumen
0,556 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel WUXGA 1920 x 1200 compressed
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2222 Lux
Contrast:
4000:1
Candela pro m²:
706 cd/m²
Foot-Lamberts:
206 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
HDMI 1.4 in
DVI-D in
D-sub 15pin in und out
5 x BNC RGBHV in
YUV in
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A, B in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
3D Sync out x 1
Full HD 1080P compatible
