Brief Introduction
Beta 2.5 |

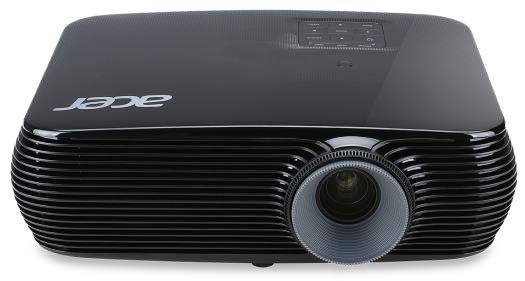

The Acer X1126H standard portable 3D DLP projector has 4000 Ansi lumens, a contrast of 20000:1 and an SVGA 800 x 600 resolution. The manufacturer specifies a lamp life of 15000 hours, which is over 20.5 years if enjoyed for two hours every day. 4000 Ansi lumens ensure that a picture width of 551 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 367 cm. The HDMI MHL (Mobile High-Definition Link) port allows 1080p / 60 Hz image mirroring (screen mirroring) to be transmitted from a smartphone while it is being charged at the same time via the connection. Playing 1080P and 3D is also no problem for the projector. This model is no longer offered by Acer.
|
| Display Type |
1 x 0,55" DC3 DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 / 3200 im Eco Mode |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,2000 min. Lumen |
0,067 min. Lumen |
| Offset |
65% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

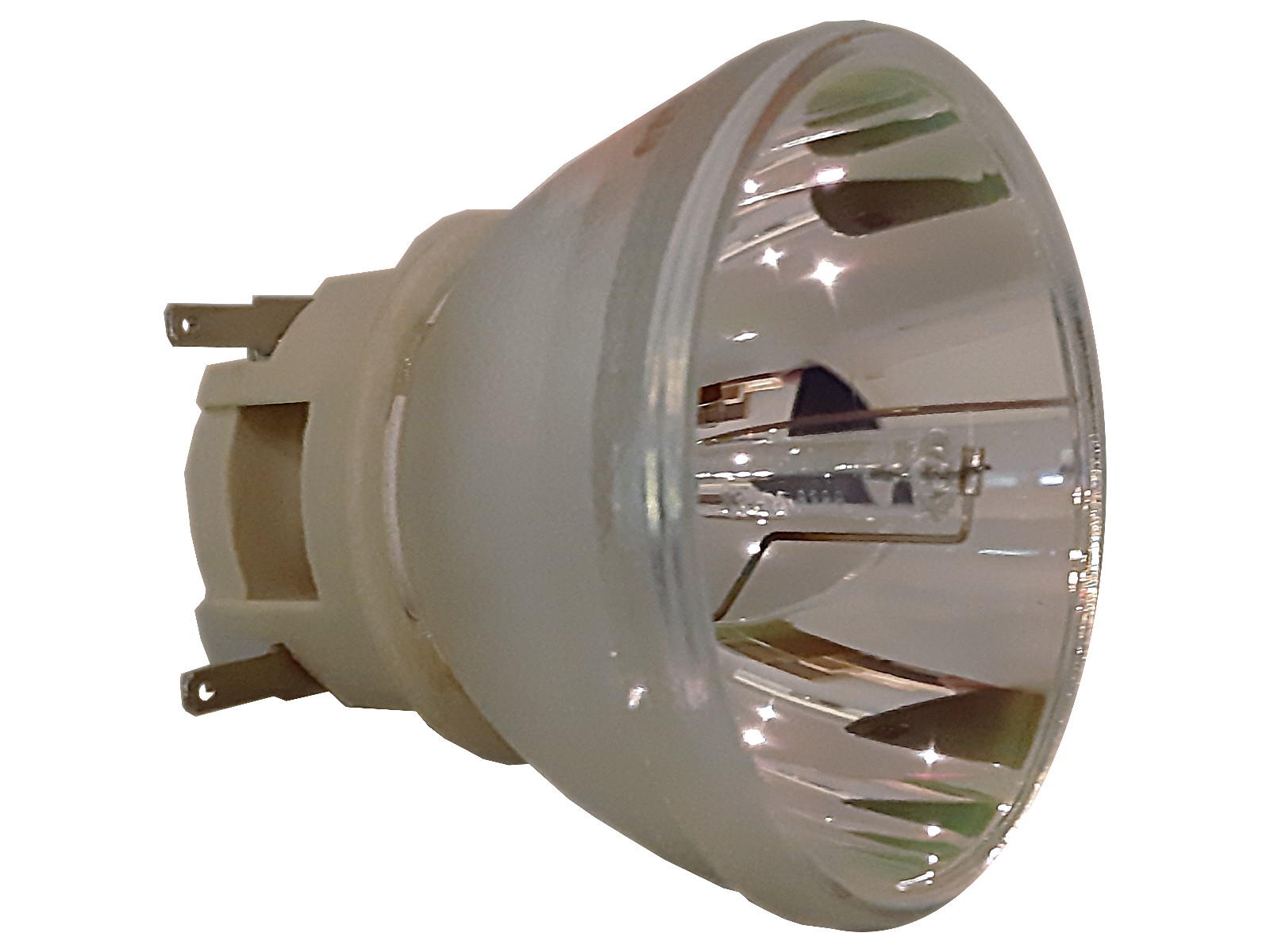

220W UHP Lamp
Article Nr.: MC.JP911.001
|
|
| Light Life |
4500 h. 15000 in Eco Mode |
| Operating Costs |
|
|
388 - 432 cm
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,11 |
| Objective |
F=2,41-2,53 f=21,85-24,01 mm |
| Throw Ratio |
1,94-2,16:1 show |
| Audio |
1 x 3W |

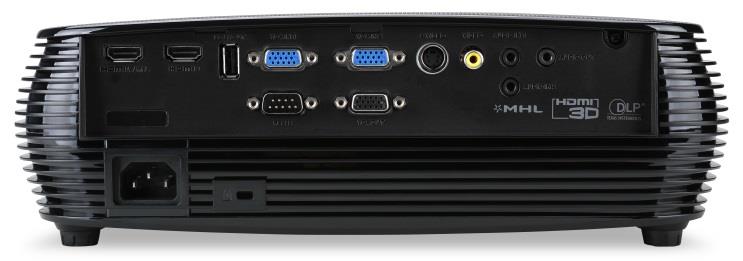

| Connections |
HDMI mit MHL in
HDMI 1.4ain
2 xD-sub 15pin in 1 x out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
260W |
| Size WxHxD |
315 x 98 x 214 mm (12,4"x3,9"x8,4") 6,61 L/dm³
|
| Operating Noise |
32 / 24 dB in Eco Mode |
|
| Weight |
2,60 kg / 5,73 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
124 fL
/ max. 551 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Optional Wi-Fi network compatible.
6-segment colour wheel
Zoom/digital 1:1.1 manual zoom/2x
|
|
über HDMI MHL |
In Comparison
The Acer X1126H compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
44 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 50 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2366 (From: 7662) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2017-06-07 14:40:56
|
| Data |
 Product Sheet english HC
User Manual english (8.71 MB)

|
Acer Website
