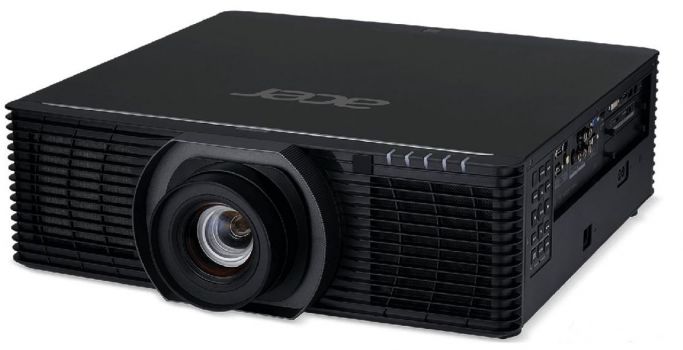

The basic data of the Acer F8220 includes 8800 ANSI lumens, a resolution of XGA 1024 x 768 as well as a contrast of 7500:1. According to Acer, the included lamp lasts up to 2500 hours. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Distance Calculator. Looking at practical performance, up to 817 cm can be illuminated with 8800 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 545 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2018 and is officially no longer distributed by Acer.
Display Type
1 x 0,7" Type A DMD DLP XGA 4/3 Ti Digital Light Processing Chip
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Phillips 365W Lamp
Light Life
2500 h. / 3000 h. ECO
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
338 - 504 cm
Lux:
2933 Lux
Contrast:
7500:1
Candela pro m²:
935 cd/m²
Foot-Lamberts:
273 fL
75 cm
•
Focus
Powered
Zoom
Powered 1,49
Objective
Throw Ratio
optional
Audio
-
Connections
Analog RGB/Component Video (D-sub) x 1
DVI-D x 1
S-Video (Mini DIN) x 1
5 BNC (RGBHV) x 1
Composite Video (RCA) x 1
HDMI/MHL (Video, Audio, HDCP) x 1
Analog RGB (D-sub) x 1
DC Out (5V/2A, USB Type A) x 1
3D SYNC (VESA Stereo) x 1
RS232 input (D-sub) x 1
RS232 output (D-sub) x 1
DC 12V (Stereo mini jack, Screen control) x 2
Wired remote control port input (Mini jack) x 1
Wired remote control port output (Mini jack) x 1
USB (Type B) x 1
Ethernet port (RJ45) x 1
Ceiling Mounting
Yes, is possible.
Power
840W / 740W ECO
Size WxHxD
552,5 x 179,5 x 548 mm (21,7"x7"x21,6") 54,15 L/dm³
Full HD 1080P compatible Lens shift Funktion Eco Mode Automatic and manual vertical keystone correction Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. Crestron projector remote control for Windows & Mac PC
Full HD 1080P compatible
