Brief Introduction
Beta 2.5 |
The Acer H6542BDK 3D DLP home cinema projector has 4000 Ansi lumens, a contrast of 10000:1 and an HDTV 1920 x 1080 resolution. The manufacturer Acer specifies a lamp life of 10000 hours, which converts to over 13.7 years at 2 hours per day. The ambient light sensor allows the projector to automatically optimize the projected image. An image width of up to 643 cm is possible as the projector has 4000 Ansi lumens. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 429 cm. It is also Full HD 1080P and 3D compatible.
|
| Display Type |
1 x 0,47" DLP DC3 Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 / 3200 im Eco Mode |
Screen |
1778 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,4000 min. Lumen |
0,178 min. Lumen |
| Offset |
55% show
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Homecinema | Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
245W Osram Lamp
Article Nr.: UC.JT211.001
|
|
| Light Life |
4000 h. / 10000 h. in Eco Mode |
| Operating Costs |
|
|
300 - 330 cm
|
 |
|
Lux: |
1778 Lux |
|
Room light max.: |
356 Lux |
|
Candela pro m²: |
565 cd/m² |
|
Foot-Lamberts: |
165 fL |
|
 |
| 62 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2-2,05 f=15,85-17,44 mm |
| Throw Ratio |
1,5-1,65:1 show |
| Audio |
1 x 3W Mono |
| Connections |
2 x HDMI 1.4a in
D-sub 15pin in und out
Mini Jack Audio in und out
USB
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
290W / 203W Eco Mode |
| Size WxHxD |
322 x 91 x 225 mm (12,7"x3,6"x8,9") 6,59 L/dm³
|
| Operating Noise |
32 / 26 dB in Eco Mode |
|
| Weight |
2,60 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
165 fL
/ max. 643 cm screen width |
| Candela m² |
565 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
24/7 continuous operation capable
Optional Wi-Fi network compatible.
Ambient Light Sensor.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Acer H6542BDK compared to others current "Homecinema" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
57 |
| Black level: |
|
88 |
Power cons.: |
|
74 |
| Picture Total Points: | 42 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
17 |
| Ranking: |
52 (From: 110) |
|
|
|
| Please note |
Bag (MC.JR211.005)
3D glasses (MC.JFZ11.00B)

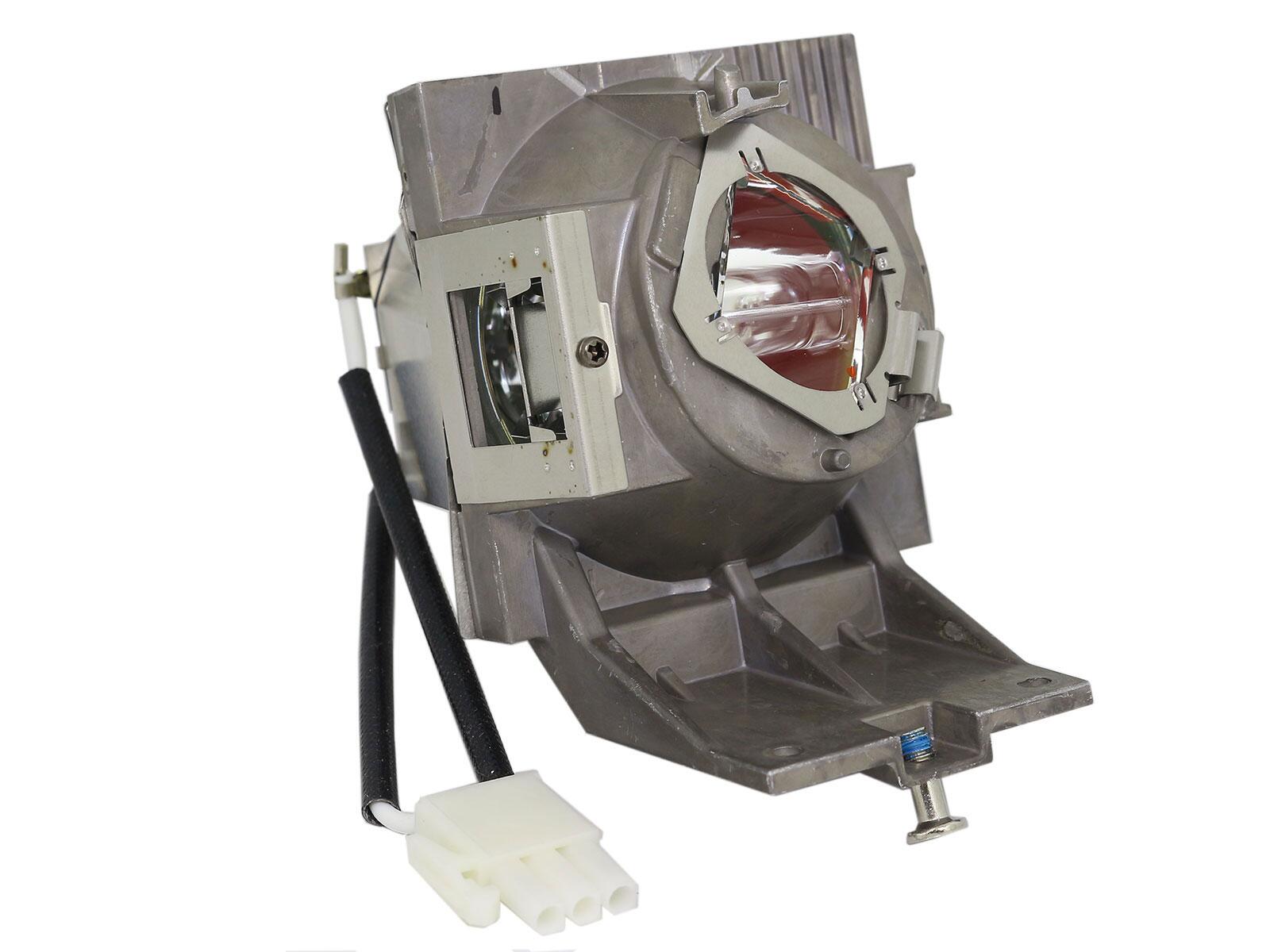

Lamp (UC.JT211.001)
Ceiling mount (MC.JLC11.003)
|
|
|
| Status |
2022 Current model // Last update of the data: 2024-09-30
Created: 2023-08-04 09:41:23
|
| Data |
 Product Sheet english HC
User Manual english (4.42 MB)

|
Acer Website
