Acer H6805BDa
MR.JTB11.00S

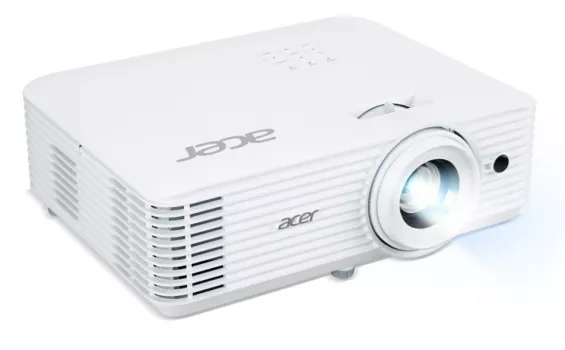

Image Acer H6805BDa
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview As a projector for the Homecinema sector, the Acer H6805BDa is equipped with 4000 ANSI lumens, a UHD (4K2K) 3840 x 2160 resolution and a contrast of 10000:1. In operating mode, the installed projector lamp offers a lifespan of 5000 hours. A daily usage of 2 hours makes an operational lifespan of 6.8 years possible.
For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups.
A look at the light output reveals: The 4000 ANSI lumens are sufficient to illuminate an image width of up to 643 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 429 cm.
Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. As an additional feature, an integrated media player enables the direct playback of files without an external source device.
The projector was released in 2022 and is officially no longer distributed by Acer. However, it remains frequently searched within our database.
Display Type       1 x 0,47" DLP Chip
      HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 4000 / 3200 im Eco Mode
Screen
 1778 Lux (200 cm Screen width)
Contrast 10000:1 10000:1
Black Level 0,4000 min. Lumen 0,178 min. Lumen
Offset 60% 11 cm over screen top edge →
SCREEN
+ Projector
Resolution UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p
Media player formats: 4K (VP9) and 4K 10bits (H265/H264) video decodes, up to 60fps 1080p other video decoders (VC-1, MPEG-1/2/4, VP8) MP3, AAC, WMA, FLAC, OGG JPEG
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p)
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Homecinema | Gaming | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source 240W Lampe
Article Nr.: MC.JTA11.001, UC.JTA11.001
Order Accessories
77,65 - 211,64 €
Light Life 5000 h. / 10000 h. in Eco Mode
Operating Costs
| cheap costly |
1
  5,41% / 0,04 €
Calculated brightness quality
The screen width may also be larger. Perfect
300 - 332 cm
Lux: 1778 Lux
Contrast: 10000:1
Candela pro m²: 565 cd/m²
Foot-Lamberts: 165 fL
68 cm


Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,1
Objective F=1,98-2,02 f=15,84-17,44 mm
Throw Ratio 1,5-1,66:1 show
Audio 1 x 10W Mono
Connections 2 x HDMI 2.0 in
D-Sub 15 Pin in
S/PDIF
Mini Jack Audio in und out
USB-A in (Service)
RS232C Din 9 pin in
Ceiling Mounting Yes, is possible.
Power 310W / 215W Eco
Size WxHxD 313 x 133,7 x 240 mm (12,3"x5,2"x9,4") 9,99 L/dm³
Operating Noise 33 / 30 dB in Eco Mode
Key: 241 cm
Key: 173 cm
Key: 173 cm
Key: 105 cm
Weight 2,88 kg / 4,41 lbs.
Keystone Vert.: +/-30°
Hori.: +/-30°
Illumination -
Frequenz H-sync: 15-291 kHz
V-sync: 24-240 Hz
Foot-Lamberts 165 fL / max. 643 cm screen width
Candela m² 565 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Integrated Mediaplayer
Eco Mode
Kensington Slot
High Dynamic Range (HDR)
Optional Wi-Fi network compatible.
Game Mode
Android V9.0
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Acer H6805BDa compared to others not current "Homecinema" projectors.
Ansi-Lumen:
43 Weight:
99
Contrast:
1 dB:
39
Black level:
74 Power cons.:
78
Picture Total Points:39 Projector Total Points:72
Popularity Top 100
6 popularity points 16 popularity points 11 popularity points 6 popularity points 16 popularity points 12 popularity points
Points:
12
Ranking: 188 (From: 990)
Optional accessories
lamp OriginalMC.JTA11.001, UC.JTA11.001211,64 €
Remote MC.JMV11.00G27,67 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2022 Discontinued (EOL) // Last update of the data: 2026-06-09
