Brief Introduction
Beta 2.5 |

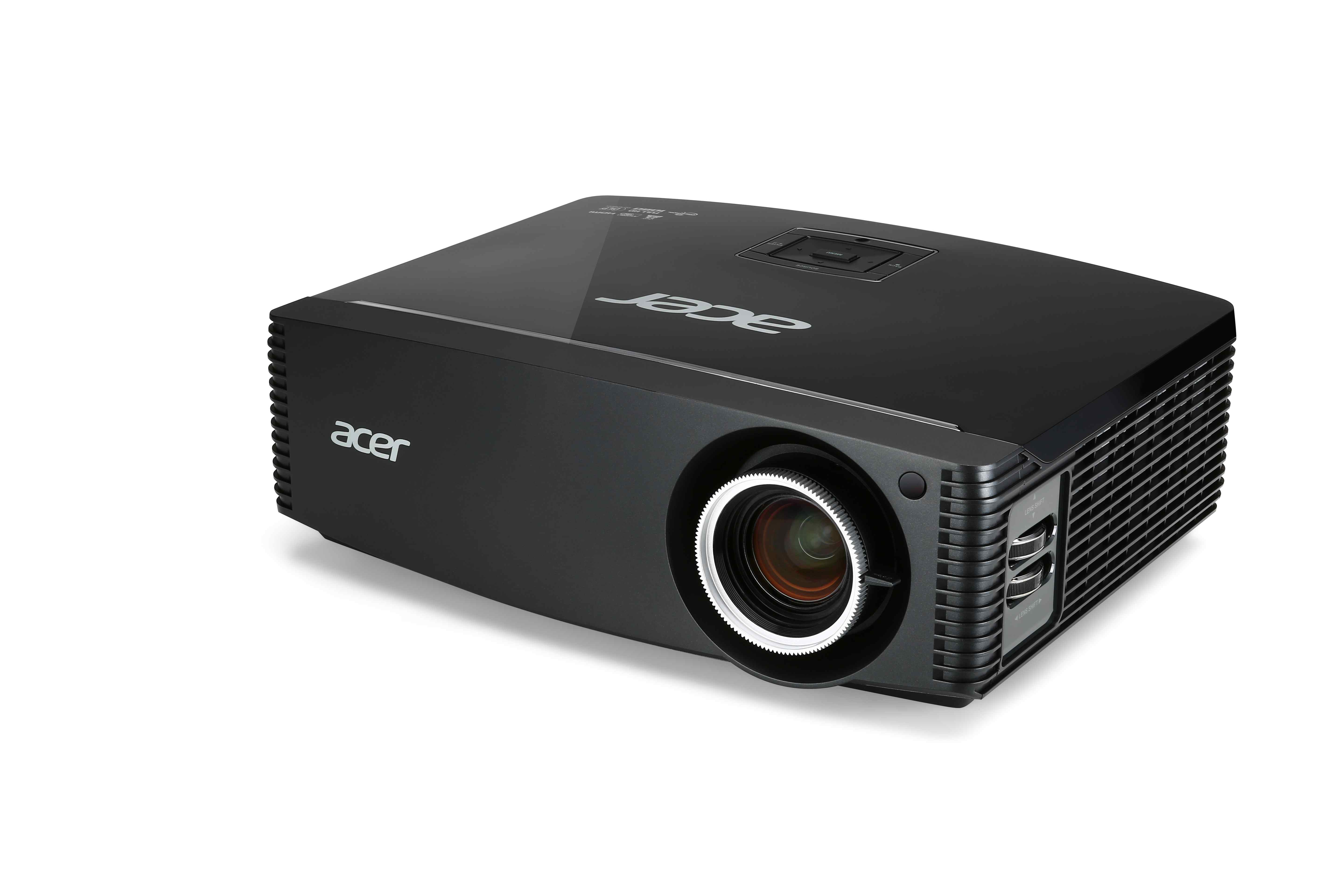

The Acer P7305W home cinema 3D BrilliantColor DLP projector has 5000 Ansi lumens, a contrast of 10000:1 and a WXGA 1280 x 800 resolution. The integrated lens shift gives freedom when positioning the projector. An image width of up to 718 cm is possible as the projector has 5000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 479 cm. The model is also Full HD 1080P and 3D compatible. On the market since 2014, the model is no longer offered by the manufacturer Acer.
|
| Display Type |
1 x 0,65" DC3 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5000 / 4000 im Eco Mode |
Screen |
2000 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,5000 min. Lumen |
0,2 min. Lumen |
| Lens shift |
Vert.: +70% --45% Hori.: +/-15%
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
| Application |
Homecinema | Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
370W Lamp
Article Nr.: MC.JH211.002
|
|
| Light Life |
2000 h. 4500 h. in Eco Mode |
| Operating Costs |
-
|
|
308 - 462 cm
|
 |
|
Lux: |
2000 Lux |
|
Room light max.: |
400 Lux |
|
Candela pro m²: |
637 cd/m² |
|
Foot-Lamberts: |
186 fL |
|
 |
| 88 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,5 |
| Objective |
F=2,45-2,9 f=22,18-33,27 mm |
| Throw Ratio |
1,54-2,31:1 show |
| Audio |
2 x 3W |
| Connections |
3 x HDMI 1.4a in
DVI mit HDCP in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in und out
12V Trigger out
USB Typ A,B
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
460W |
| Size WxHxD |
398 x 130 x 310 mm (15,7"x5,1"x12,2") 16,04 L/dm³
|
| Operating Noise |
36 / 30 dB in Eco Mode |
Key: 258 cm
Shift: 88 cm |
Shift: 30 cm
|
|
Shift: 30 cm
|
| |
|
|
| Weight |
7,00 kg / 15,43 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 30-100 kHz
V-sync: 50-144 Hz
|
| Foot-Lamberts |
186 fL
/ max. 718 cm screen width |
| Candela m² |
637 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
Password protection
BrilliantColor™
Lan network compatible.
Crestron®-Software compatible.
6 Segment Colour Wheel
144 Hz 3D
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Acer P7305W compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
47 |
| Black level: |
|
94 |
Power cons.: |
|
88 |
| Picture Total Points: | 48 |
Projector Total Points: | 78 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
366 (From: 984) |
|
|
|
|
|
| Status |
2014 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2014-03-13 13:21:11
|
