Sanyo PLV HD2000N / E

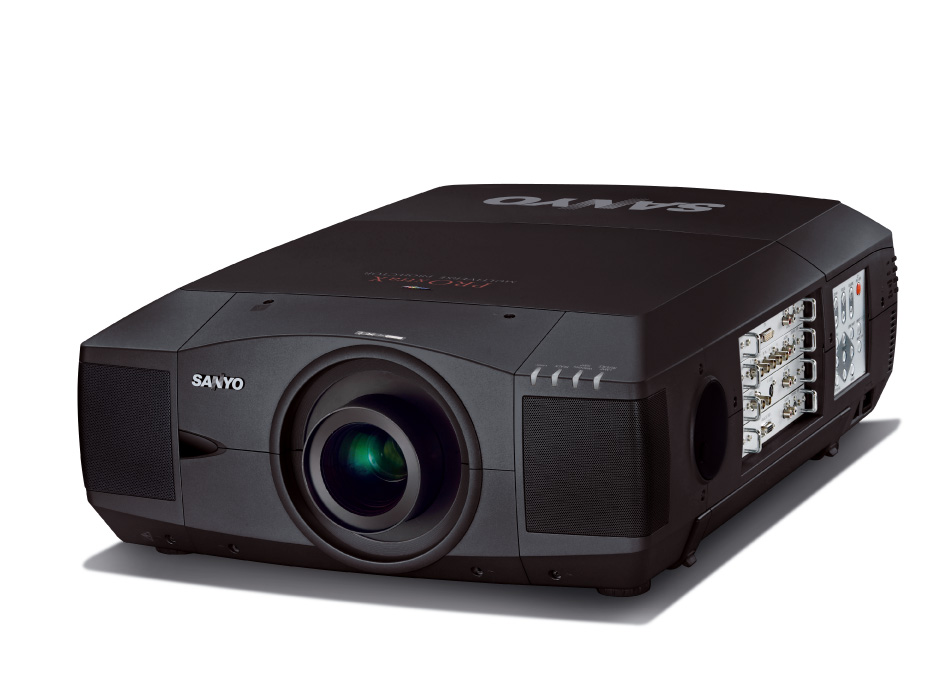

Image Sanyo PLV HD2000N / E
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview As a projector, the Sanyo PLV HD2000N / E combines LCD technology with a resolution of HD2K 2048 x 1080, and is additionally specified with 7000 ANSI lumens and a contrast of 1000:1. According to Sanyo, the included lamp lasts up to 1500 hours.
The specifications indicate lens shift optics, allowing the image to be physically shifted without introducing digital image artifacts. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Projection Calculator.
Looking at practical performance, up to 729 cm can be illuminated with 7000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 486 cm.
Regarding signal processing, the model is compatible with incoming 1080P content.
The projector was released in 2006 and is officially no longer distributed by Sanyo. However, it remains frequently searched within our database.
Display Type       3 x 1,65" LCD TFT Panel
      HD2K 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
7000
Screen
2333 Lux (200 cm Screen width)
Contrast 1000:1 1000:1
Black Level 7,0000 min. Lumen 2,34 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-10% motorisch
 Lens shift
50%  75cm
50%  75cm
10%  20cm
10%  20cm
+ Projector
Resolution HD2K 2048 x 1080
2.211.840 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source 4 x 300W UHP Lamp
Article Nr.: 610-327-4928 / LMP100
Order Lamp
67,31 - 120,17 €
Light Life 1500 h.
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
Lux: 2333 Lux
Contrast: 1000:1
Candela pro m²: 743 cd/m²
Foot-Lamberts: 217 fL
75 cm

Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio 3W Stereo
Connections DVI-I mit HDCP in
Dual link SDI
D-sub 15pin in
5 x BNC RGBHV in
Cinch Stereo in
RS232C
Weitere Anschlüsse optional.
Ceiling Mounting Yes, is possible.
Power 1500W
Size WxHxD 581 x 252 x 783 mm (22,9"x9,9"x30,8") 114,64 L/dm³
Operating Noise -

Shift: 75 cm

Shift: 20 cm

Shift: 20 cm

Shift: 75 cm

Weight 37,50 kg / 82,67 lbs.
Keystone -
Illumination 90%
Frequenz H-sync: 15-120 kHz
V-sync: 48-120 Hz
Range max.: 230 MHz
Foot-Lamberts 217 fL / max. 729 cm screen width
Candela m² 743 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion motorisch
Freeze
Eco Mode
Gamma correction
Optional LAN network compatible.
Screen Mirroring -
In Comparison
The Sanyo PLV HD2000N / E compared to others not current "Stationary" projectors.
Ansi-Lumen:
69 Weight:
83
Contrast:
1 dB: 0
Black level:
79 Power cons.:
79
Picture Total Points:50 Projector Total Points:0
Popularity Top 100
8 popularity points 14 popularity points 17 popularity points 2 popularity points 17 popularity points 6 popularity points
Points:
6
Ranking: 214 (From: 2536)
Optional accessories
bulb only Osram NLMP490394,31 €
single lamp ruby Ruby-LMP4903120,17 €
single lamp Original610-327-4928 / LMP100 / ET-SLMP100EOL €
Compatible lamp LMP-K1605167,31 €
Universal Remote Fernb-uni-V322,31 €
ceiling bracketHeavyDuty470,94 €
Airfilter universaluni3mm18,15 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
LNS-T03 6.23-9.7:1 1246-1940 m +/-50% +/-10% Powered
LNS-T02 4.4-6.13:1 880-1226 m +/-50% +/-10% Powered
LNS-M01Z 3.44-4.45:1 688-890 m +/-50% +/-10% Powered
LNS-S03 2.6-3.52:1 520-704 m +/-50% +/-10% Powered
LNS-S02Z 2.01-2.63:1 402-526 m +/-66.7% +/-10% Powered
LNS-W04 1.56-2.05:1 312-410 m +/-39% +/-10% Powered
LNS-W02Z 1.4-1.83:1 280-366 m +/-39% +/-10% Powered
LNS-W06 1.1-1.5:1 220-300 m +/-39% +/-10% Powered
LNS-T01Z 6.9:1 1380 m +/-50% +/-10% No Zoom
LNS-W01Z 1.2:1 240 m +/-39% +/-10% No Zoom
LNS-W03 0.8:1 160 m 0.0% Fix No Zoom
Status 2006 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Sanyo Website
Product Sheet english
Product Sheet english
Product Sheet english HC
Product Sheet USA
User Manual english (1.83 MB)

Projektor Sanyo PLV HD2000N / E
