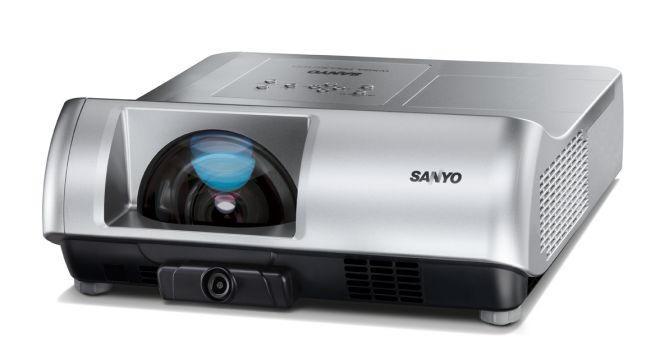

The PLC WL2503 model is a LCD projector from Sanyo, intended for Whiteboard applications, offering 2500 ANSI lumens, a contrast of 500:1 at WXGA 1280 x 800. The manufacturer lists the lamp life at 3000 hours. Regarding projection size, the value of 2500 ANSI lumens allows for an image width of up to 508 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 339 cm. Regarding signal processing, the model is compatible with incoming 1080P content. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Specifically for the educational or business sector, an interactive whiteboard function is also integrated. The projector was released in 2011 and is officially no longer distributed by Sanyo. In our projector directory, the device still generates high interest.
Display Type
3 x 0,59" LCD TFT Panel mit MLA WXGA 16/10 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2500 / 1900 im Eco Mode
Screen
1000 Lux (200 cm Screen width)
Contrast
500:1 full on/off
500:1 full on/off
Black Level
5,0000 min. Lumen
2,01 min. Lumen
Offset
72,7% 29 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel UXGA 1600 x 1200 compressed
Full HD 1080P compatible Direkt Power Off Freeze Blackboard Modus User logo Eco Mode Kensington Slot Gamma correction Password protection PJLink™ Control via web browser Lan network compatible. Short-throw projector Crestron®-Software compatible. Digital Zoom Interactive whiteboard presentations using an ‘interactive pen’ – lectures can be made interesting and active by adding your own notes to the presentation surface -PLC-WL2503SE bundle includes projector and software -PLC-WL2503SE2 bundle includes projector and software, adding a Premier Mounts EST150 wall mount
Full HD 1080P compatible
