Sanyo PLC XF1000


Sanyo LP XF1000

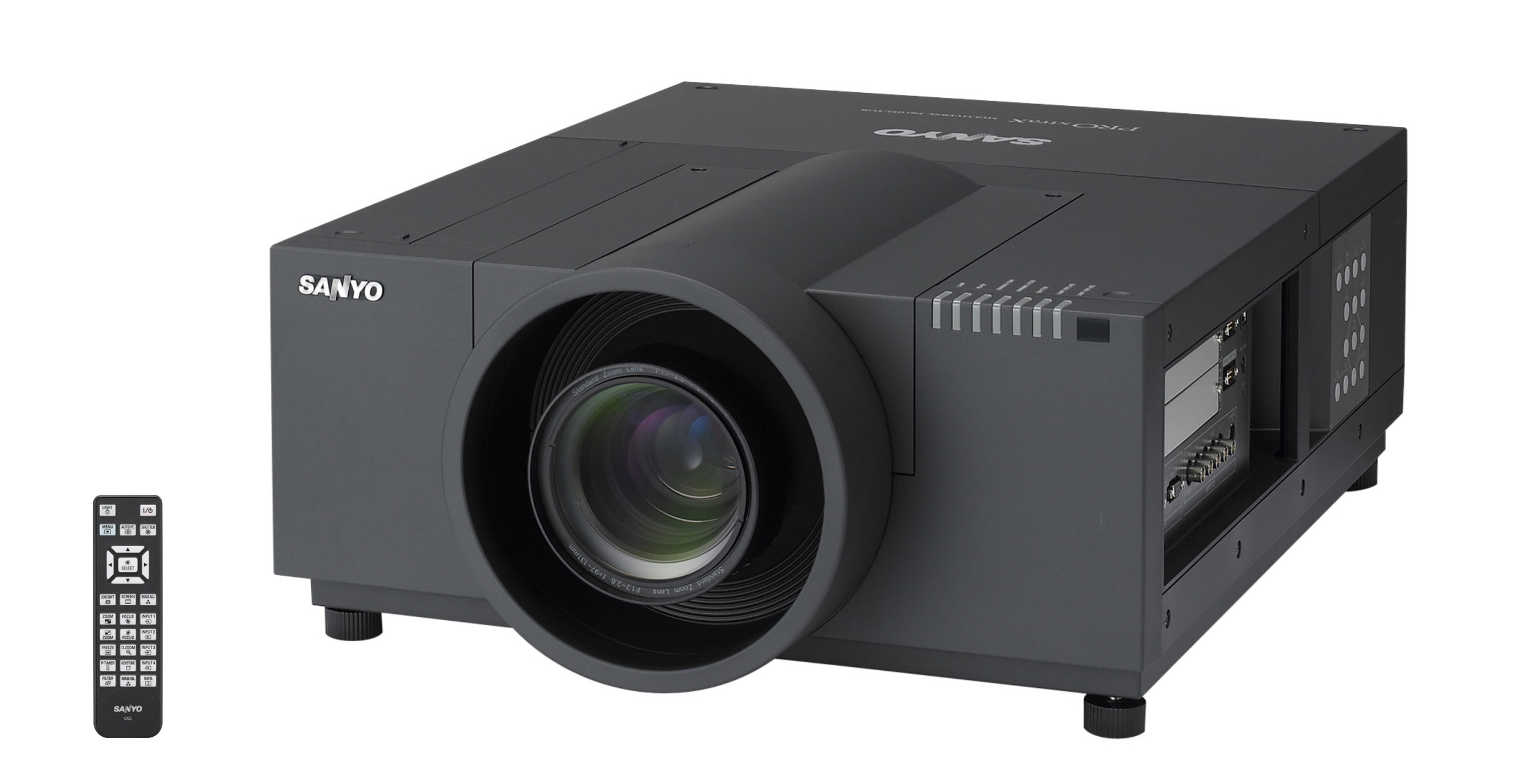

Image Sanyo PLC XF1000
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The projector PLC XF1000 by Sanyo operates as a LCD device with 12000 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 4000:1. The manufacturer rates the durability of the included lamp at 2000 hours.
Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment without distortion. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Lens Calculator.
Looking at practical performance, up to 954 cm can be illuminated with 12000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 636 cm.
Regarding signal processing, the model is compatible with incoming 1080P content.
Since entering the market in 2009, production has been discontinued; the manufacturer no longer actively offers the model. As an archive device, the projector remains highly relevant in our database.
Display Type       3 x 1,8" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
12000
Screen
4000 Lux (200 cm Screen width)
Contrast 4000:1 full on/off 4000:1 full on/off
Black Level 3,0000 min. Lumen 1,001 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-10%
 Lens shift
50%  75cm
50%  75cm
10%  20cm
10%  20cm
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source 2 x 330W NSHA Lamp
Article Nr.: 610-341-9497 / LMP128
Order Lamp
69,60 - 176,16 €
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux: 4000 Lux
Contrast: 4000:1
Candela pro m²: 1275 cd/m²
Foot-Lamberts: 372 fL
75 cm

Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio Nein
Connections DVI-D mit HDCP in
5 x BNC RGBHV in
RS232C Din 9 pin in
Weitere Anschlüsse optional.
Ceiling Mounting Yes, is possible.
Power 940 / 770W in Eco Mode
Size WxHxD 530 x 267,5 x 757 mm (20,9"x10,5"x29,8") 107,12 L/dm³
Operating Noise 46 / 45 dB in Eco Mode

Shift: 75 cm

Shift: 20 cm

Shift: 20 cm

Shift: 75 cm

Weight 27,60 kg / 60,85 lbs.
Keystone Vert.: +/-40°
Hori.: +/-20°
Illumination 90%
Frequenz H-sync: 15-120 kHz
V-sync: 48-120 Hz
Range max.: 230 MHz
Foot-Lamberts 372 fL / max. 954 cm screen width
Candela m² 1275 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Freeze
User logo
Eco Mode
Kensington Slot
Gamma correction
Screen Mirroring -
In Comparison
The Sanyo PLC XF1000 compared to others not current "Event" projectors.
Ansi-Lumen:
9 Weight:
92
Contrast:
1 dB:
58
Black level:
95 Power cons.:
92
Picture Total Points:35 Projector Total Points:81
Popularity Top 100
64 popularity points 48 popularity points 68 popularity points 62 popularity points 74 popularity points 79 popularity points
Points:
79
Ranking: 11 (From: 590)
Optional accessories
bulb only NLMP18700147,98 €
lamp ruby Ruby-LMP18700176,16 €
lamp Original610-341-9497 / LMP128 / ET-SLMP128EOL €
Compatible lamp LMP-K1870069,60 €
Universal Remote Fernb-uni-V322,31 €
remote control Original6451024589 / CXZLEOL €
air filter OriginalPOA-FIL-180 / 610-335-9830 / ET-SFYL180EOL €
ceiling bracket blackHalterung4583,60 €
ceiling bracket whiteHalterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
LNS-T03 6.2-9.1:1 1240-1820 m +/-40% +/-10% Powered
LNS-T02 4.4-6.2:1 880-1240 m +/-40% +/-10% Powered
LNS-M01Z 3.5-4.5:1 700-900 m +/-40% +/-10% Powered
LNS-S03 2.6-3.5:1 520-700 m +/-40% +/-10% Powered
LNS-S02Z 2-2.6:1 400-520 m +/-50% +/-10% Powered
LNS-W04 1.54-2.03:1 308-406 m +/-40% +/-10% Powered
LNS-W02Z 1.35-1.8:1 270-360 m +/-40% +/-10% Powered
LNS-W06 1.2-1.5:1 240-300 m +/-40% +/-10% Powered
LNS-T01Z 7:1 1400 m +/-40% +/-10% No Zoom
LNS-W01Z 1.2:1 240 m +/-40% +/-10% No Zoom
LNS-W03 0.8:1 160 m 0.0% Fix No Zoom
Status 2009 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Sanyo Website
Prosepkt Japanisch
Prosepkt USA
Product Sheet english HC
User Manual english (1.94 MB)
