Sanyo PLC XF71
Sanyo LP XF71

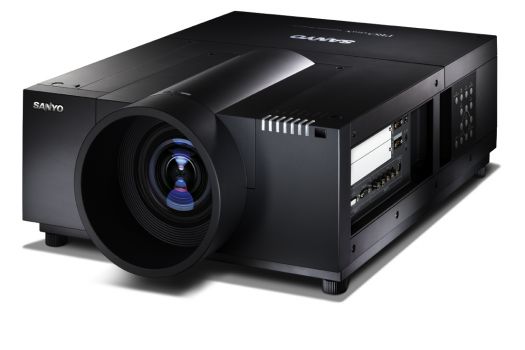

Image Sanyo PLC XF71
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Equipped with LCD technology, the Sanyo PLC XF71 offers 10000 ANSI lumens, a contrast of 3000:1 and is designed as a versatile projector. In operating mode, the installed projector lamp offers a lifespan of 2000 hours.
For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projection Calculator.
A look at the light output reveals: The 10000 ANSI lumens are sufficient to illuminate an image width of up to 871 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 581 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P.
The projector was released in 2008 and is officially no longer distributed by Sanyo. In our projector directory, the device still generates high interest.
Display Type       3 x 1,8" LCD TFT Panel mit MLA
      XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
 10000 / 5000 im singel Lamp Mode
Screen
 3333 Lux (200 cm Screen width)
Contrast 3000:1 full on/off 3000:1 full on/off
Black Level 3,3333 min. Lumen 1,112 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-10%
 Lens shift
 		50%  75cm
50%  75cm
10%  20cm
10%  20cm
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source 2 x 330W NSHA Lamp
Article Nr.: LMP-128
Order Lamp
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux: 3333 Lux
Contrast: 3000:1
Candela pro m²: 1062 cd/m²
Foot-Lamberts: 310 fL
75 cm

Screen width:cm
          Room:
•
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio -
Connections DVI-D mit HDCP in
5 x BNC RGBHV in
RS232C Din 9 pin in
Weitere Anschlüsse optional.
Ceiling Mounting Yes, is possible.
Power 950W
Size WxHxD 530 x 267,5 x 757 mm (20,9"x10,5"x29,8") 107,12 L/dm³
Operating Noise 46 / 45 dB in Eco Mode

Shift: 75 cm

Shift: 20 cm

Shift: 20 cm

Shift: 75 cm
Weight 27,60 kg / 60,85 lbs.
Keystone Vert.: +/-40°
Hori.: +/-20°
Illumination 90%
Frequenz H-sync: 15-120 kHz
V-sync: 48-120 Hz
Range max.: 230 MHz
Foot-Lamberts 310 fL / max. 871 cm screen width
Candela m² 1062 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Freeze
User logo
Eco Mode
Kensington Slot
Gamma correction
Screen Mirroring -
In Comparison
The Sanyo PLC XF71 compared to others not current "Event" projectors.
Ansi-Lumen:
7 Weight:
92
Contrast:
1 dB:
58
Black level:
94 Power cons.:
91
Picture Total Points:34 Projector Total Points:80
Popularity Top 100
28 popularity points 33 popularity points 49 popularity points 33 popularity points 52 popularity points 58 popularity points
Points:
58
Ranking: 44 (From: 590)
Optional accessories
Airfilter universaluni3mm18,15 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
LNS-T03 6.2-9.1:1 1240-1820 m +/-40% +/-10% Powered
LNS-T02 4.4-6.2:1 880-1240 m +/-40% +/-10% Powered
LNS-M01Z 3.5-4.5:1 700-900 m +/-40% +/-10% Powered
LNS-S03 2.6-3.5:1 520-700 m +/-40% +/-10% Powered
LNS-S02Z 2-2.6:1 400-520 m +/-50% +/-10% Powered
LNS-W04 1.54-2.03:1 308-406 m +/-40% +/-10% Powered
LNS-W02Z 1.35-1.8:1 270-360 m +/-40% +/-10% Powered
LNS-W06 1.2-1.5:1 240-300 m +/-40% +/-10% Powered
LNS-T01Z 7:1 1400 m +/-40% +/-10% No Zoom
LNS-W01Z 1.2:1 240 m +/-40% +/-10% No Zoom
LNS-W03 0.8:1 160 m 0.0% Fix No Zoom
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Sanyo Website
Product Sheet english
Product Sheet english HC
Product Sheet japanisch
Product Sheet USA
User Manual english (7.88 MB)
