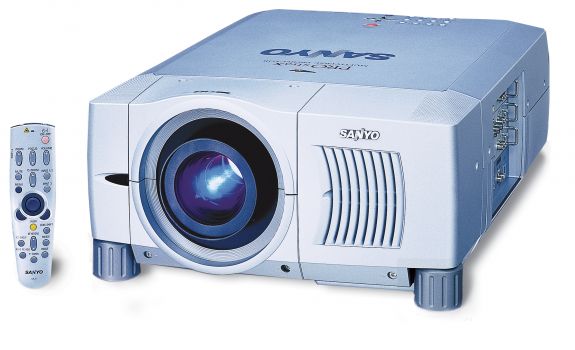

The Sanyo PLC XF31E is a LCD projector that brings 5200 ANSI lumens, a XGA 1024 x 768 resolution alongside a contrast of 800:1. The runtime of the lamp in this model is estimated at 1500 hours before a replacement is necessary. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Lens Calculator. Regarding projection size, the value of 5200 ANSI lumens allows for an image width of up to 628 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 419 cm. The projector was released in 2003 and is officially no longer distributed by Sanyo. As an archive device, the projector remains highly relevant in our database.
Display Type
3 x 1,8" TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
1 x DVI
1 x Audio RCA x 2
Computer 2 / Video
5 x BNC / YUV
1 x Audio RCA x 2
2 x BNC Video/YC
1 x S-Video
1 x Audioaus. Eingang RCA x 2
1 x USB
Control Port x 2 seriell in 9-polig R/C Remote-Control Mini Jack
Ceiling Mounting
Yes, is possible.
Power
550W
Size WxHxD
439 x 227 x 604 mm (17,3"x8,9"x23,8") 60,19 L/dm³
Operating Noise
45dB
Key: 349 cm Shift: 60 cm
Key: 349 cm Shift: 60 cm
Weight
20,50 kg / 45,19 lbs.
Keystone
Vert.: +/-40°
Illumination
90%
Frequenz
H-sync: 15-120 kHz V-sync: 50-120 Hz Range max.: 230 MHz
Lens shift Funktion (LNS S02 V=+/-50%) Freeze Kensington Slot Gamma correction Remote control with laser pointer und mouse control Optional LAN network compatible. Digital Zoom RJ45 connection board optionally available Faroudja DCDi optionally available 10-bit digital gamma correction
Lens shift Funktion (LNS S02 V=+/-50%)
