Sanyo PLV WF20


SANYO PLC-WF20

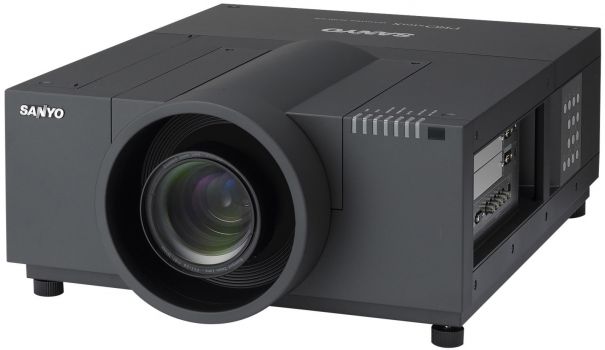

Image Sanyo PLV WF20
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Categorized in the Stationary segment, the PLV WF20 projector from Sanyo projects with a WXGA 1366 x 800 resolution, alongside 6000 ANSI lumens and a contrast of 2000:1. According to Sanyo, the lamp has a durability of 2000 hours.
Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Projection Calculator is available to calculate the exact dimensions.
Regarding projection size, the value of 6000 ANSI lumens allows for an image width of up to 764 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 509 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P.
The projector was released in 2008 and is officially no longer distributed by Sanyo.
Display Type       3 x 1,2" LCD TFT Panel
      WXGA 17/10 Liquid Crystal Display
Ansi-Lumen
Projector
6000 / 3000 im singel Lamp Mode
Screen
2561 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 3,0000 min. Lumen 1,282 min. Lumen
Lens shift Vert.: +/-80% Hori.: +/-12,5%
 Lens shift
80%  94cm
80%  94cm
12.5%  25cm
12.5%  25cm
+ Projector
Resolution WXGA 1366 x 800
1.049.088 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source 2 x 330W NSHA Lamp
Article Nr.: POA-LMP104 610 337 0262
Order Lamp
69,60 - 176,12 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
Lux: 2561 Lux
Contrast: 2000:1
Candela pro m²: 815 cd/m²
Foot-Lamberts: 238 fL
94 cm



Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio -
Connections DVI-D mit HDCP in
5 x BNC RGBHV in
RS232C Din 9 pin in
Weitere Anschlüsse optional.
Ceiling Mounting Yes, is possible.
Power 950W
Size WxHxD 530 x 267,5 x 757 mm (20,9"x10,5"x29,8") 107,12 L/dm³
Operating Noise 50dB

Shift: 94 cm

Shift: 25 cm

Shift: 25 cm

Shift: 94 cm

Weight 27,60 kg / 60,85 lbs.
Keystone Vert.: +/-40°
Hori.: +/-20°
Illumination 90%
Frequenz H-sync: 15-120 kHz
V-sync: 48-120 Hz
Range max.: 230 MHz
Foot-Lamberts 238 fL / max. 764 cm screen width
Candela m² 815 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Freeze
User logo
Kensington Slot
Gamma correction
24/7 continuous operation capable
Screen Mirroring -
In Comparison
The Sanyo PLV WF20 compared to others not current "Stationary" projectors.
Ansi-Lumen:
59 Weight:
88
Contrast:
1 dB:
90
Black level:
91 Power cons.:
87
Picture Total Points:50 Projector Total Points:88
Popularity Top 100
19 popularity points 19 popularity points 27 popularity points 1 popularity points 10 popularity points 7 popularity points
Points:
7
Ranking: 185 (From: 2536)
Optional accessories
bulb only NLMP18171147,98 €
lamp ruby Ruby-LMP18171176,12 €
lamp Original610-337-0262 / LMP104 / ET-SLMP104EOL €
Compatible lamp LMP-K1817069,60 €
object lens OriginalET-SW05 / LNS-W05EOL €
object lens OriginalET-SW07 / LNS-W07EOL €
Universal Remote Fernb-uni-V322,31 €
air filter OriginalPOA-FIL-180 / 610-335-9830 / ET-SFYL180EOL €
ceiling bracket blackHalterung4583,60 €
ceiling bracket whiteHalterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
LNS-T02 6.1-8.5:1 1220-1700 m +/-80% +/-12.5% Powered
LNS-M01Z 4.8-6.2:1 960-1240 m +/-80% +/-12.5% Powered
LNS-S03 3.6-4.87:1 720-974 m +/-80% +/-12.5% Powered
LNS-S02Z 2.79-3.64:1 558-728 m +/-80% +/-12.5% Powered
LNS-W04 2.15-2.82:1 430-564 m +/-80% +/-12.5% Powered
LNS-W02Z 1.94-2.53:1 388-506 m +/-80% +/-12.5% Powered
LNS-W06 1.6-2.1:1 320-420 m +/-80% +/-12.5% Powered
LNS-T03 8.46-12.34:1 1692-2468 m +/-80% +/-12.5% Powered
LNS-W05 1.31-1.84:1 262-368 m +/-50% +/-12.5% Powered
LNS-W01Z 1.66:1 332 m +/-80% +/-12.5% No Zoom
LNS-W03 1.1:1 220 m 0.0% Fix No Zoom
LNS-W07 0.8:1 160 m 0.0% Fix No Zoom
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Sanyo Website
Product Sheet english
Product Sheet english HC
Product Sheet USA
User Manual english (0 MB)
