Model Overview

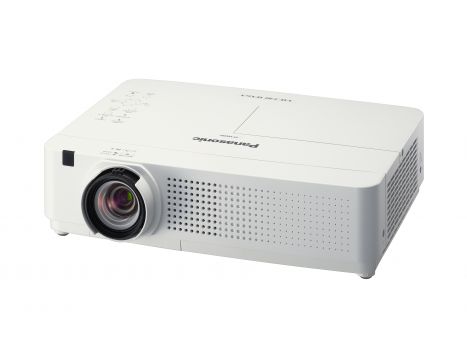

The Panasonic PT VW330 is a LED-LCD projector that brings 3000 ANSI lumens, a WXGA 1280 x 800 resolution alongside a contrast of 2000:1. According to Panasonic, the lamp has a durability of 3000 hours.
Regarding projection size, the value of 3000 ANSI lumens allows for an image width of up to 556 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 371 cm.
For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
Since entering the market in 2011, production has been discontinued; the manufacturer no longer actively offers the model.

Display Type

3 x 0,59" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display

Ansi-Lumen

Projector

3000

Screen

1200 Lux (200 cm Screen width)

Contrast

2000:1 full on/off

Black Level

1,5000 min. Lumen

0,601 min. Lumen

Offset

48% 3 cm under screen top edge →

SCREEN

+ Projector

Resolution

WXGA 1280 x 800
1.024.000 Pixel

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.

Light Source

245W Lamp
Article Nr.: ET-LAV100

Order Lamp
58,08 - 112,25 €

Light Life

3000 h. 5000 h. in Eco Mode

Operating Costs

Calculated brightness quality
The screen width may also be larger. Perfect

236 - 382 cm


	Lux:	1200 Lux
	Contrast:	2000:1
	Candela pro m²:	380 cd/m²
	Foot-Lamberts:	111 fL

60 cm

•

Focus

Manual

Zoom

Manual 1,62

Objective

F=1,65-2,33 f=15,47-24,53 mm

Throw Ratio

1,18-1,91:1 show

Audio

1 x 10W Mono

Connections

HDMI in
D-sub 15 pin in
S-Video in
Cinch Video in
Cinch Stereo in
RS232C Din 9 pin in
RJ45in

Ceiling Mounting

Yes, is possible.

Power

Size WxHxD

350 x 87,5 x 276,90 mm (13,8"x3,4"x10,9") 8,4 L/dm³

Operating Noise

35 / 29 dB in Eco Mode

Key: 196 cm

	Key: 76 cm

Weight

3,50 kg / 7,72 lbs.

Keystone

Vert.: +/-30°

Illumination

85%

Frequenz

H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 162 MHz

Foot-Lamberts

111 fL / max. 556 cm screen width

Candela m²

380 cd/m²

Features

Direkt Power Off

Freeze

Blackboard Modus

Eco Mode

Password protection

Remote control with mouse control

PJLink™

Control via web browser

Lan network compatible.

Screen Mirroring

Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads

In Comparison

The Panasonic PT VW330 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

100 (From: 7737)

Optional accessories
	Philips bulb only	NLMP23457	88,67 €
	lamp ruby	Ruby-LMP23457	112,25 €
	lamp Original	ET-LAV100	EOL €
	Compatible lamp	LMP-K20661	58,08 €

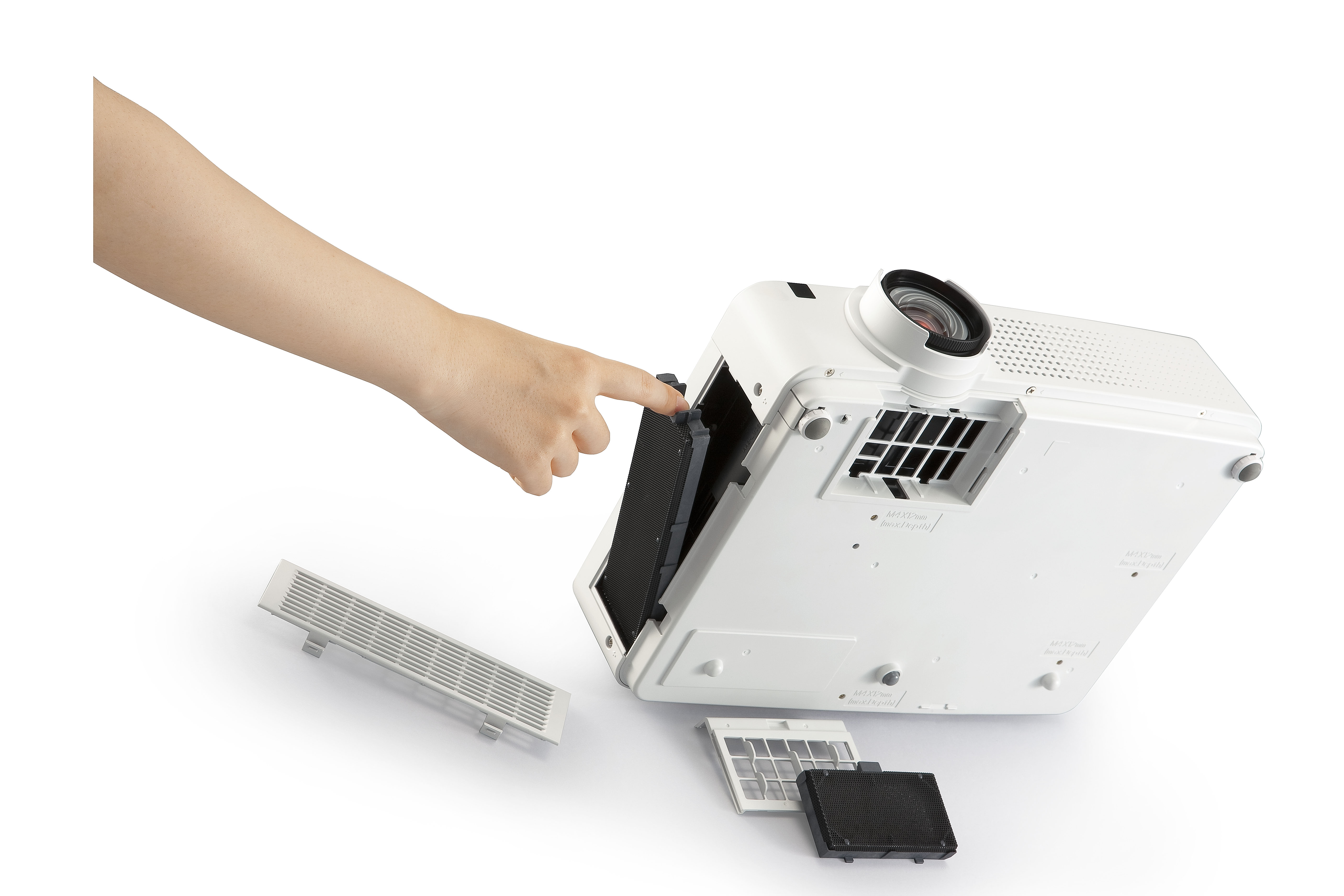

	air filter compatible	Alternative zu:ET-RFV100	57,42 €
	Universal Remote	Fernb-uni-V3	22,31 €
	remote control Original	6451048745 / MXDA	EOL €
	air filter Original	ET-RFV100	38,38 €

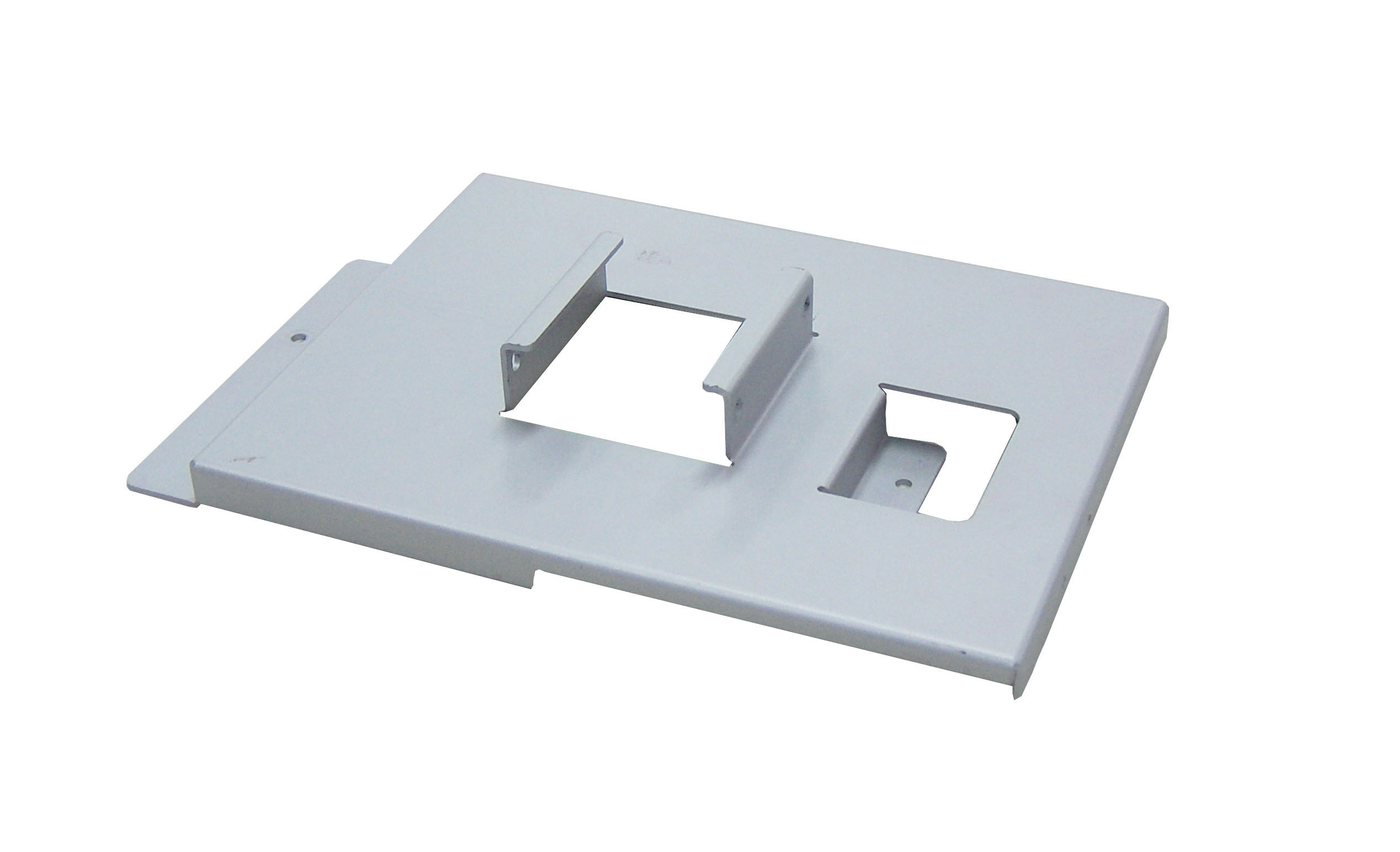

	Ceiling Mount 100-120	Halterung100	47,86 €

Status

2011 Discontinued (EOL) // Last update of the data: 2026-06-09
