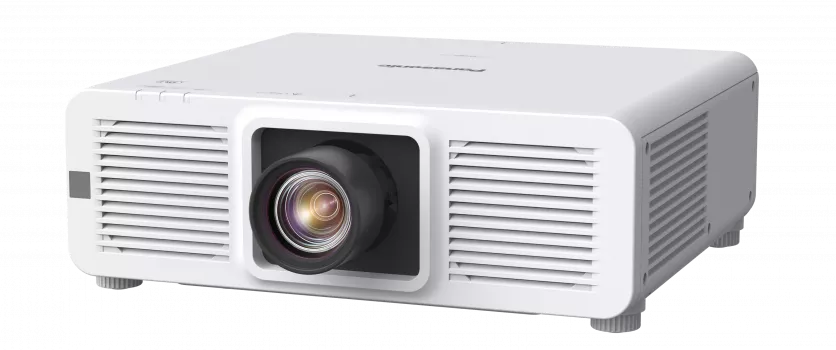

Equipped with DLP technology, the Panasonic PT-RQ6L offers 6500 ANSI lumens, a contrast of 15000:1 and is designed as a versatile projector. With its laser unit, the projector offers a specified light lifespan of 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Projection Calculator. Looking at practical performance, up to 819 cm can be illuminated with 6500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 546 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. For media input, video signals up to 1080P and 4K are supported, and also offers the technical capability for 360° projection. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. Since the projector supports optional Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type
1 x 0,65" DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
6500
Screen
2889 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,4333 min. Lumen
0,193 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2889 Lux
Contrast:
15000:1
Candela pro m²:
918 cd/m²
Foot-Lamberts:
268 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2x HDMI (Deep Color, HDCP 2.3, 4K/60p input5)
D-sub 9-pin in und out (RS-232C compliant)
Audio Mini Jack in und out (for wired Remote)
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Type A (for power supply, DC 5 V, 2 A)
RS232C Din 9 pin in
RJ45 in
HDBaseT (100Base- TX)
Open slot for function boards, Intel® SDM
Full HD 1080P compatible
