Brief Introduction
Beta 2.5 |

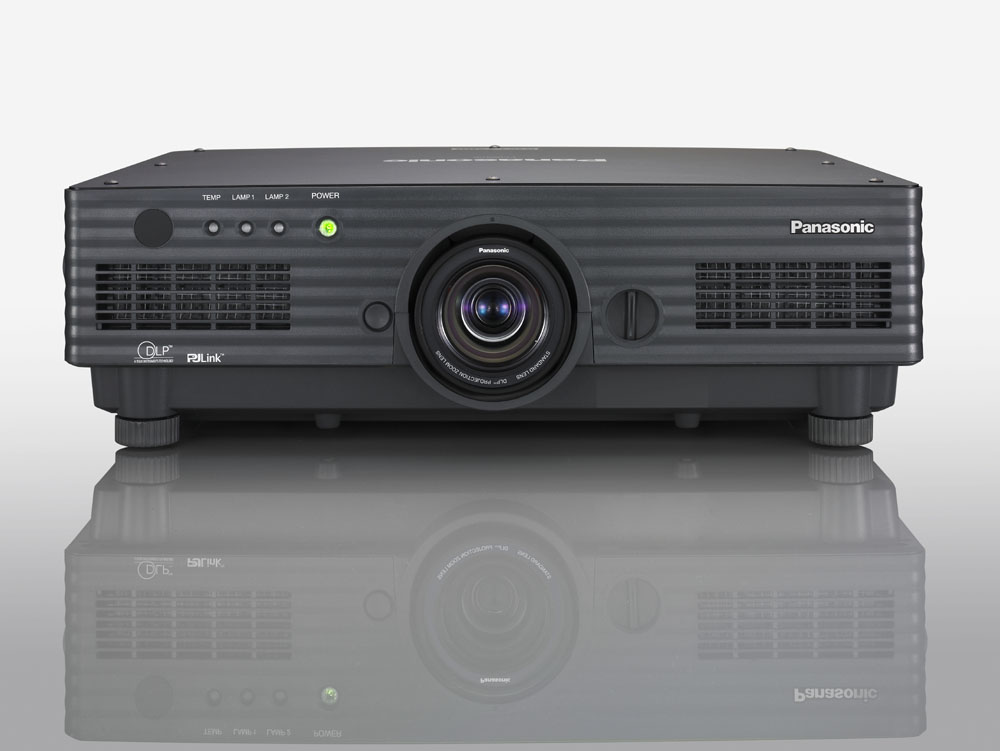

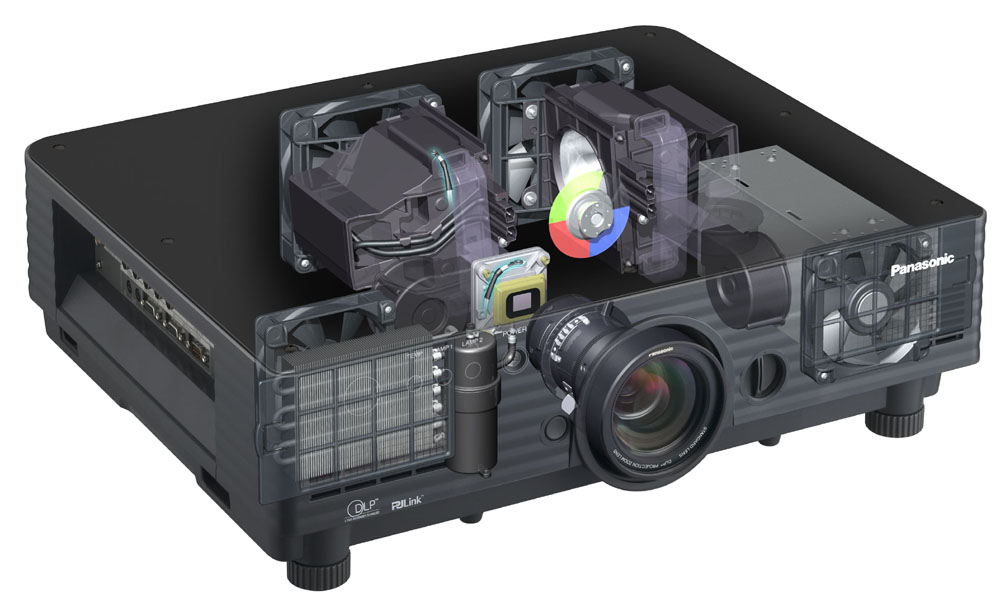

A brief introduction to the Panasonic PT DW5100E/U/L. The stationary DLP projector has a WXGA 1280 x 768 resolution and a contrast of 2000:1. Includes a lens shift and keystone correction function, which provides freedom during installation. An image width of up to 753 cm is possible as the projector has 5500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 502 cm. In the event that the image is still too small, the projector offers integrated edge blending software, with which several projectors can project a large image together. This model is no longer offered by Panasonic.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 15/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5500 |
Screen |
2292 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
2,7500 min. Lumen |
1,147 min. Lumen |
| Lens shift |
Vert.: +50% -0% Hori.: +/-10%
|
| Resolution |
WXGA 1280 x 768
983.040 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |

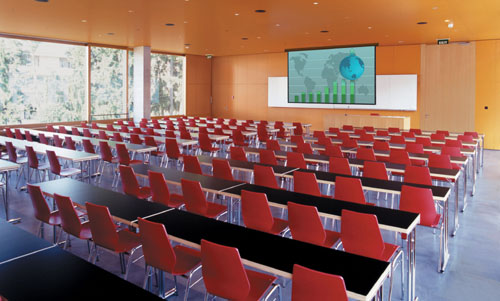

Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |

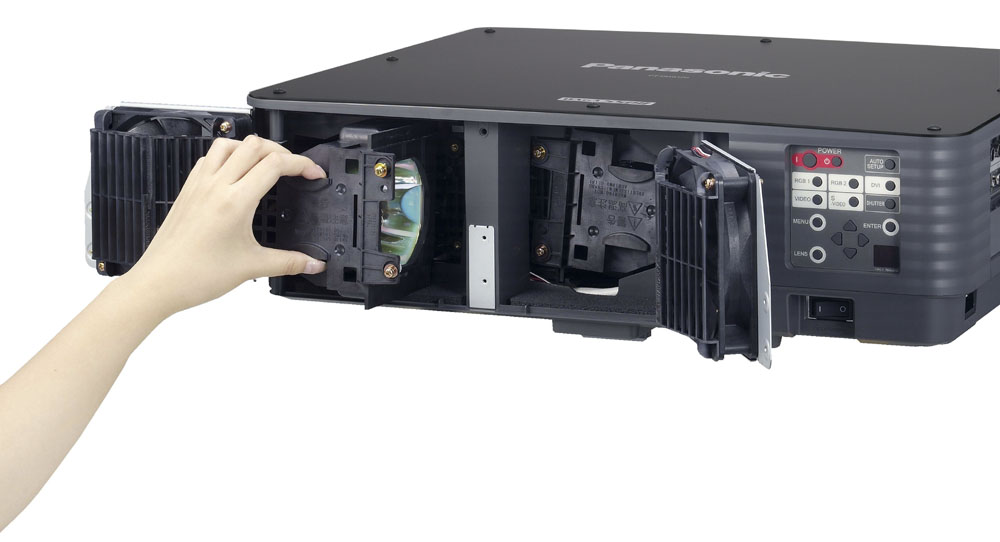

| Light Source |
2 x 300W UHM Lamp
Article Nr.: ET-LAD57 ET-LAD57W
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
364 - 480 cm
|
 |
|
Lux: |
2292 Lux |
|
Room light max.: |
458 Lux |
|
Candela pro m²: |
730 cd/m² |
|
Foot-Lamberts: |
213 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,32 |
| Objective |
F=1,7-2,0 f=25,6-33,8 mm / L optional |
| Throw Ratio |
1,82-2,40:1 show |
| Audio |
Nein |
| Connections |
DVI-D mit HDCP
5 x BNC RGBHV in
D-sub 15pin in
S-video in
Cinch Video in
RJ45
RS232C
Fernbedienung in und out
 |

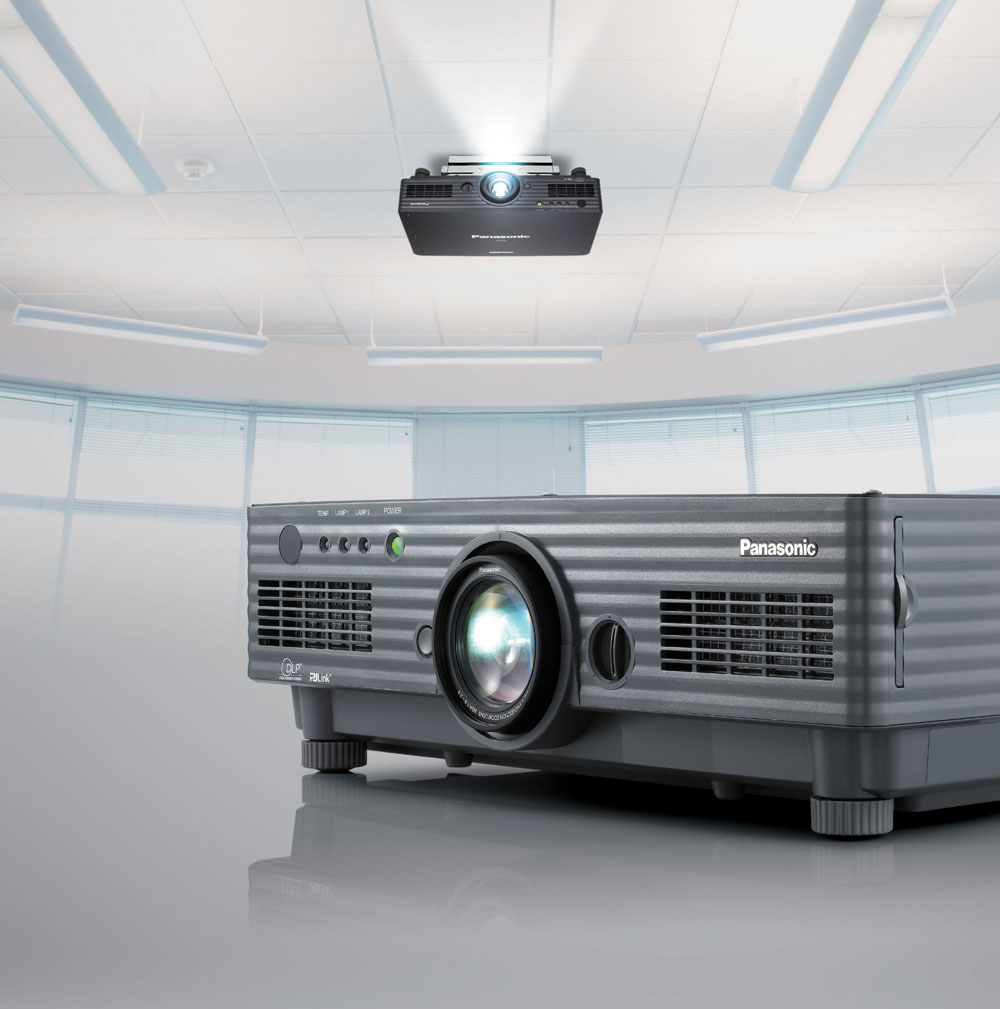

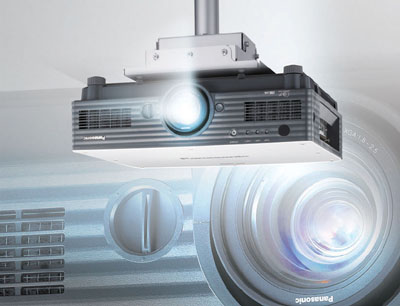

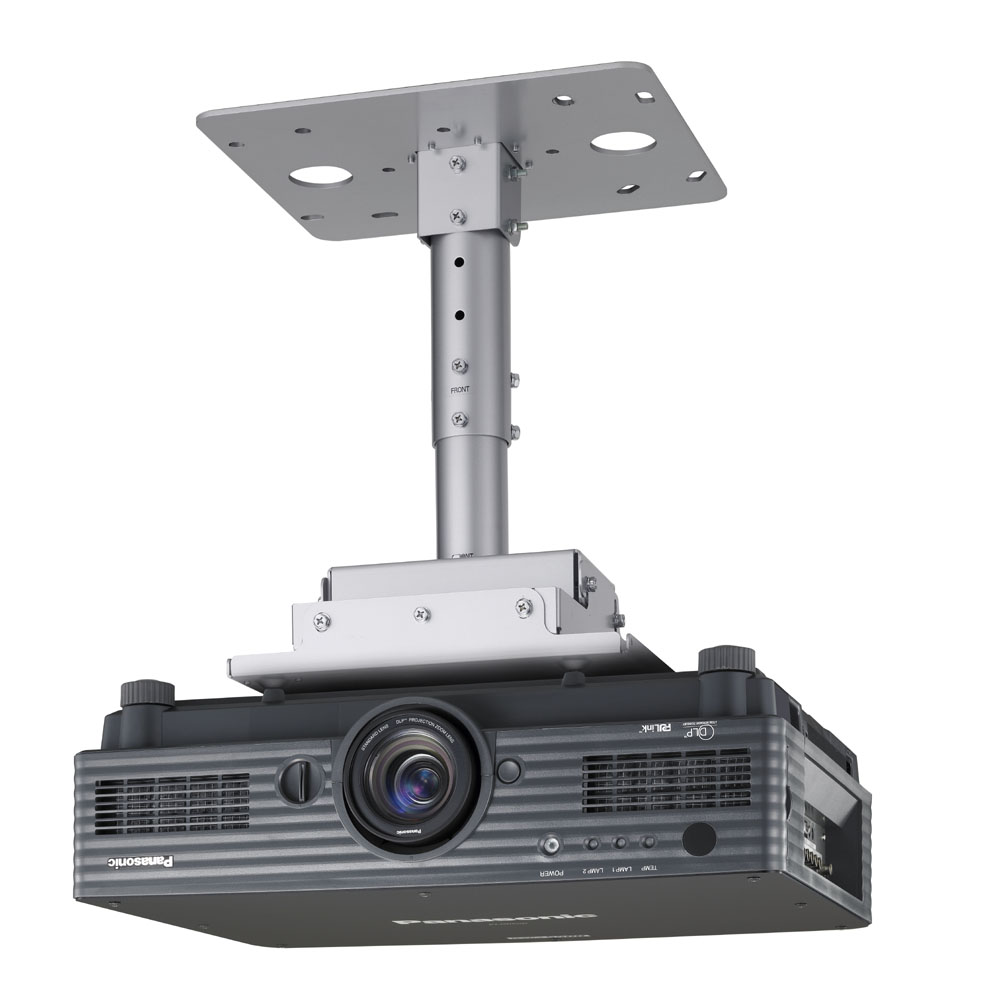

| Ceiling Mounting |
Yes, is possible. |
| Power |
750W |
| Size WxHxD |
530 x 167 x 429 mm (20,9"x6,6"x16,9") 37,97 L/dm³
|
| Operating Noise |
35 / 29 dB in Eco Mode |
Key: 210 cm
Shift: 60 cm |
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
13,90 kg / 30,64 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
90% |
| Frequenz |
H-sync: 15-91 kHz
V-sync: 50-85 Hz
Range max.: 150 MHz |
| Foot-Lamberts |
213 fL
/ max. 753 cm screen width |
| Candela m² |
730 cd/m² |
| Features |
 Direkt Power Off
Lens shift Funktion
Eco Mode
Kensington Slot
360° installable
Edge Blending
Picture-in-Picture
Password protection
PJLink™
Control via web browser
Lan network compatible.
Crestron®-Software compatible.
De-interlacer with 3:2 pull down.
1 and 2 lamp mode
Digital Zoom 3x
Built-in test pattern generator
|
|
- |
In Comparison
The Panasonic PT DW5100E/U/L compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
54 |
Weight: |
|
96 |
| Contrast: |
|
1 |
dB: |
|
95 |
| Black level: |
|
92 |
Power cons.: |
|
90 |
| Picture Total Points: | 49 |
Projector Total Points: | 94 |
|
| Popularity Top 100 |
|
| Points: |
|
39 |
| Ranking: |
360 (From: 2514) |
|
|
|
|
|
|

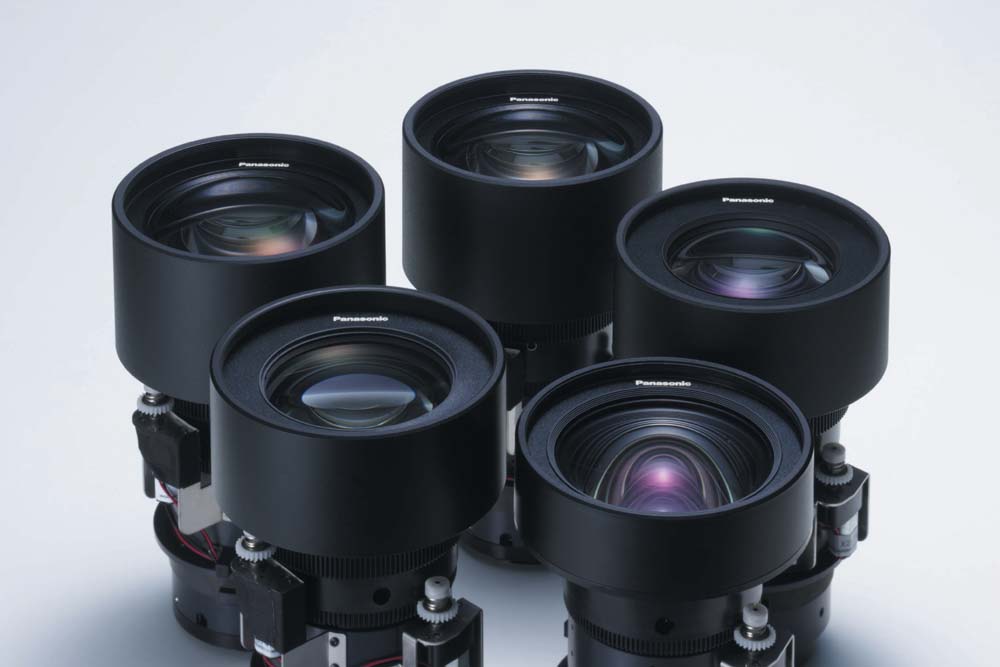

Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| ET-DLE410 | 4.79-8.96:1 | 958-1792 m |
50% |
+/-10% |
Powered |
| ET-DLE310 | 3.61-4.71:1 | 722-942 m |
50% |
+/-10% |
Powered |
| ET-DLE200 | 2.51-4.11:1 | 502-822 m |
50% |
+/-10% |
Powered |
| ET-DLE100 | 1.38-1.86:1 | 276-372 m |
50% |
+/-10% |
Powered |
| ET-DLE050 | 0.83:1 | 166 m |
0.0% Fix |
+/-10% |
No Zoom |
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2025-03-03
|
