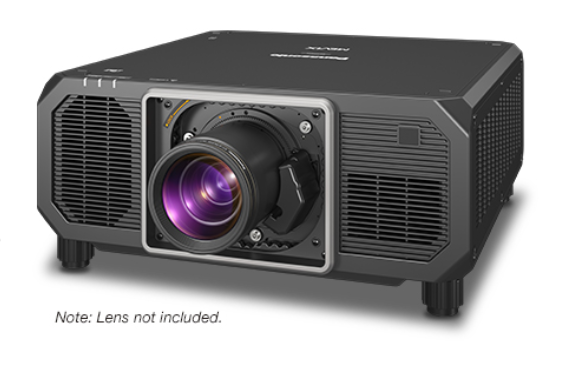

The hardware properties of the PT-HTQ20 manufactured by Panasonic include 20000 ANSI lumens, a UHD (4K2K+) 3840 x 2400 resolution and a contrast value of 25000:1. Using this laser phosphor technology, the light source runtime is rated at 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. The specifications indicate lens shift optics, allowing the image to be physically shifted without introducing digital image artifacts. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Lens Calculator. A look at the light output reveals: The 20000 ANSI lumens are sufficient to illuminate an image width of up to 1437 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 958 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
Display Type
1 x 0,96" DLP Chip Quad Pixel Drive UHD 4/3 Ti Digital Light Processing Chip
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
RGB Laser
Light Life
20000 h. / 24000 h. in Eco Mode
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
6667 Lux
Contrast:
25000:1
Candela pro m²:
2121 cd/m²
Foot-Lamberts:
619 fL
83 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2x HDMI(Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
12G SDI in
BNC in und out (Multi Projector Sync)
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB-A in
RS232C Din 9 pin in
RJ45 (PJLink™ Class 2, 10Base-T/100Base-TX) in
open slot (for function boards, Intel® SDM standard-compatible)
Full HD 1080P compatible
Panasonic Website
Product Sheet english
