Panasonic PT-VMZ50 /E/U


Panasonic PT-VMZ50E | Panasonic PT-VMZ50U
Image Panasonic PT-VMZ50 /E/U
Customer review
5 from 5 Stars 1 Review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The PT-VMZ50 model is a 3D-LED-LCD projector from Panasonic, intended for Stationary applications, offering 5000 ANSI lumens, a contrast of 3000000:1 at WUXGA 1920 x 1200. This is a laser projector with a light source designed to last for 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years.
Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. Accurate distances are provided by the Lens Shift Calculator.
Looking at practical performance, up to 718 cm can be illuminated with 5000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 479 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D, and also offers the technical capability for 360° projection. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
The projector was released in 2019 and is officially no longer distributed by Panasonic.
Display Type       3 x 0,64" LCD TFT Panel
      WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
5000
Screen
2222 Lux (200 cm Screen width)
Contrast 3000000:1 full on/off 3000000:1 full on/off
Black Level 0,0017 min. Lumen 0,001 min. Lumen
Lens shift Vert.: +44% -0%
 Lens shift
44%  50cm
0%  0cm
+ Projector
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
UHD (4K+2K) 4096 x 2160 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source Laser
Article Nr.: N2QAYA000204
Order Accessories
38,91 €
Light Life 20000 h.
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
218 - 354 cm
Lux: 2222 Lux
Contrast: 3000000:1
Candela pro m²: 706 cd/m²
Foot-Lamberts: 206 fL
50 cm

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,6
Objective F=1,6-2,12 f=15,3-24,64 mm
Throw Ratio 1,09-1,77:1 show
Audio 1 x 10W

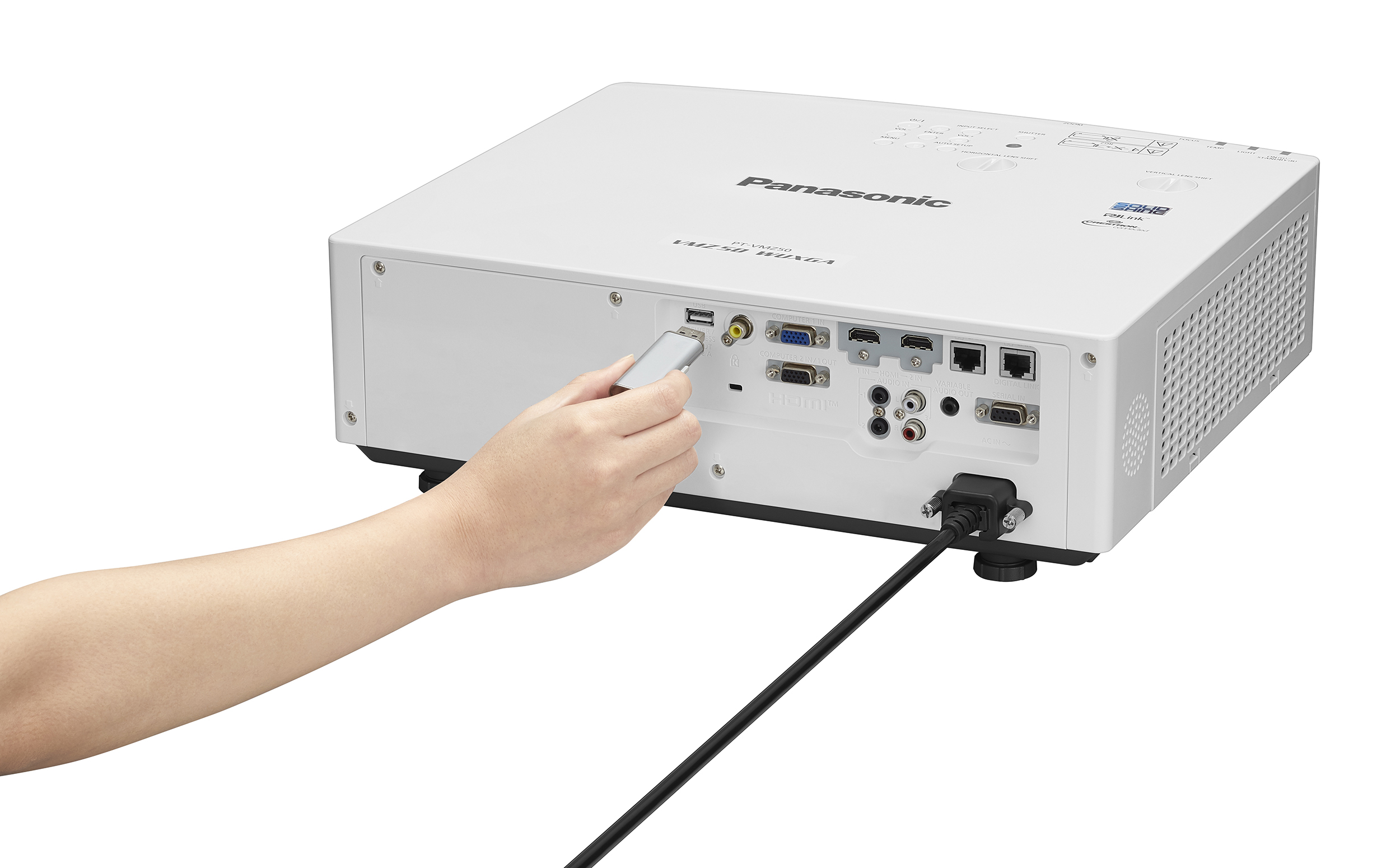

Connections 2x HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio 2x in und out
USB in
RS232C Din 9 pin in
RJ45 in

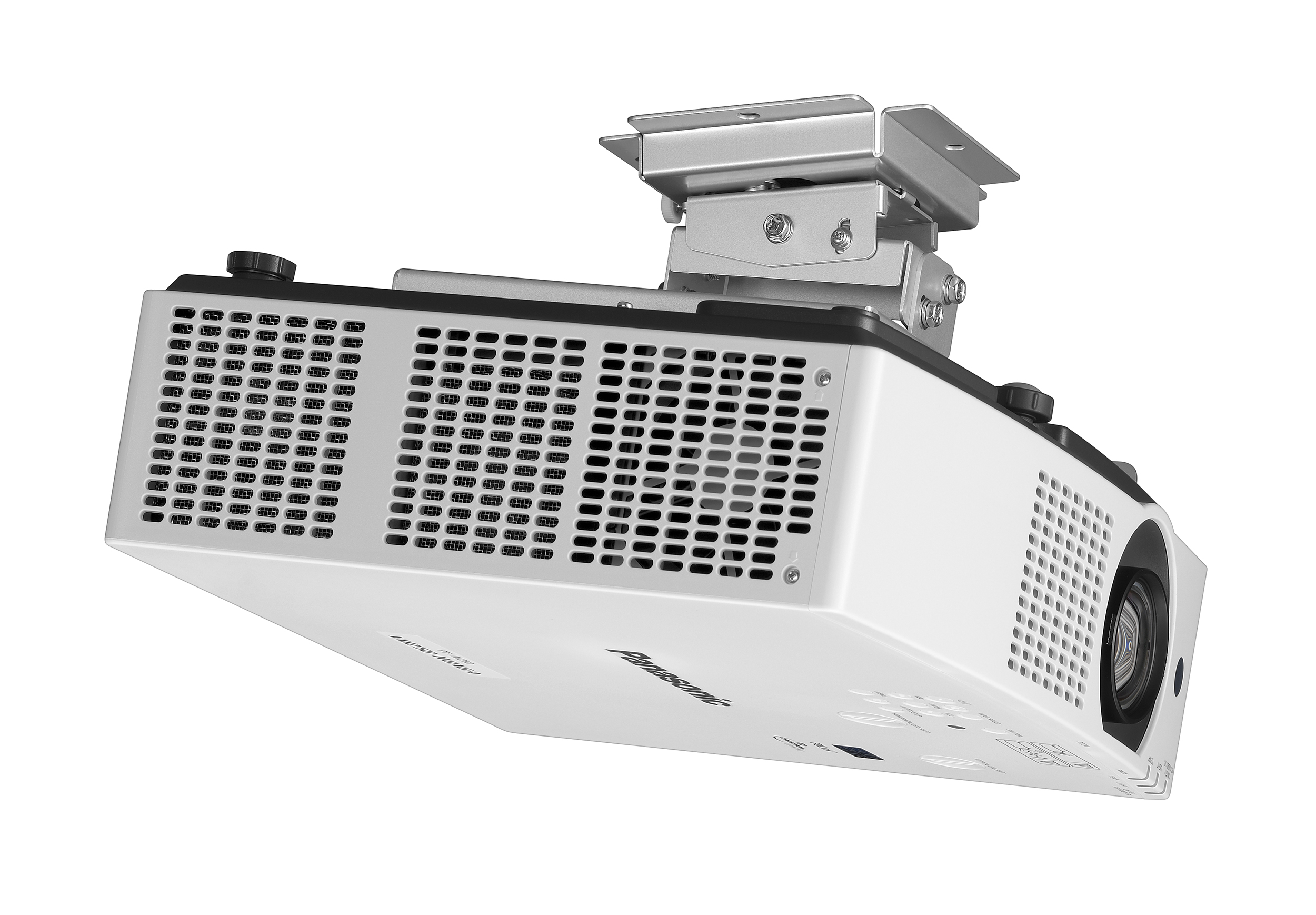

Ceiling Mounting Yes, is possible.
Power -
Size WxHxD 399 x 115 x 348 mm (15,7"x4,5"x13,7") 15,97 L/dm³
Operating Noise 38 / 29 dB in Eco Mode
Key: 102 cm
Shift: 50 cm
Key: 153 cm
Key: 153 cm
Key: 102 cm

Weight 7,20 kg / 15,43 lbs.
Keystone Vert.: +/-25°
Hori.: +/-35°
Illumination -
Frequenz -
Foot-Lamberts 206 fL / max. 718 cm screen width
Candela m² 706 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
360° installable
PJLink™
Optional Wi-Fi network compatible.
Lan network compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Panasonic PT-VMZ50 /E/U compared to others not current "Stationary" projectors.
Ansi-Lumen:
49 Weight:
100
Contrast:
60 dB:
94
Black level:
100 Power cons.: 0
Picture Total Points:70 Projector Total Points:0
Popularity Top 100
24 popularity points 19 popularity points 20 popularity points 1 popularity points 42 popularity points 9 popularity points
Points:
9
Ranking: 81 (From: 2536)
Optional accessories
air filter compatible Alternative zu:ET-RFV50026,48 €
ceiling bracket OriginalET-PKL100SEOL €
ceiling bracket OriginalET-PKL100HEOL €
ceiling bracket OriginalET-PKV400BEOL €
remote control OriginalN2QAYA000150 / N2QAYA000167 / N2QAYA000204 / N2QAYA00023438,91 €
air filter OriginalET-RFV50087,73 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2019 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Panasonic Website
Product Sheet english
Product Sheet english
Product Sheet english HC
User Manual english (21.31 MB)

Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U Projektor Panasonic PT-VMZ50 /E/U



Popular Alternatives
5000   ANSI-Lumen
PT-FRZ55PT-FRZ50 /WUA500UPT-FRZ60 /BU/WUE-Vision 8000i WU
Model PT-FRZ55PT-FRZ50 /WUA500UPT-FRZ60 /BU/WUE-Vision 8000i WU
Ansi-Lumen 50005200550060007200
Specifications WUXG Laser Lens-Shift LAN WUXG Laser Lens-Shift LAN WUXG WUXG Laser Lens-Shift LAN WUXG Laser HDBaseT LAN 3D
Compare CompareCompareCompareCompareCompare


All: 5 from 5 Stars 1 Reviews

Autor: 15.06.19
5 Stars top price/performance
+ On and off in 5 seconds
+ Crisp picture
- Black level a bit too high
+ Fully compatible with HDBaseT
+ Low heat generation
