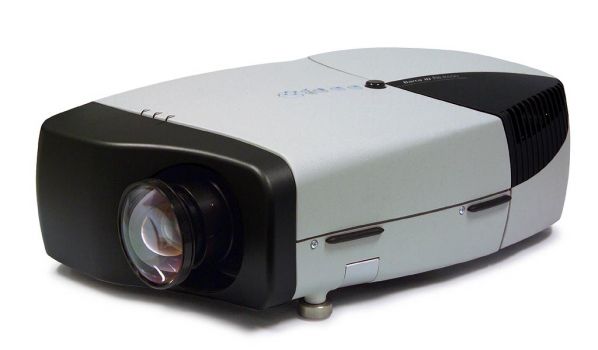

Equipped with DLP technology, the Barco iD NR 6 offers 6000 ANSI lumens, a contrast of 2000:1 and is designed as a versatile projector. The runtime of the lamp in this model is estimated at 1500 hours before a replacement is necessary. In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Distance Calculator. A look at the light output reveals: The 6000 ANSI lumens are sufficient to illuminate an image width of up to 675 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 450 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Equipped with a microphone jack and built-in speakers, audio signals during presentations can be played back directly without an external audio system. The projector was released in 2007 and is officially no longer distributed by Barco.
Display Type
1 x 0,95" DC3 DLP Chip SXGA 4/3 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2000 Lux
Contrast:
2000:1
Candela pro m²:
637 cd/m²
Foot-Lamberts:
186 fL
83 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
DVI-D in
D-sub 15 pin in
5 x BNC RGBHV in
S-Video in
BNC Video in
RS232C
RJ45 in
1x PCMCIA slot (Type II)
1x Stereo Mikrofon in
1x Stereo line in
1x Stereo line out
Lens shift Funktion
