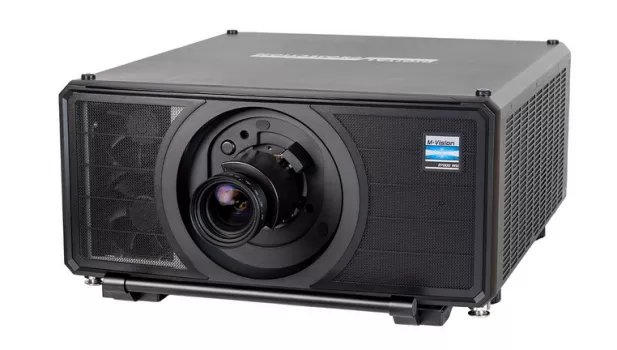

This projector is named M-Vision Laser 21000 WU II, originates from Digital Projection, and its data sheet shows 21000 ANSI lumens, a contrast of 10000:1 and a resolution of WUXGA 1920 x 1200. This is a laser projector with a light source designed to last for 20000 hours – calculating to 13.7 years at four hours of use per day. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Lens Calculator is available to calculate the exact dimensions. Regarding projection size, the value of 21000 ANSI lumens allows for an image width of up to 1472 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 981 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. For media input, video signals up to 1080P and 4K as well as 3D are supported. An additional 360° projection capability allows the device to be oriented at almost any angle. Also on board is a local media player that allows reading and playing content directly from storage media. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. This model dates back to 2024 and is no longer part of Digital Projection's current product range.
Display Type
1 x 0,96" DC3 DMD DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
21000 / 18500 ECO
Screen
9333 Lux (200 cm Screen width)
Contrast
10000:1 full on/off
10000:1 full on/off
Black Level
2,1000 min. Lumen
0,934 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p Media player formats: HDTV Formats Supported EDTV (480p, 576p,) HDTV (720p, 1080i, 1080p, UHD, DCI 4K), Display Support for 4K-UHD 3840
x 2160 60HZ and up to 4096 x2160 60Hz.
Computer-Kompatibilität VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, WUXGA, Support for WQXGA
Bandbreite 18Gb/s (600MHz clock rate) on HDMI
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
MCL Blue Laser Light Source and MCL Red Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
9333 Lux
Contrast:
10000:1
Candela pro m²:
2971 cd/m²
Foot-Lamberts:
867 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2x HDMI 2.0 in
2x DisplayPort 1.2
12G-SDI In BNC
12G-SDI Out (loopthrough) BNC
3D Sync In BNC
3D Sync Out BNC
3D Sync IR BNC
D-sub 15pin in und out
Mini Jack Audio in und out
USB-A in
RS232C Din 9 pin in
RJ45 in
HDBaseT
12V Trigger
Ceiling Mounting
Yes, is possible.
Power
1300W / 850W ECO
Size WxHxD
768,4 x 302,75 x 598,8 mm (30,2"x11,9"x23,5") 138,7 L/dm³
Real Full HD 3D Full HD 1080P compatible Integrated Mediaplayer Blank (Black screen button) Eco Mode Automatic and manual vertical keystone correction Kensington Slot High Dynamic Range (HDR) Warping 360° installable 24/7 continuous operation capable Edge Blending Picture-in-Picture Password protection PJLink™ Control via web browser Lan network compatible. Crestron®-Software compatible. DICOM LAN Control-Crestron Roomview? LAN Control-Crestron eControl LAN Control-PJ Link compatible LAN Control-AMX SSDP Intelligent Lens Memory with 10 user pre-sets Color temperature User selectable(3200K to 9300k) Selectable aspect ratios (4:3 to theater scope) Color Boost SmartStack System
Real Full HD 3D
