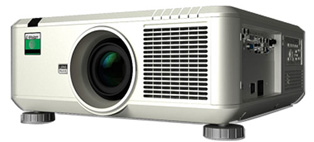

According to Digital Projection, the E-Vision 7500 WUXGA 3D (Preliminary) model provides 8000 ANSI lumens, a contrast ratio of 2400:1 alongside a WUXGA 1920 x 1200 resolution. According to Digital Projection, the lamp has a durability of 2000 hours. In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projector Calculator. Looking at practical performance, up to 909 cm can be illuminated with 8000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 606 cm. For media input, video signals up to 1080P as well as 3D are supported. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. Since entering the market in 2013, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,67" DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3556 Lux
Contrast:
2400:1
Candela pro m²:
1131 cd/m²
Foot-Lamberts:
330 fL
56 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
HDMI 1.4 in
DVI-D in
D-sub 15pin in und out
5 x BNC RGBHV in
Cinch Video in
USB Typ A in
RS232C Din 9 pin in
RJ45 mit HDBaseT in
3D Sync Out
12V Trigger out
Real Full HD 3D
