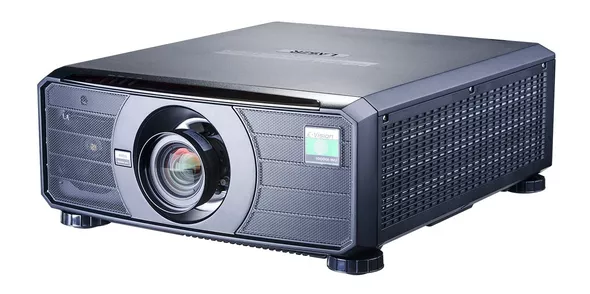

Designed for the Stationary sector, the E-Vision 10000i WU model from Digital Projection features 8600 ANSI lumens, a native WUXGA 1920 x 1200 resolution and a contrast ratio of 2200:1. This is a laser projector with a light source designed to last for 20000 hours, covering an estimated 13.7 years based on a 4-hour daily runtime. The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Distance Calculator is available to calculate the exact dimensions. Regarding projection size, the value of 8600 ANSI lumens allows for an image width of up to 942 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 628 cm. For media input, video signals up to 1080P and 4K as well as 3D are supported, meaning standard Blu-ray formats are processed effortlessly. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs.
Display Type
1 x 0,67" DC3 DMD DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
8600
Screen
3822 Lux (200 cm Screen width)
Contrast
2200:1 full on/off
2200:1 full on/off
Black Level
3,9091 min. Lumen
1,739 min. Lumen
Offset
65% 17 cm over screen top edge →
SCREEN
+Projector
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel UHD (4K2K) 3840 x 2160 compressed
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser-Phosphor
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
230 - 380 cm
Lux:
3822 Lux
Contrast:
2200:1
Candela pro m²:
1216 cd/m²
Foot-Lamberts:
355 fL
73 cm
•
Focus
Powered
Zoom
Powered 1,65
Objective
Throw Ratio
optional
Audio
Nein
Connections
2x HDMI 2.0 in
2x DisplayPort 1.2
3D Sync In BNC
3D Sync Out BNC
3D Sync IR BNC
D-sub 15pin in und out
Mini Jack Audio in und out
USB-A in
RS232C Din 9 pin in und out
RJ45 in
HDBaseT
12V Trigger
Real Full HD 3D Full HD 1080P compatible Eco Mode High Dynamic Range (HDR) 24/7 continuous operation capable Picture-in-Picture PJLink™ Control via web browser Lan network compatible. Crestron®-Software compatible. DICOM (non-diagnostic) AMX Intelligent Lens Memory with 10 user pre-sets Colour temperature User selectable (3200K to 9300k) Aspect ratio selectable (4:3 to Theater Scope) Colour Boost SmartStack System
Real Full HD 3D
