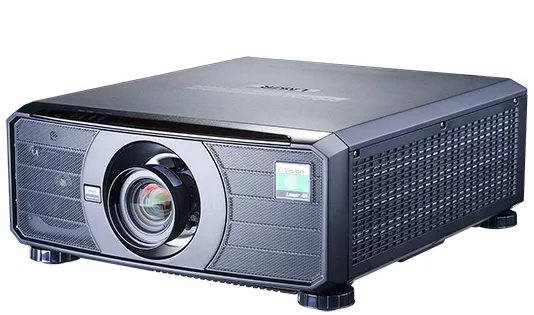

The technical data of the Digital Projection E-Vision Laser 7500 includes 7500 ANSI lumens, a contrast of 1800:1 as well as a WUXGA 1920 x 1200 display. With its laser unit, the projector offers a specified light lifespan of 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projection Calculator. Looking at practical performance, up to 880 cm can be illuminated with 7500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 587 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. Since entering the market in 2020, production has been discontinued; the manufacturer no longer actively offers the model. This model continues to hold a solid place in our database search queries.
Display Type
1 x 0,67" Dark DMD Chip WUXGA 16/9 Ti Digital Light Processing Chip
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3333 Lux
Contrast:
1800:1
Candela pro m²:
1062 cd/m²
Foot-Lamberts:
310 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2 x HDMI in
DVI in
D-sub 15pin in und out
5 x BNC
Wired Remote
12V Trigger
USB in
RS232C Din 9 pin in
3D Sync in und out
3G-SDI in und out
Display Port 1.1a
RJ45 in
HDBaseT
Full HD 1080P compatible
