Brief Introduction
Beta 2.5 |
The Viewsonic model PJ406D is a DLP projector with SVGA 800 x 600 resolution and a contrast of 2000:1. The projector can illuminate images up to 380 cm wide thanks to its 1900 Ansi lumens. In room light, however, the image width should ideally be less than 253 cm. This model is no longer offered by Viewsonic.
|
| Display Type |
1 x 0,55" DDR DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1900 |
Screen |
633 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,9500 min. Lumen |
0,317 min. Lumen |
| Offset |
65% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

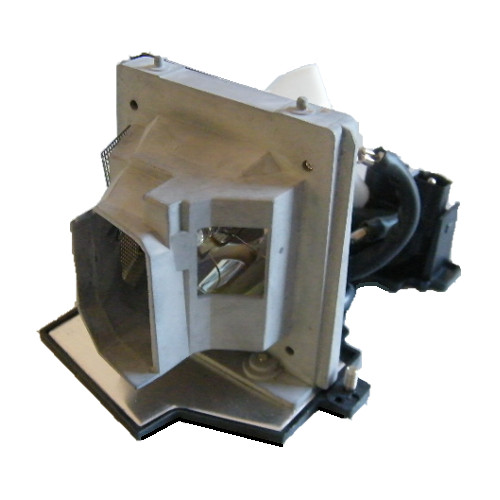

200W UHP Lamp
Article Nr.: RLC-012
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
|
|
386 - 426 cm
|
 |
|
Lux: |
633 Lux |
|
Room light max.: |
127 Lux |
|
Candela pro m²: |
202 cd/m² |
|
Foot-Lamberts: |
59 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=1,1-2,7 f=21,81-23,77 mm |
| Throw Ratio |
1,93-2,13:1 show |
| Audio |
1 x 2W |
| Connections |
D-sub 15pin in
Cinch Video in
S-Video in
Mini Jack
USB
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250W |
| Size WxHxD |
237,5 x 96,5 x 210,5 mm (9,4"x3,8"x8,3") 4,78 L/dm³
|
| Operating Noise |
37 / 30 dB in Eco Mode |
|
| Weight |
2,05 kg / 4,52 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 31,5-80 kHz
V-sync: 56-85 Hz
|
| Foot-Lamberts |
59 fL
/ max. 380 cm screen width |
| Candela m² |
202 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Gamma correction
Overscan adjustable
De-interlacer with 3:2 pull down
|
|
- |
In Comparison
The Viewsonic PJ406D compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
22 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
31 |
| Black level: |
|
96 |
Power cons.: |
|
98 |
| Picture Total Points: | 40 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
1249 (From: 7662) |
|
|
|
| In Test
|
-
|
|
|
| Status |
2005 Discontinued (EOL) // Last update of the data: 2023-08-04
|
