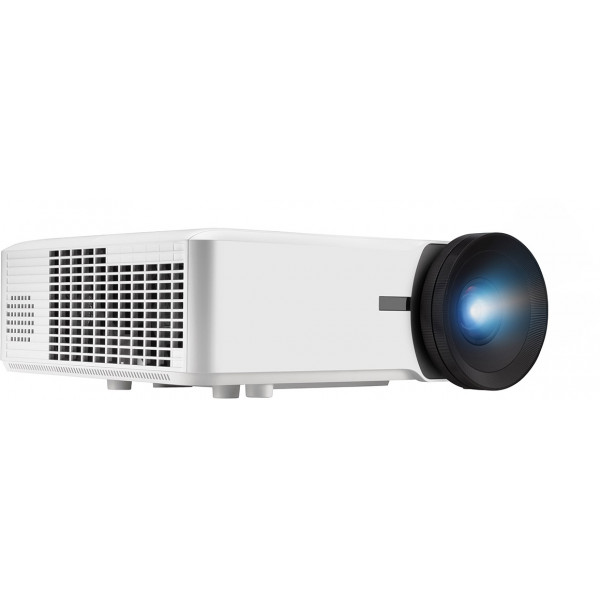

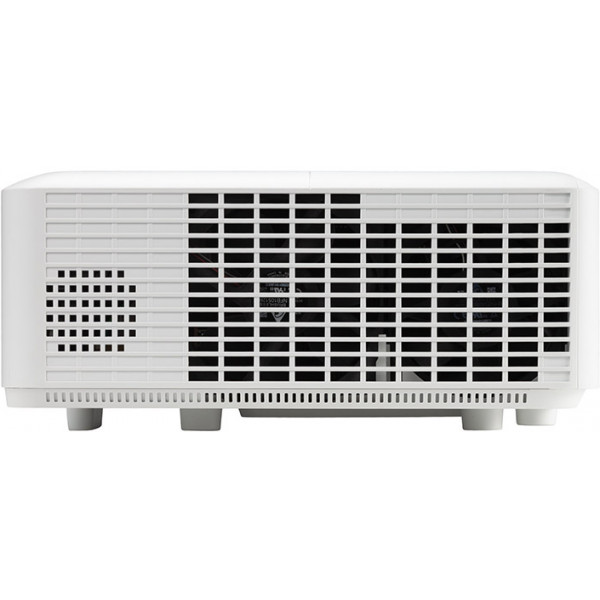

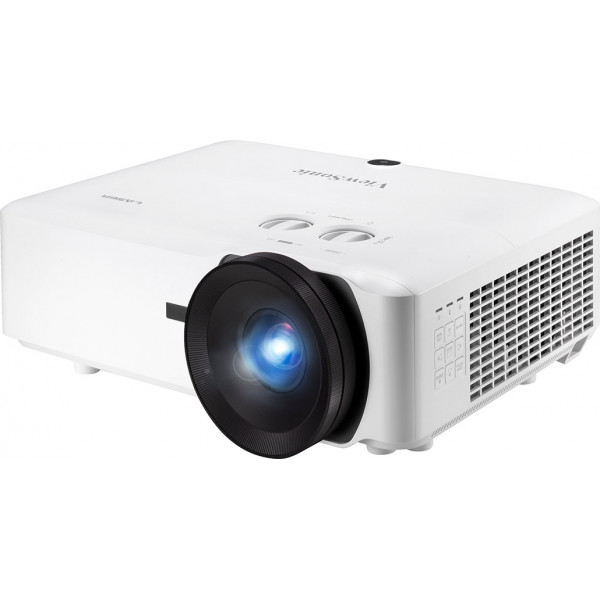

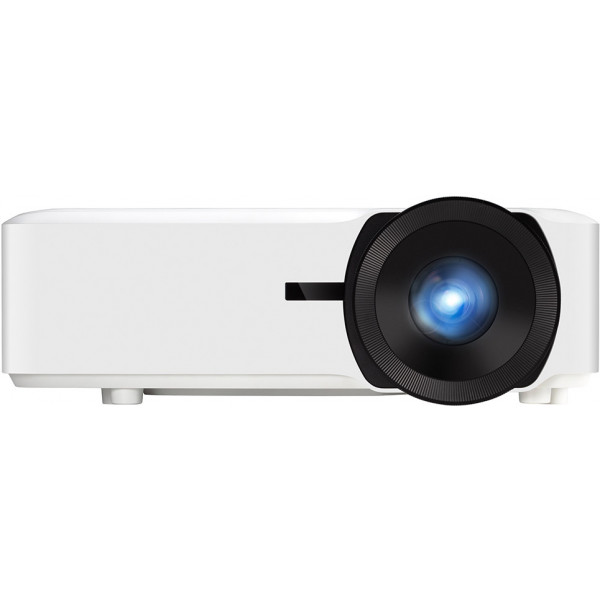

Viewsonic LS860WU
EAN/UPC:76690700305 5
Image Viewsonic LS860WU
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Equipped with DLP technology, the Viewsonic LS860WU offers 5000 ANSI lumens, a contrast of 3000000:1 and is designed as a versatile projector.
Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment; exact values can be calculated using the Projector Calculator.
A look at the light output reveals: The 5000 ANSI lumens are sufficient to illuminate an image width of up to 718 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 479 cm.
Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D, and also offers the technical capability for 360° projection. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances.
This model dates back to 2020 and is no longer part of Viewsonic's current product range.
Display Type       1 x 0,48" DLP Chip
      WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 5000
Screen
 2222 Lux (200 cm Screen width)
Contrast 3000000:1 3000000:1
Black Level 0,0017 min. Lumen 0,001 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-23%
 Lens shift
 		50%  56cm
50%  56cm
23%  46cm
23%  46cm
+ Projector
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source Laser Phosphor
Order Accessories
27,07 €
Light Life -
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
162 - 178 cm
Lux: 2222 Lux
Contrast: 3000000:1
Candela pro m²: 706 cd/m²
Foot-Lamberts: 206 fL
56 cm

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,1
Objective F=1,83-1,86 f=9,6-9,4 mm
Throw Ratio 0,81-0,89:1 show
Audio 2 x 10W

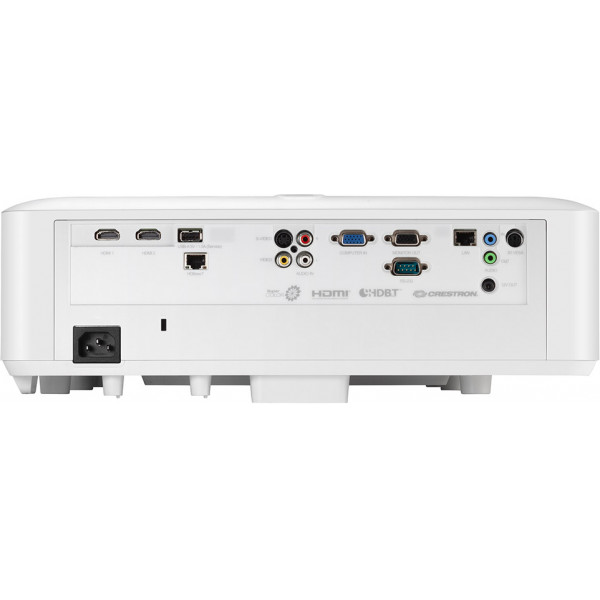

Connections 2 x HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
HDBaseT in
Ceiling Mounting Yes, is possible.
Power 430W
Size WxHxD 405 x 145 x 305 mm (15,9"x5,7"x12") 17,91 L/dm³
Operating Noise 36 / 29 dB in Eco Mode
Key: 136 cm
Shift: 56 cm
Key: 136 cm
Shift: 46 cm
Key: 136 cm
Shift: 46 cm
Key: 136 cm
Shift: 56 cm
Weight 6,60 kg / 14,55 lbs.
Keystone Vert.: +/-40°
Hori.: +/-40°
Illumination -
Frequenz H-sync: 15-102 kHz
V-sync: 23-120 Hz
Foot-Lamberts 206 fL / max. 718 cm screen width
Candela m² 706 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
360° installable
24/7 continuous operation capable

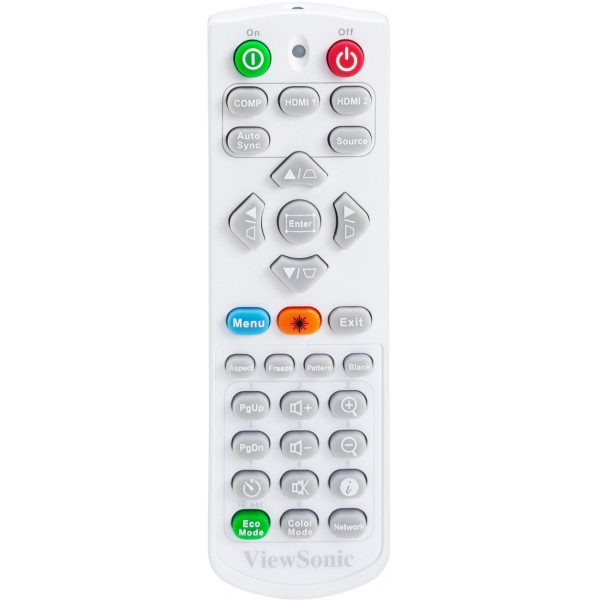

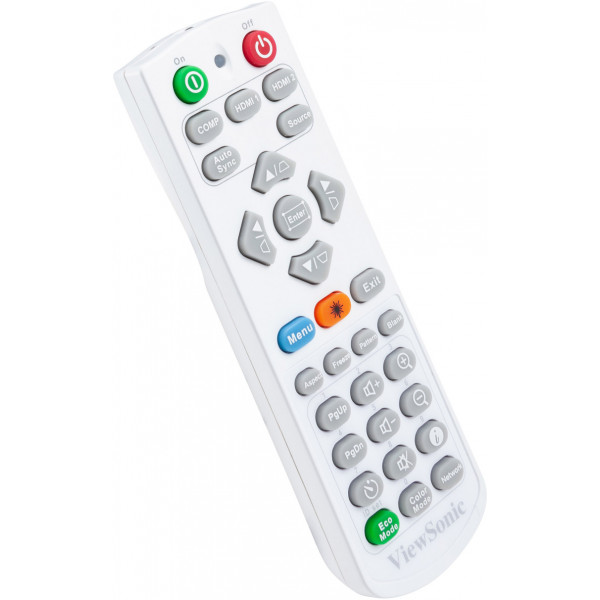

Remote control with laser pointer
PJLink™
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Viewsonic LS860WU compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
71 Weight:
20
Contrast:
60 dB:
62
Black level:
100 Power cons.:
8
Picture Total Points:77 Projector Total Points:30
Popularity Top 100
1 popularity points 15 popularity points 11 popularity points 1 popularity points 2 popularity points 6 popularity points
Points:
6
Ranking: 1307 (From: 7737)
Optional accessories
remote control OriginalA-00010294 / 5F.262J3.09327,07 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2020 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Viewsonic Website
Product Sheet english HC
Quick Start Guide
User Manual english (8.23 MB)
